Chevy Truck
>>
2006
>>
Express 2500 V8-6.6L DSL Turbo VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
Electronic Brake Control Module (EBCM) - JL4

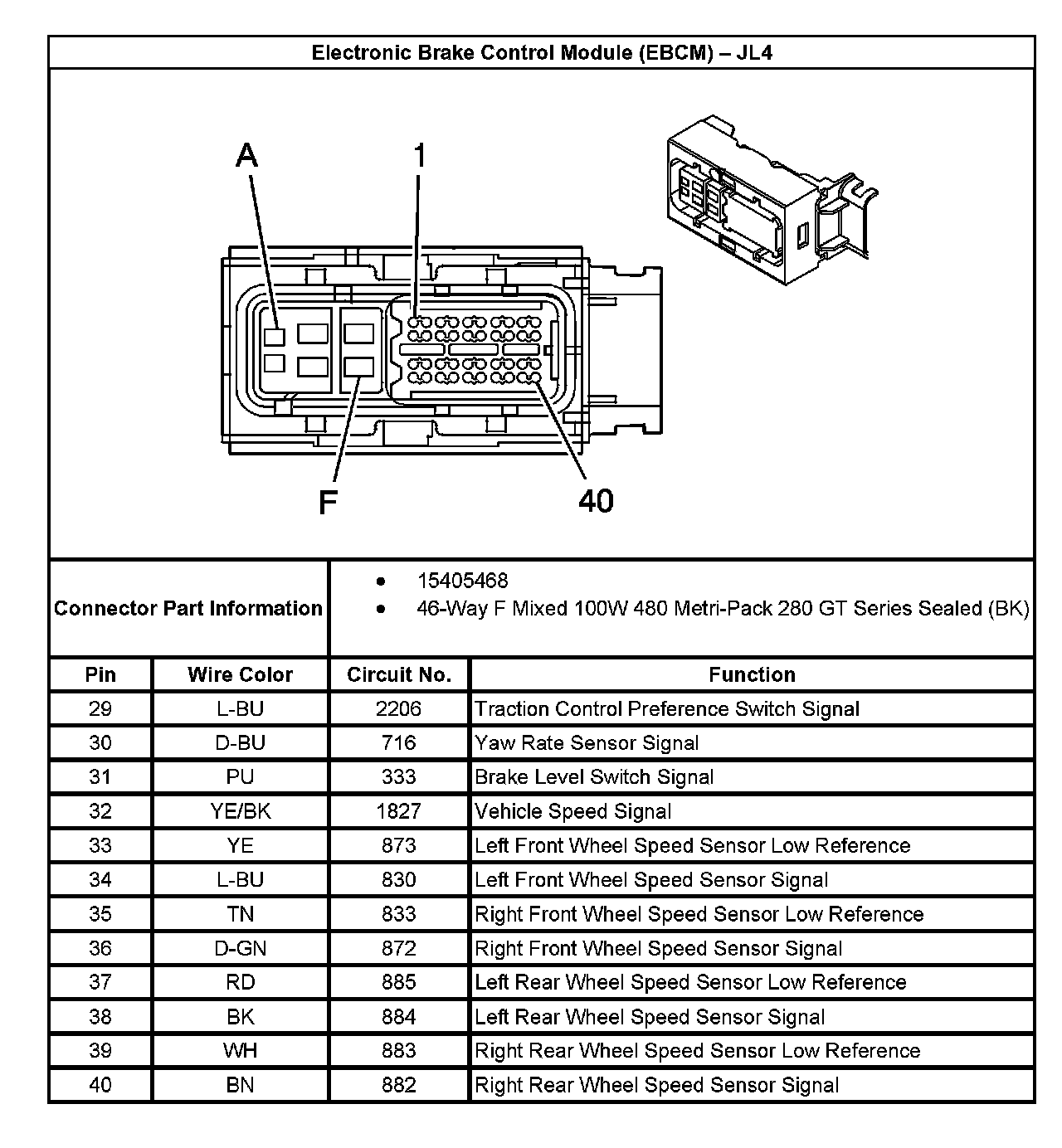

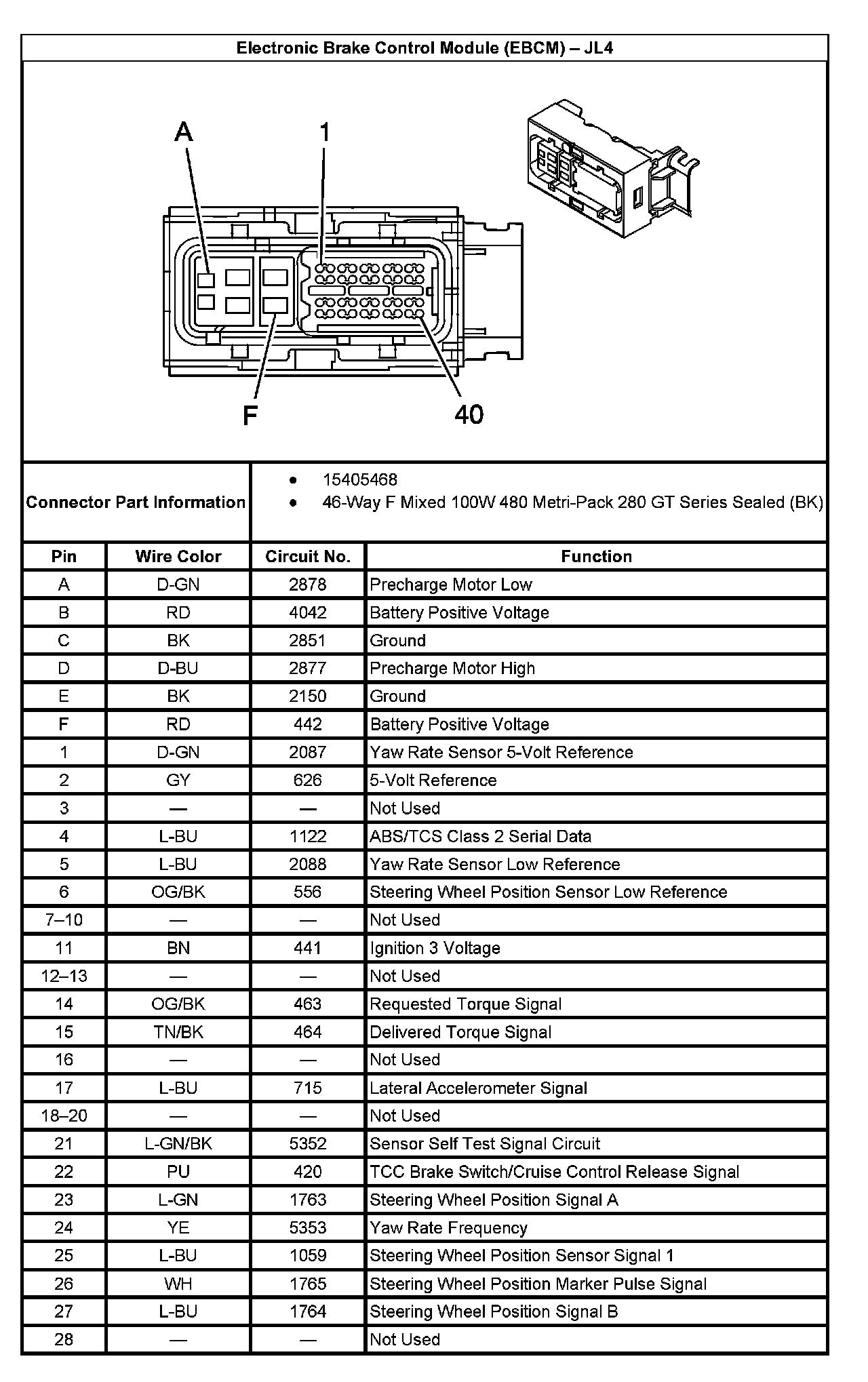

Electronic Brake Control Module (EBCM) - JL4
Electronic Brake Control Module (EBCM) - JL4:
Electronic Brake Control Module (EBCM) - JL4:
