Chevy Truck
>>
2006
>>
Express 1500 RWD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Dome Lamp
>>
Dome Lamp Relay
Dome Lamp Relay

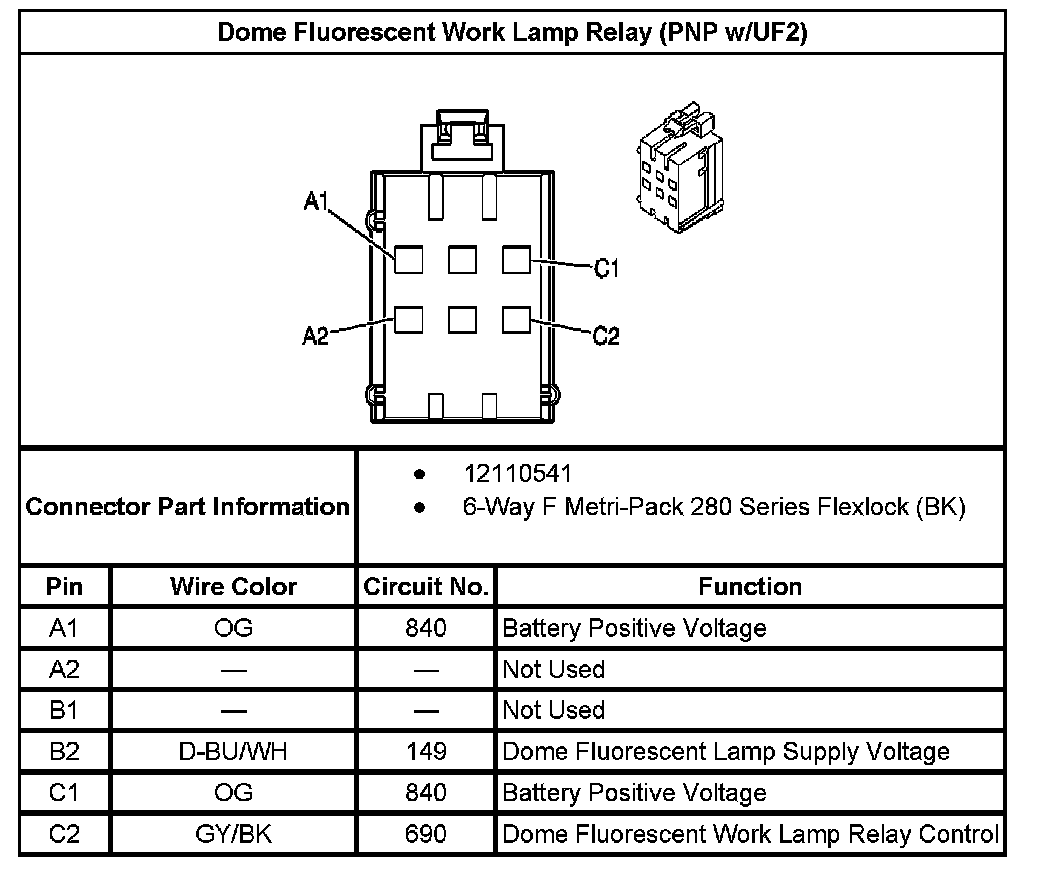

Dome Fluorescent Work Lamps Relay (PNP With RPO Code UF2):
