Front Drive Axle

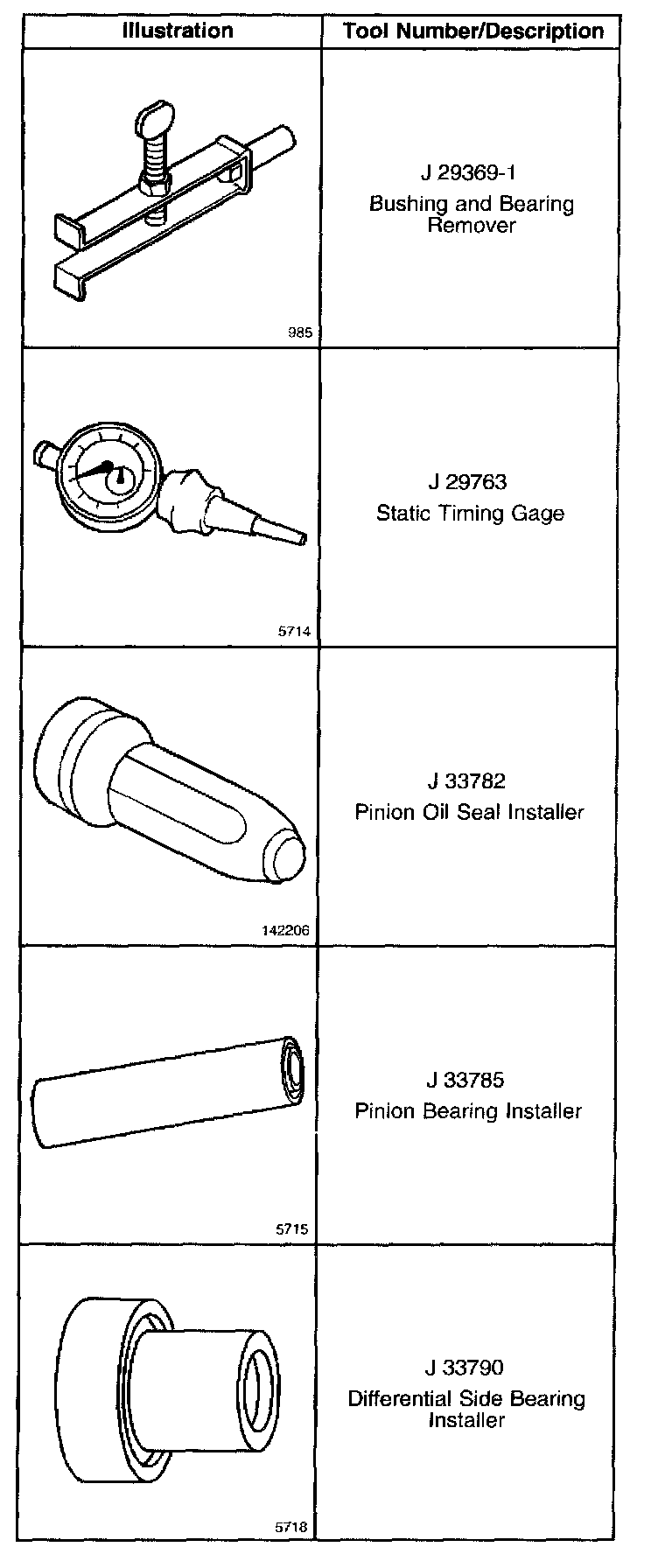

Special Tools And Equipment, Part 1:

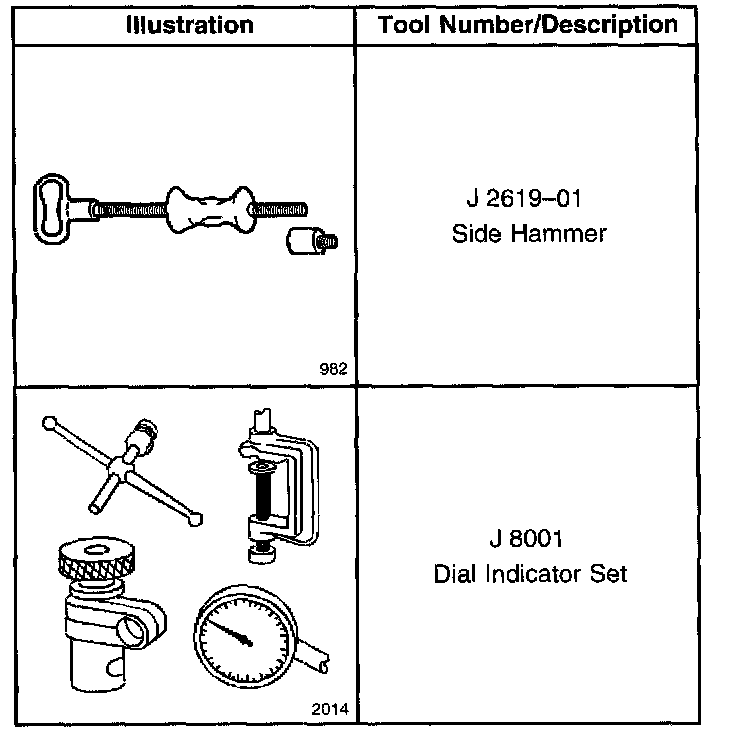

Special Tools And Equipment, Part 2:

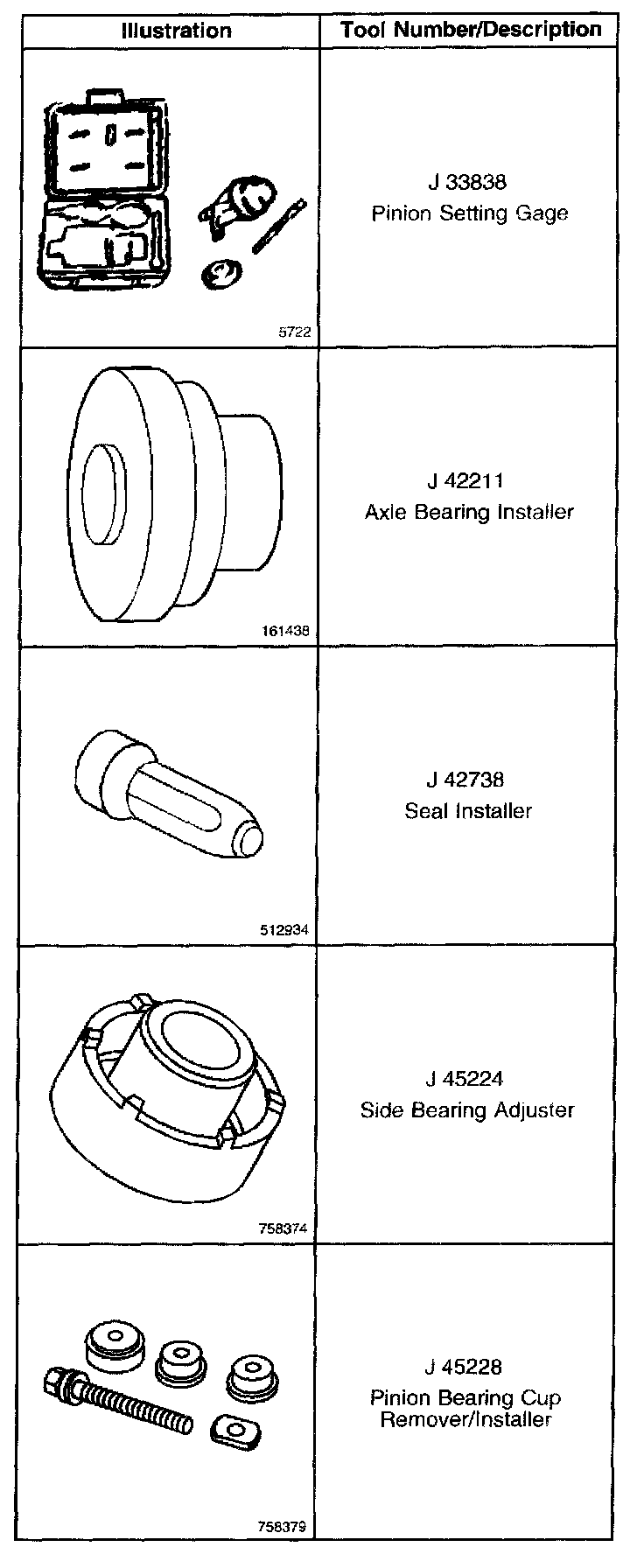

Special Tools And Equipment, Part 3:

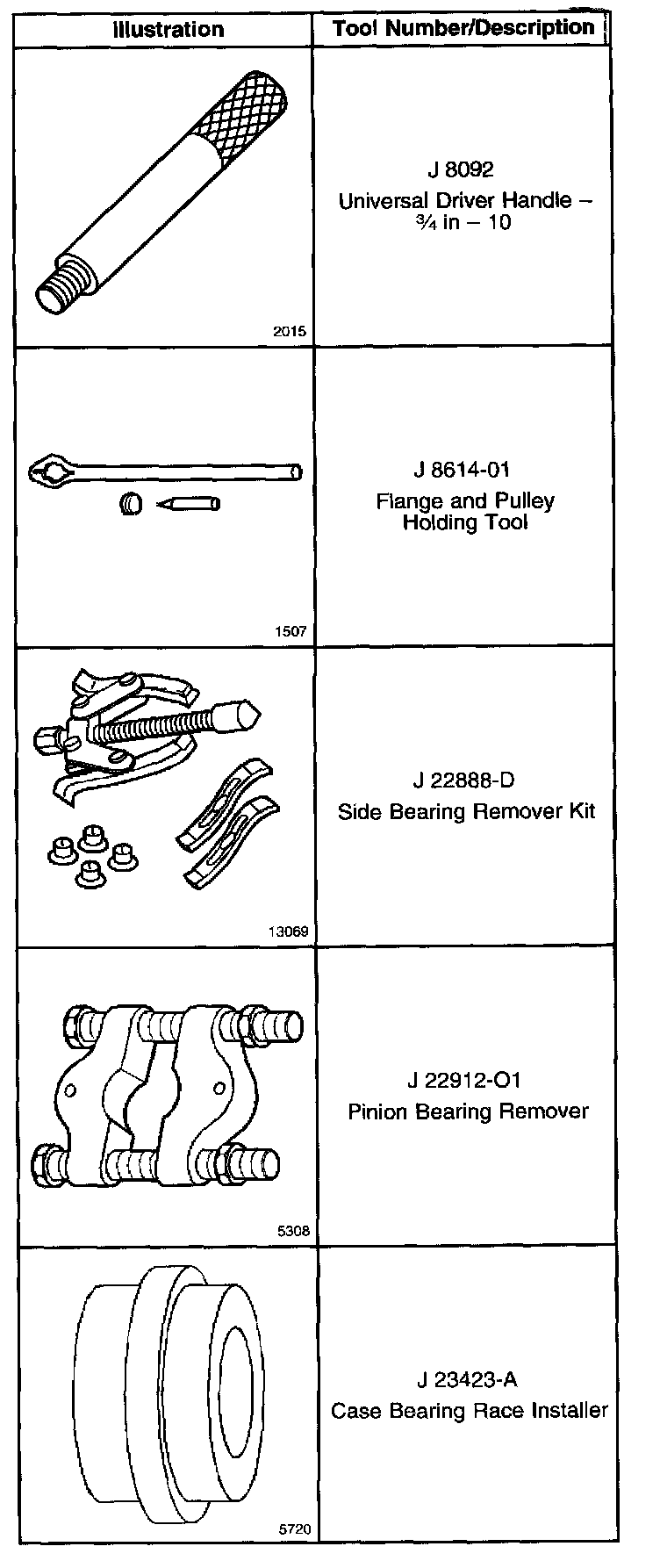

Special Tools And Equipment, Part 4:

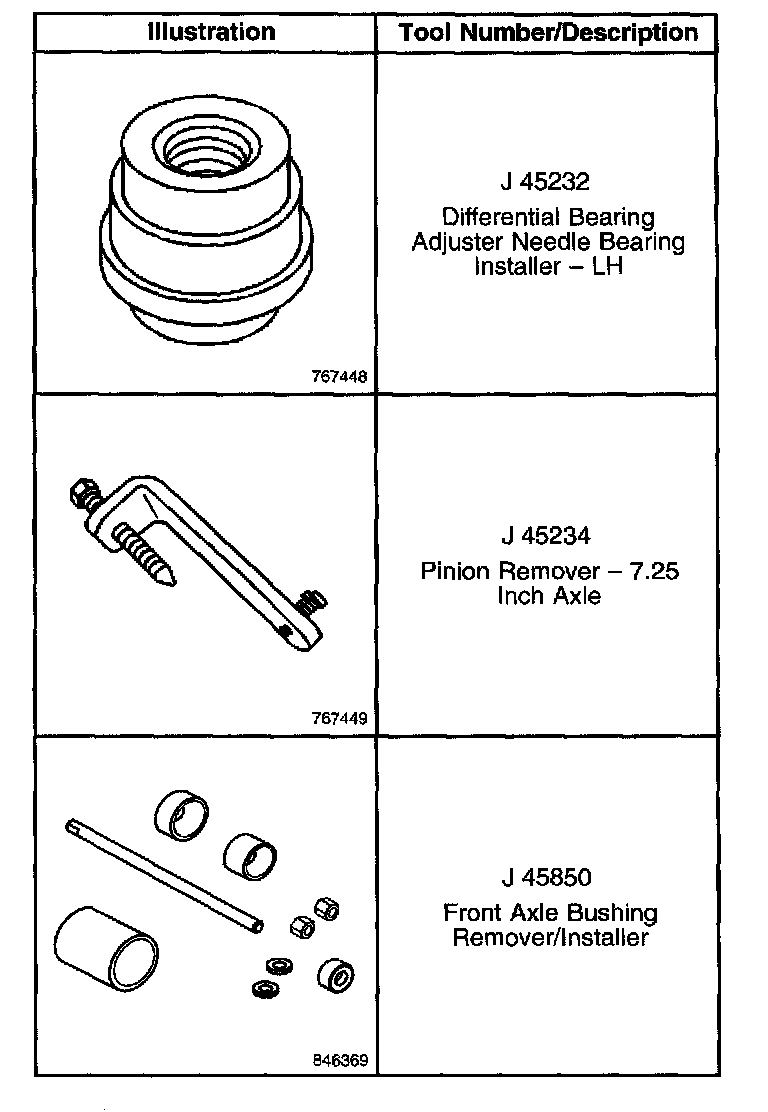

Special Tools And Equipment, Part 5:
