Driver Seat Diagrams

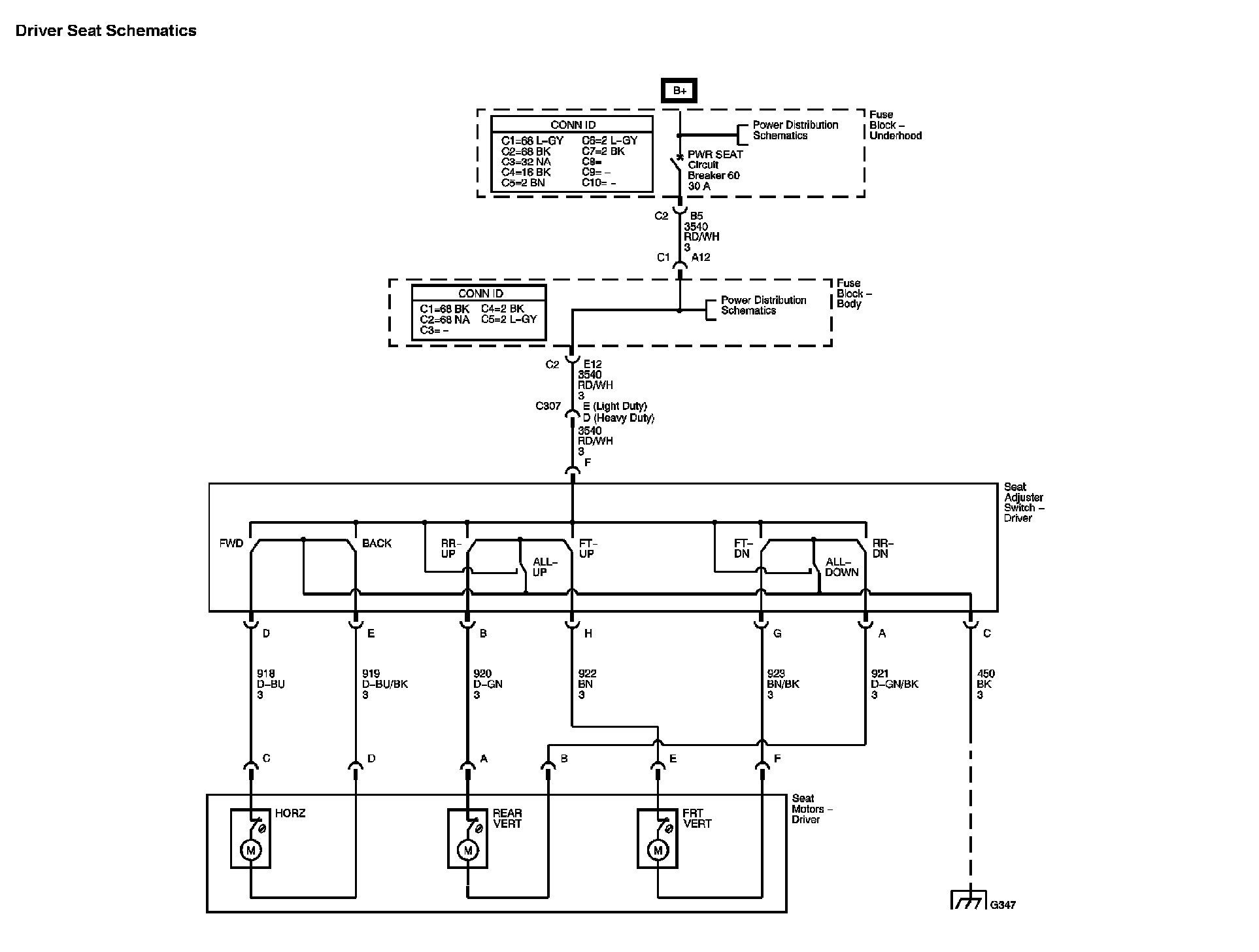

Driver Seat Diagram:

Locations: The locations of the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
