Express 1500 AWD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Master Splice List
Master Splice List

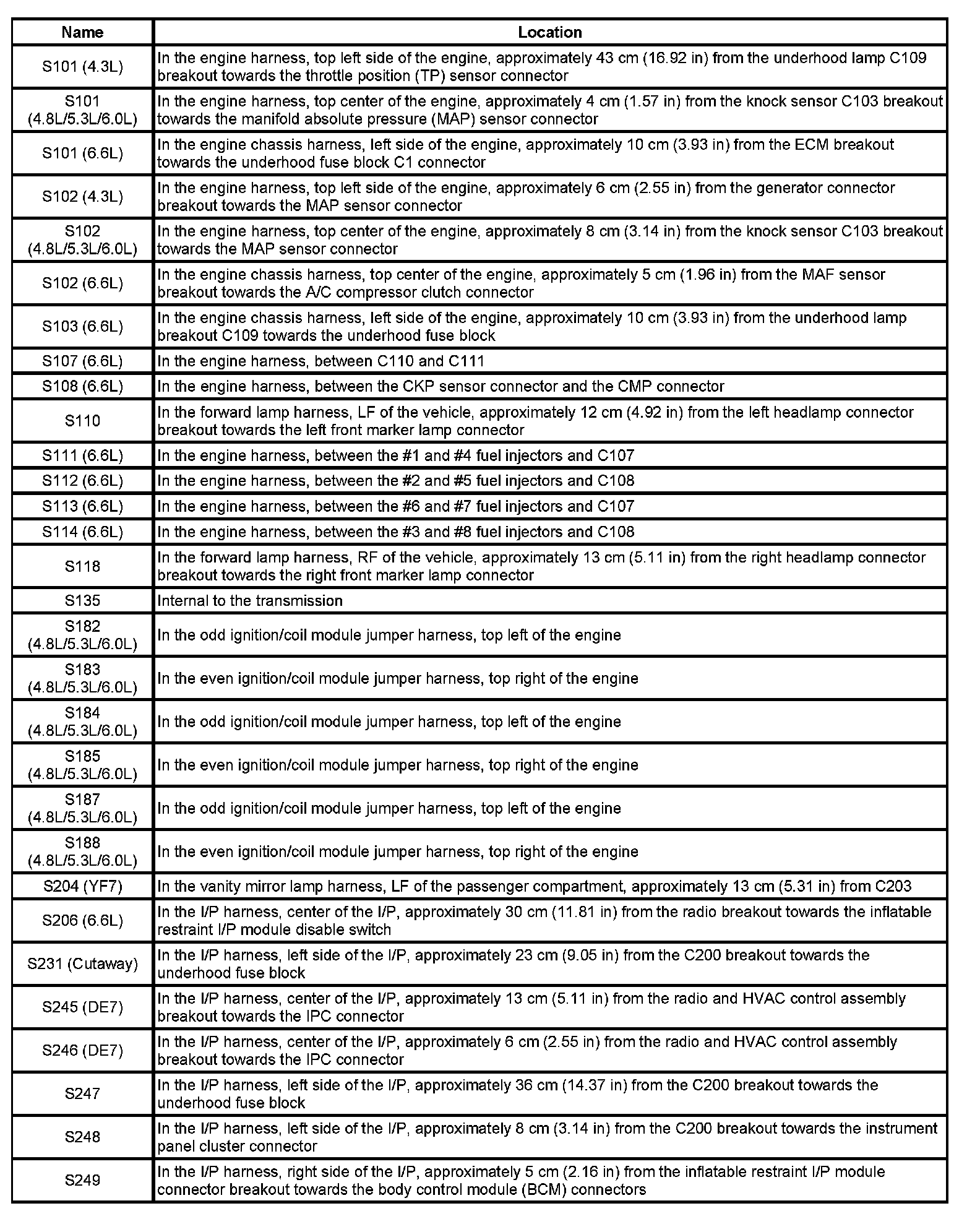

S101 - S249:

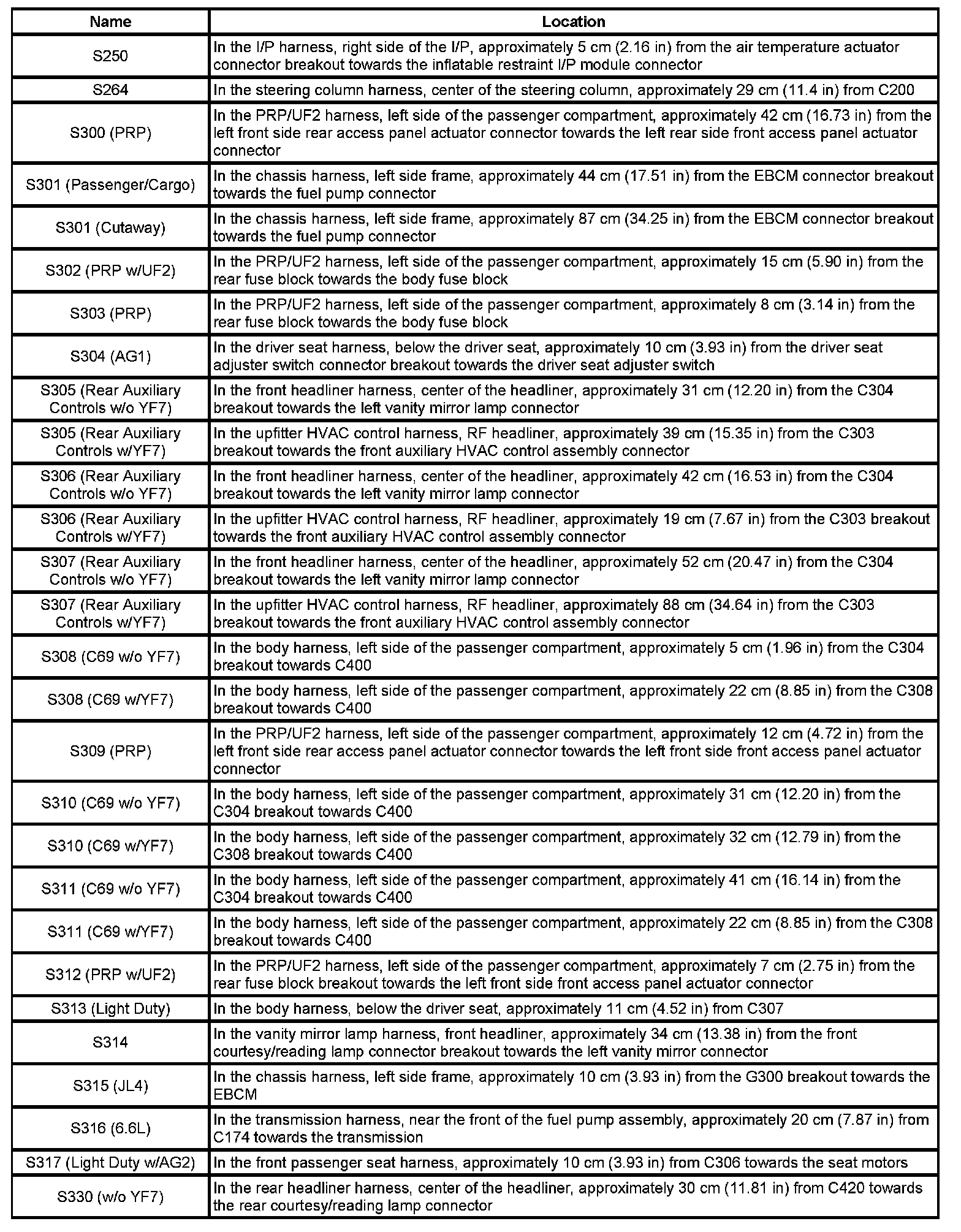

S250 - S330:

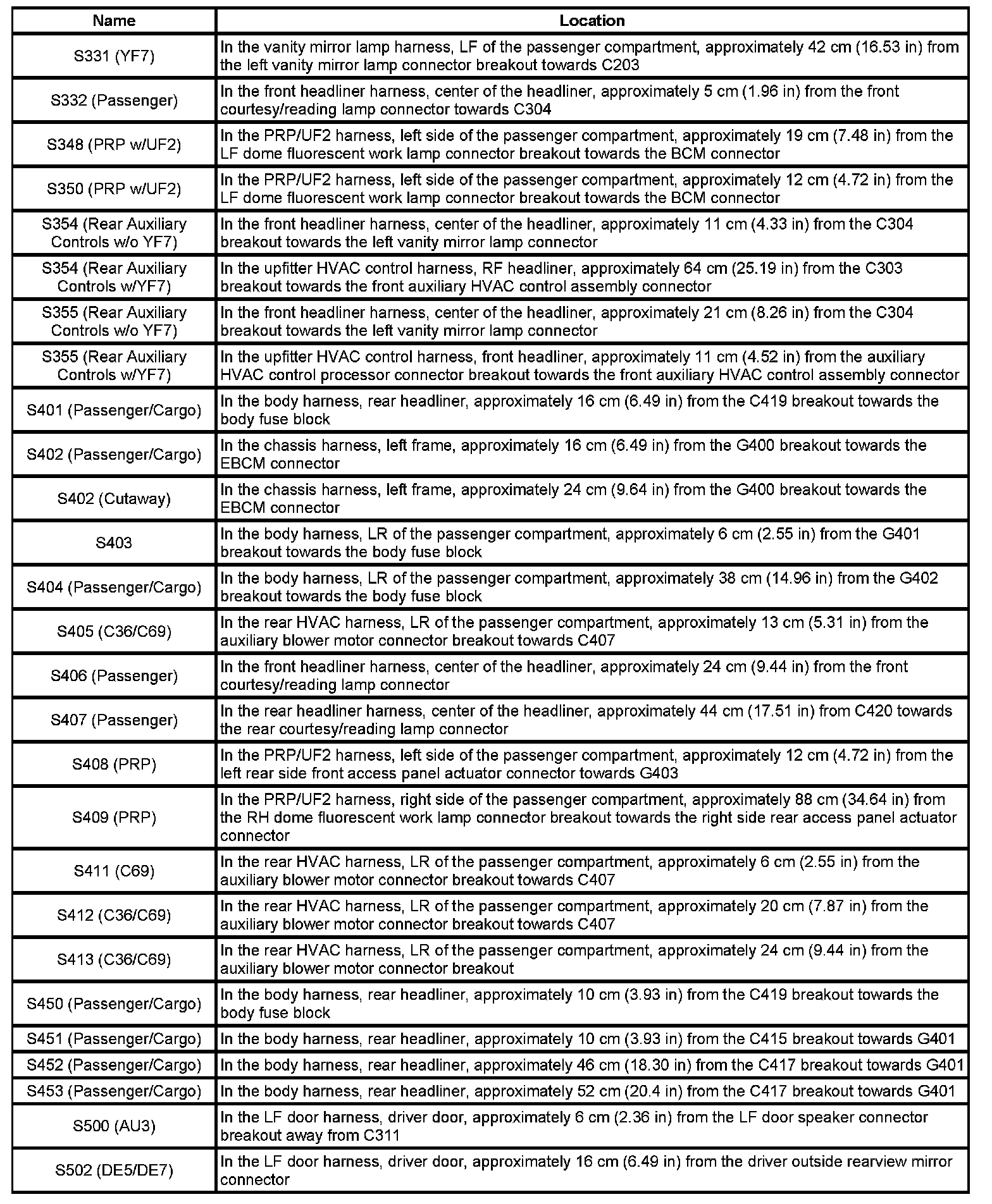

S331 - S502:

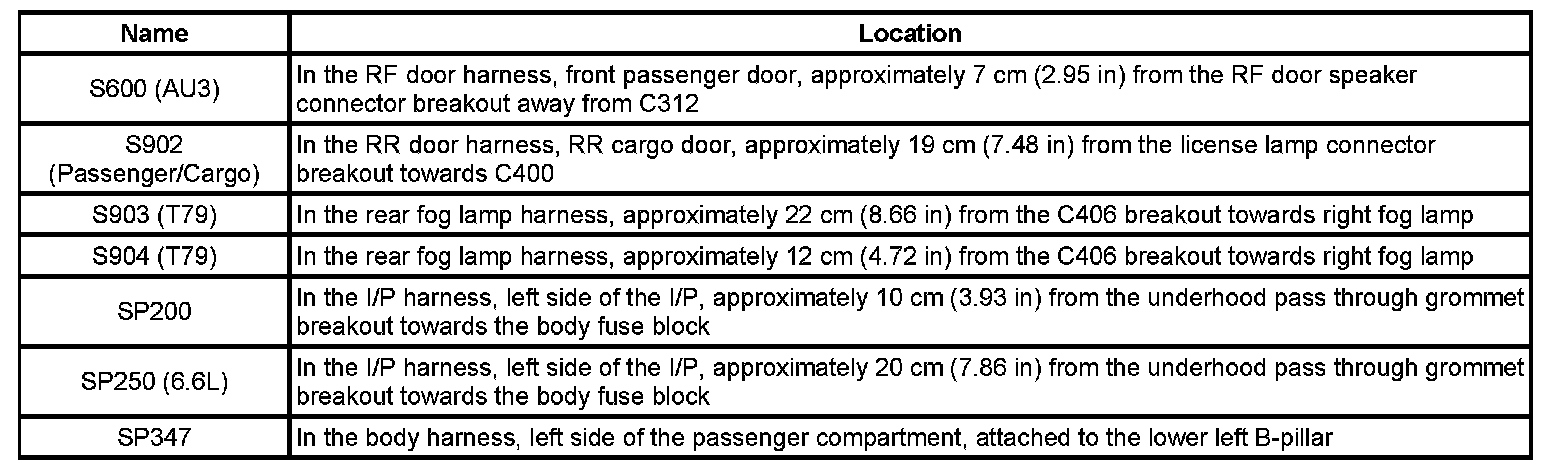

S600 - SP347:
