Chevy Truck
>>
2006
>>
Express 1500 AWD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C400 - C499
>>
C413
C413

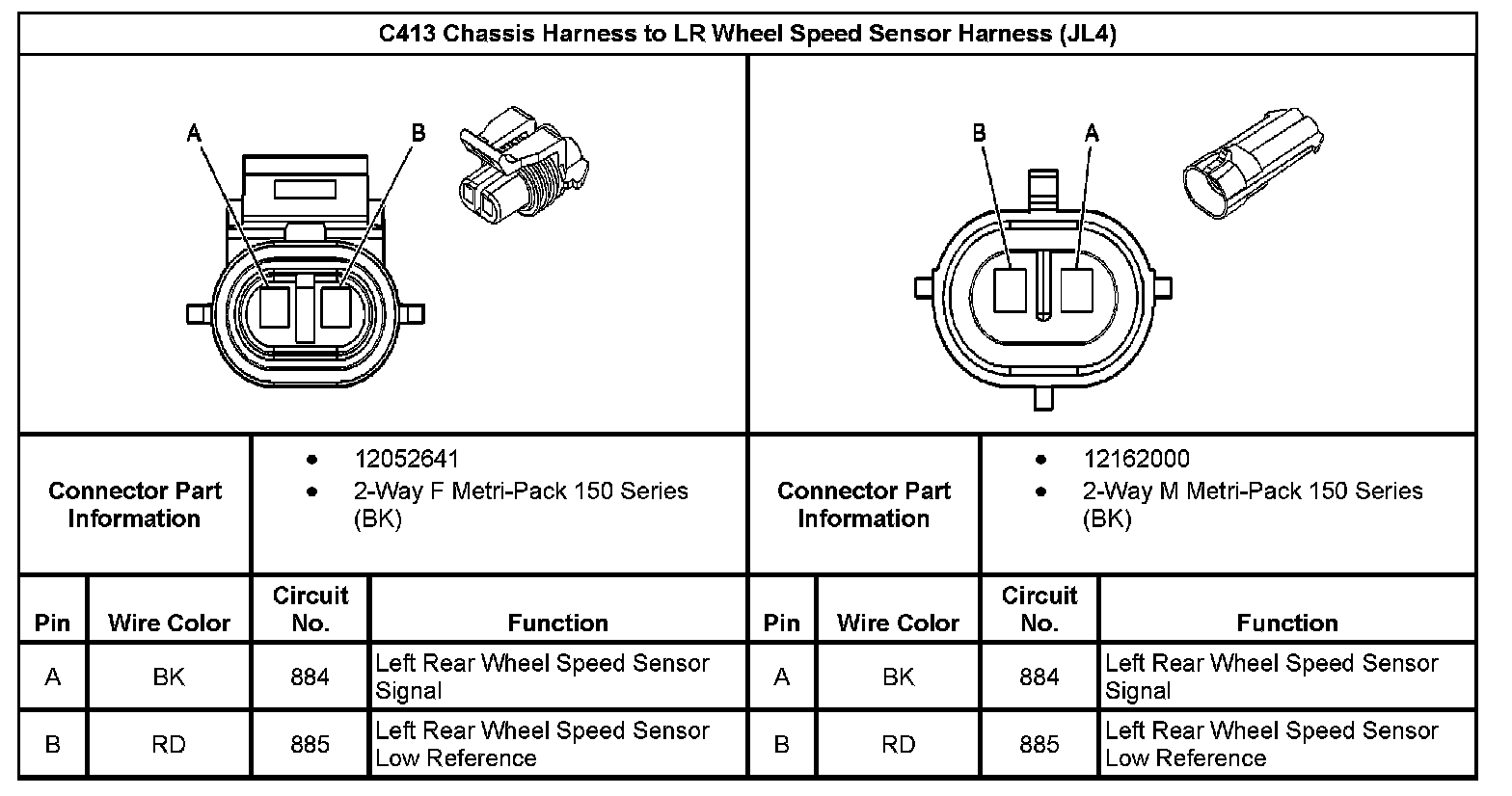

C413 Chassis Harness to LR Wheel Speed Sensor Harness (With RPO Code JL4):
