C311

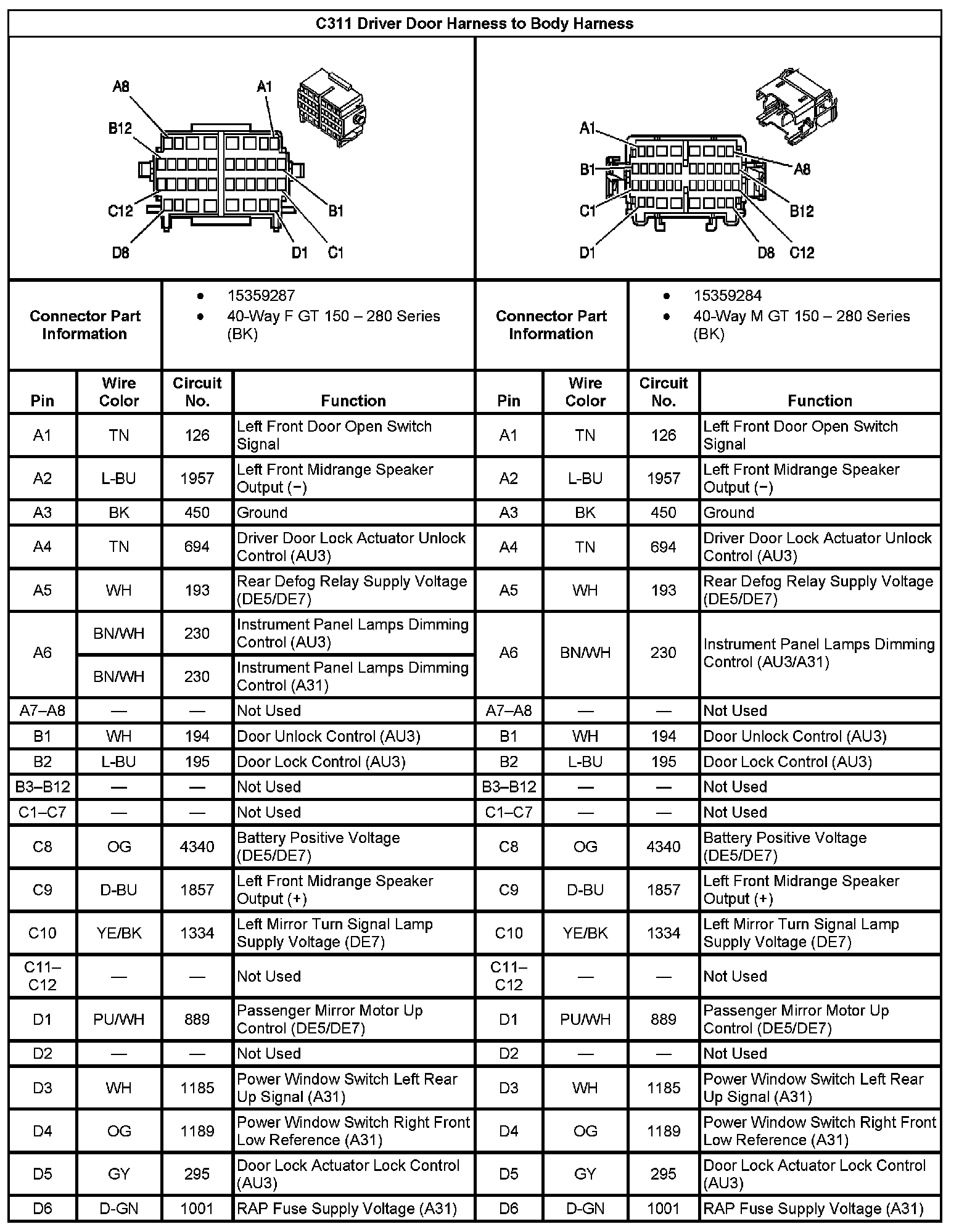

C311 Driver Door Harness to Body Harness (Part 1):

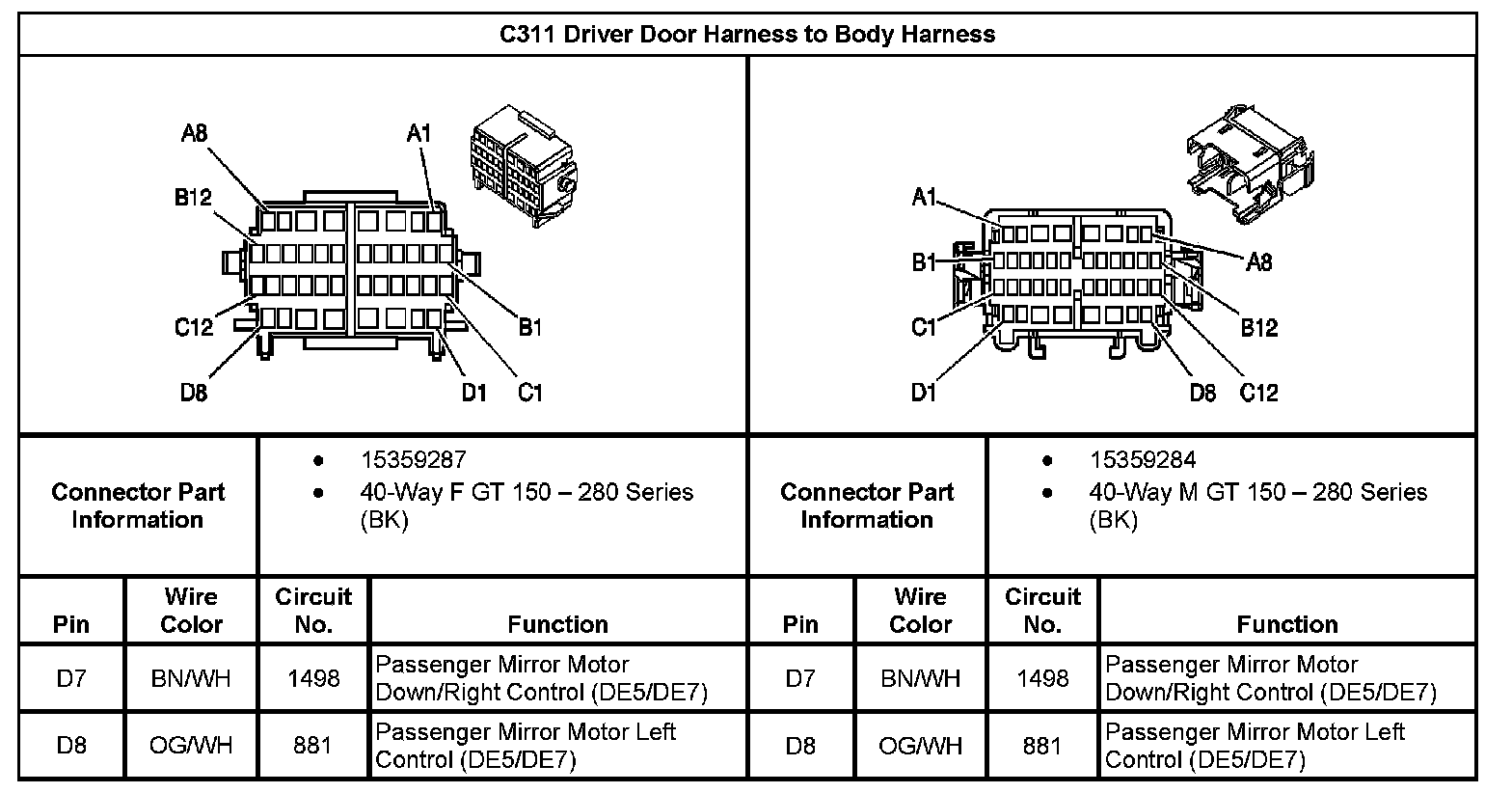

C311 Driver Door Harness to Body Harness (Part 2):
