Multiple Junction Connector
>>
C100 - C199
>>
C175
C175

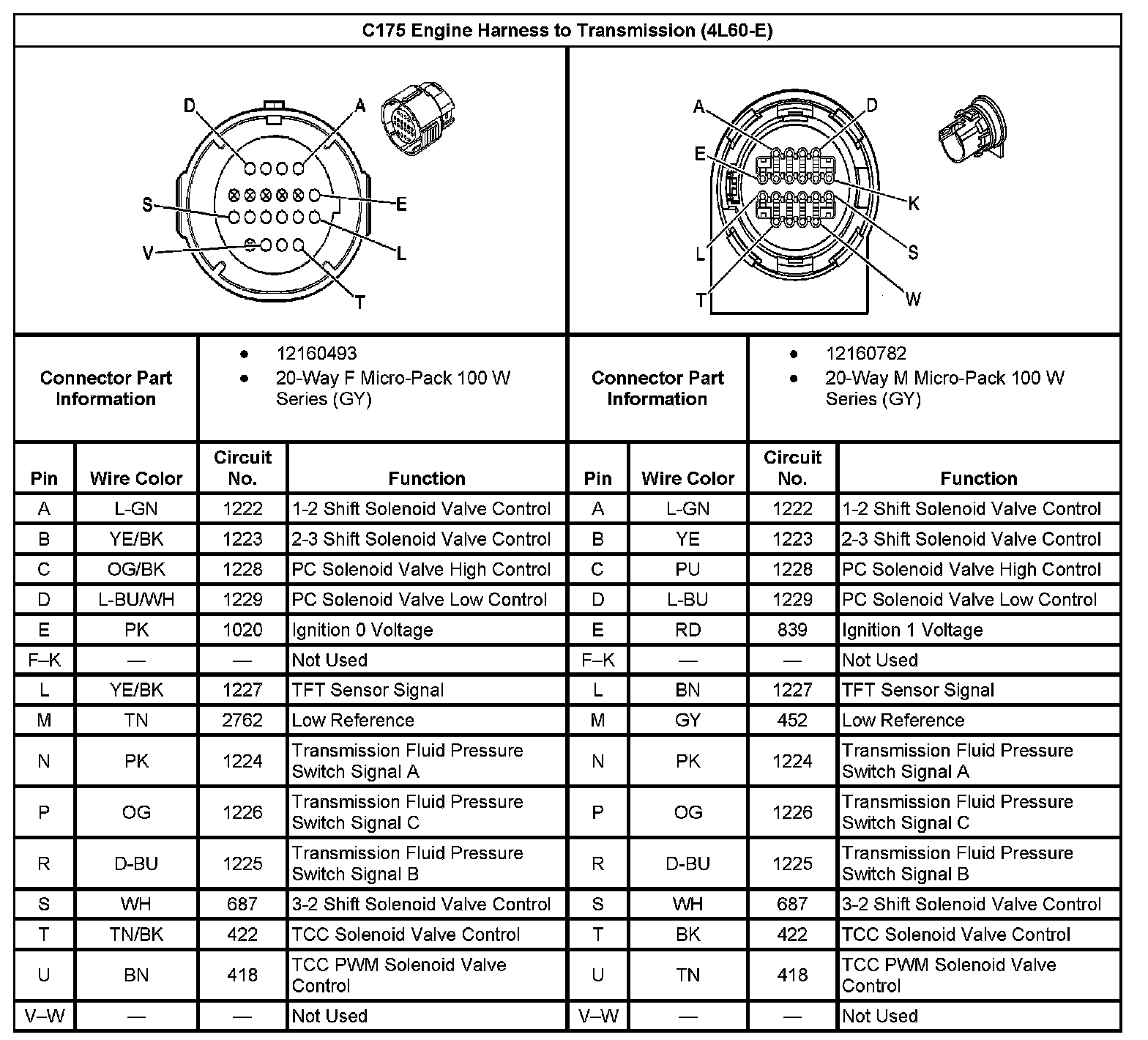

C175 Engine Harness to Transmission (4L60-E):
