Chevy Truck
>>
2006
>>
Express 1500 AWD V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector
>>

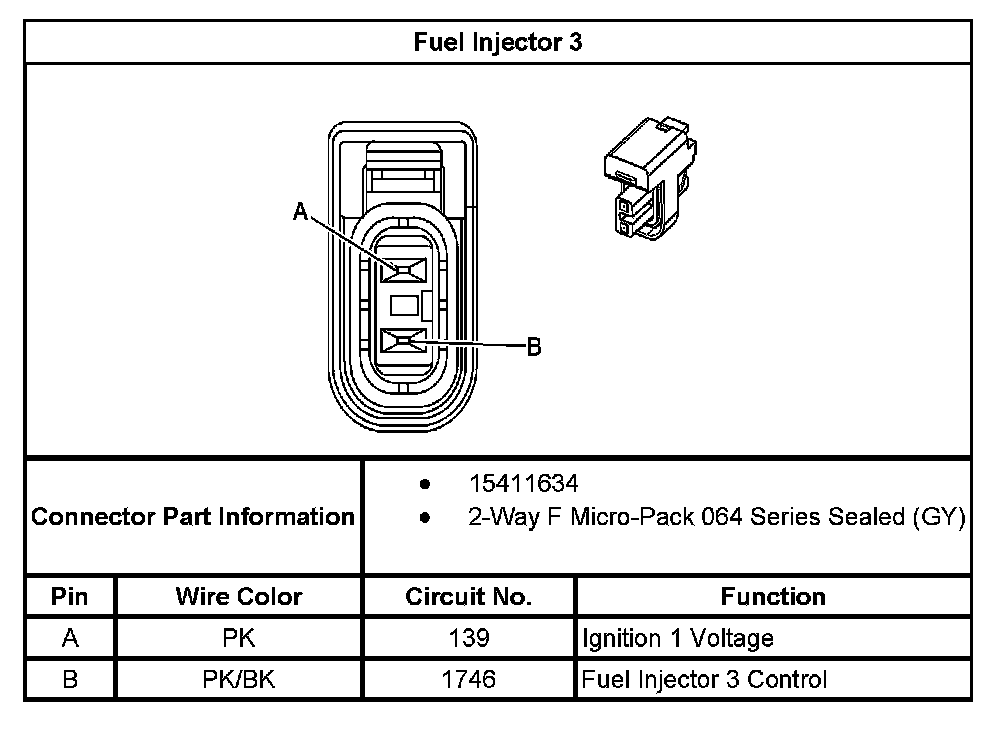

Fuel Injector 3
Fuel Injector 3
Fuel Injector 3:
