Auxiliary Cabin Heater Fuel Pump
Auxiliary Cabin Heater Fuel Pump

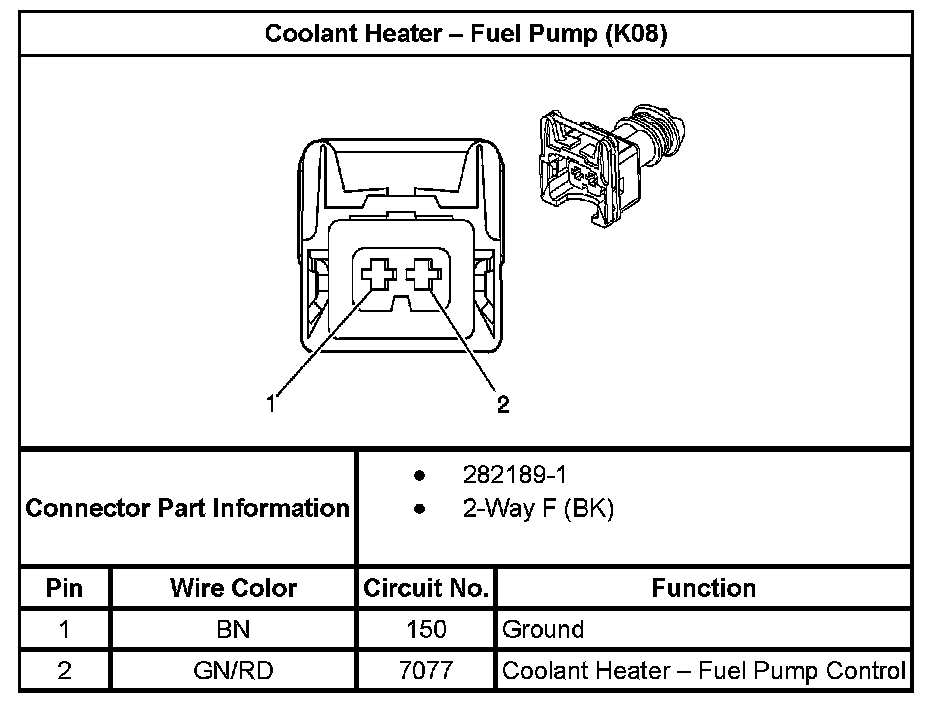

Coolant Heater - Fuel Pump (With RPO Code K08):
