Wedge Replacement - Rear Door

Wedge Replacement - Rear Door

Removal Procedure

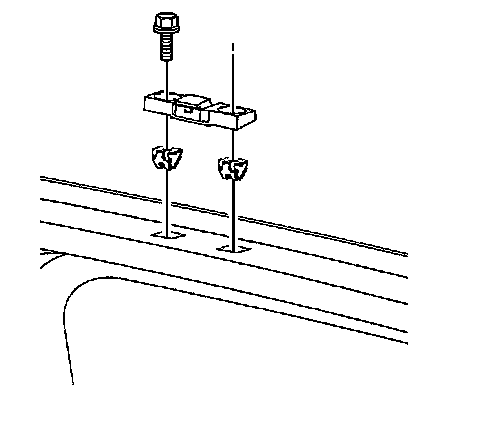

1. Remove the bolts that retain the rear door wedge to the door.
2. Remove the rear door wedge from the door.

Installation Procedure




1. Install the rear door wedge to the door.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the rear door wedge bolts in order to retain the rear door wedge to the door.

Tighten the rear door wedge bolts to 10 N.m (89 lb in).
