54. Front Carrier Sun Gear Assembly Installation

Front Carrier Sun Gear Assembly Installation





Important:
Make sure that the front internal gear thrust bearing assembly (529) is installed with the correct side up.

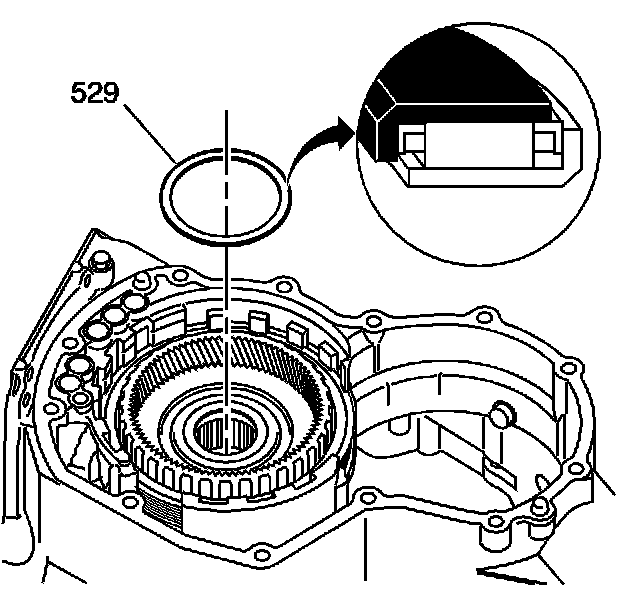

1. Install the front internal gear thrust bearing assembly (529) - black side up.

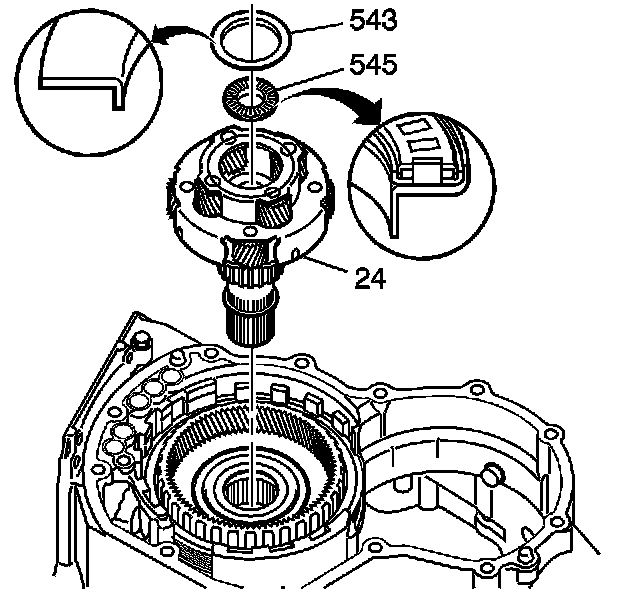

2. Install the front carrier and sun gear assembly (24).
3. Install the front sun gear thrust bearing (545) and the front sun gear thrust bearing race (543).
