52. Front Carrier Sun Gear Assembly Disassemble

Front Carrier Sun Gear Assembly Disassemble

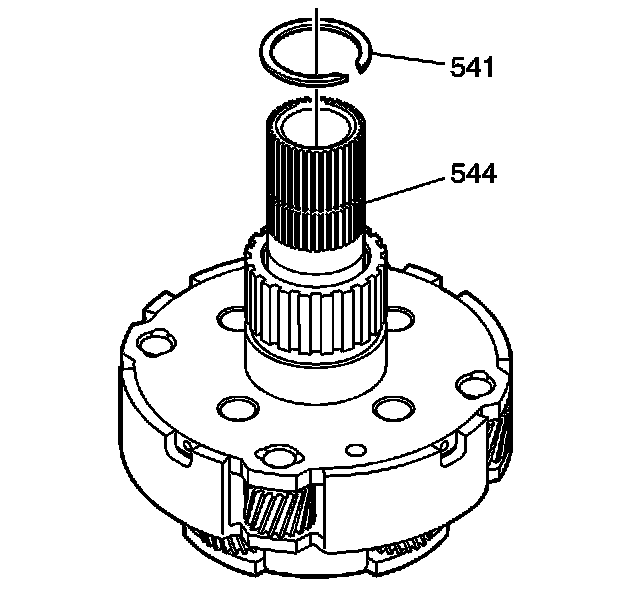

1. Remove the front sun gear retaining ring (541) from the front sun gear assembly (544).

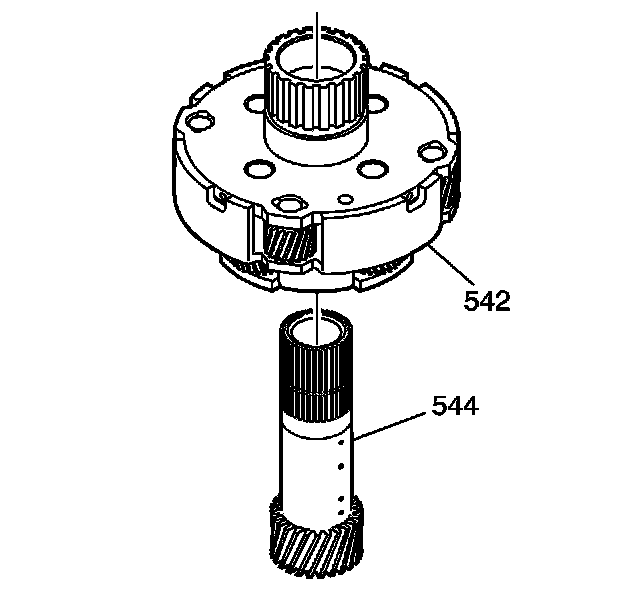

2. Remove the front sun gear (544) from the front carrier assembly (542).

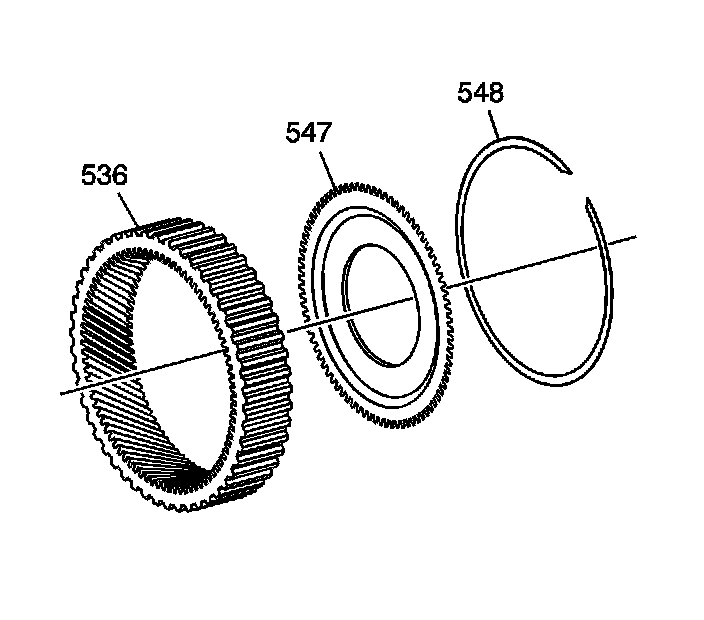

3. Remove the rear internal gear flange retaining ring (548) from the rear internal gear (536).
4. Remove the rear internal gear flange (547) from the rear internal gear.
