21. Third Gear Band Assembly Removal

Third Gear Band Assembly Removal

^ Tools Required
- DT-47599 Anchor Bolt Socket





1. Using the DT-47599 remove the third gear anchor bolt (64) with the O-ring seal (65).

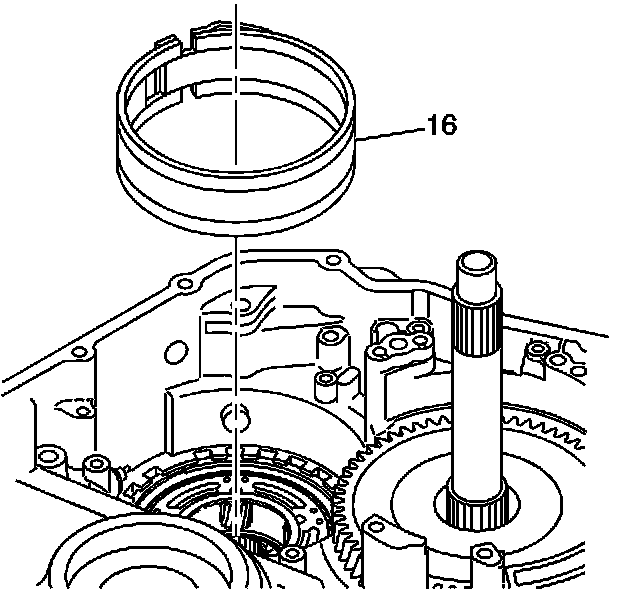

2. Remove the third gear band assembly (16) from the transmission case assembly.
