20. 4-5 Clutch Assembly Removal
20. 4-5 Clutch Assembly Removal
4-5 Clutch Assembly Removal

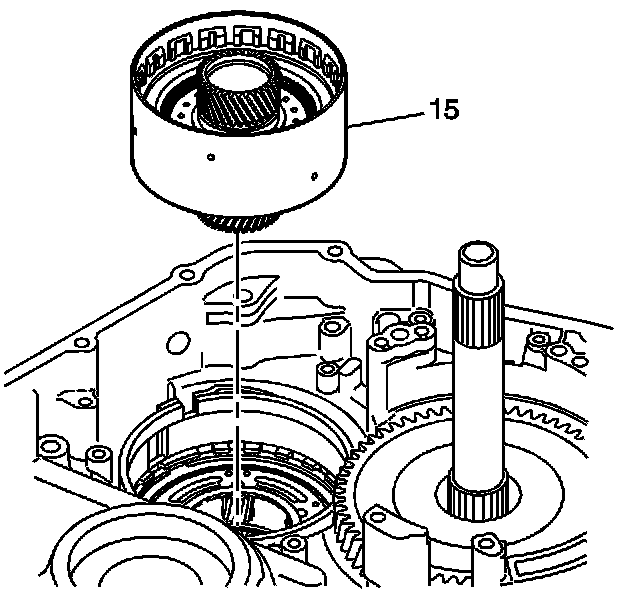

Remove the 4-5 clutch assembly (15) from the transmission case assembly.
