Left Front

SEAT BELT RETRACTOR PRETENSIONER REPLACEMENT - LEFT FRONT

REMOVAL PROCEDURE
1. Disable the SIR system. Refer to SIR Disabling and Enabling Zone 2.




2. Remove the front bucket seat.

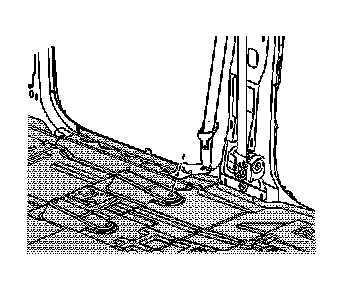

3. Remove the front seat belt anchor from the rear outboard stud.




4. Open the seat belt guide loop cover.

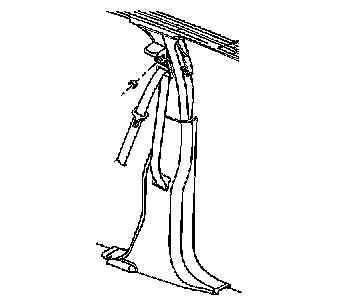

5. Remove the nut from seat belt guide loop.




6. Remove the seat belt guide loop from the guide adjuster bracket.




7. Remove the center pillar lower trim.

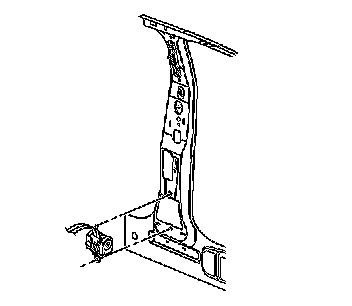

8. Remove the bolt from the seat belt retractor.




9. Remove the seat belt retractor from the center pillar.

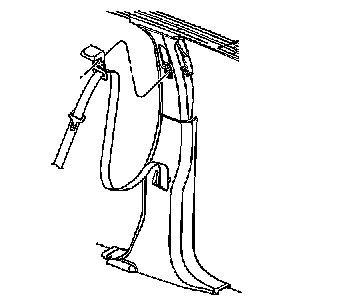

10. Remove the front seat belt from the vehicle.

INSTALLATION PROCEDURE

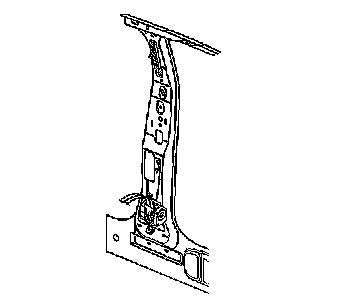

1. Install the seat belt retractor to the center pillar.




2. Install the bolt to the seat belt retractor.

Tighten the bolt to 42 N.m (31 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the center pillar lower trim.




4. Place the seat belt guide loop to the guide adjuster bracket.




5. Install the nut to the seat belt guide loop.

Tighten the nut to 42 N.m (31 lb ft).

6. Install the seat belt guide loop cover.




7. Place the seat belt anchor plate to the seat rear outboard stud.
8. Install the front bucket seat.
9. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 2.
