Center Mounted Brake Lamp: Service and Repair

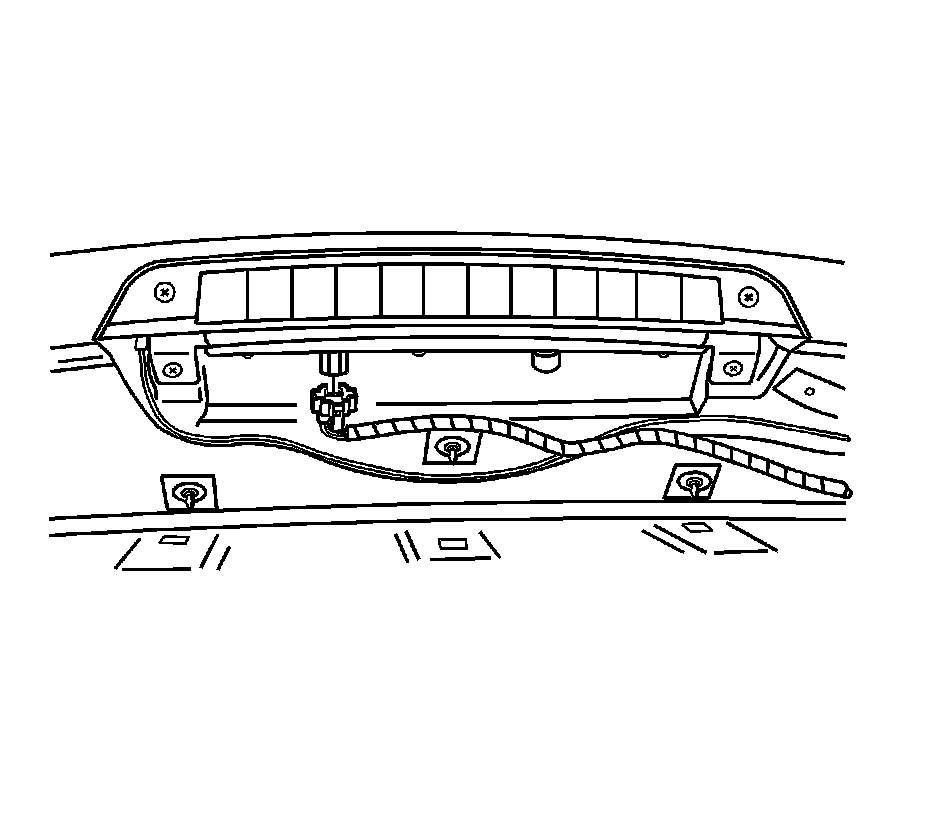

HIGH MOUNTED STOP LAMP REPLACEMENT

REMOVAL PROCEDURE
1. Remove the spoiler from the liftgate.




2. Remove the spoiler to high mounted stop lamp screws.
3. Disconnect the electrical connector.
4. Disconnect the washer hose.
5. Remove the stop lamp from the spoiler.

INSTALLATION PROCEDURE




1. Position the high mounted stop lamp to the spoiler.
2. Connect the washer hose.
3. Connect the electrical connector.
4. Install the spoiler to the high mounted stop lamp screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the screws to 2 N.m (18 lb in).
5. Install the spoiler to the liftgate.
