Defogger Outlet Duct - Side Window, LH

DEFOGGER OUTLET DUCT REPLACEMENT - SIDE WINDOW, LH

REMOVAL PROCEDURE
1. Remove the instrument panel (I/P) upper trim panel.

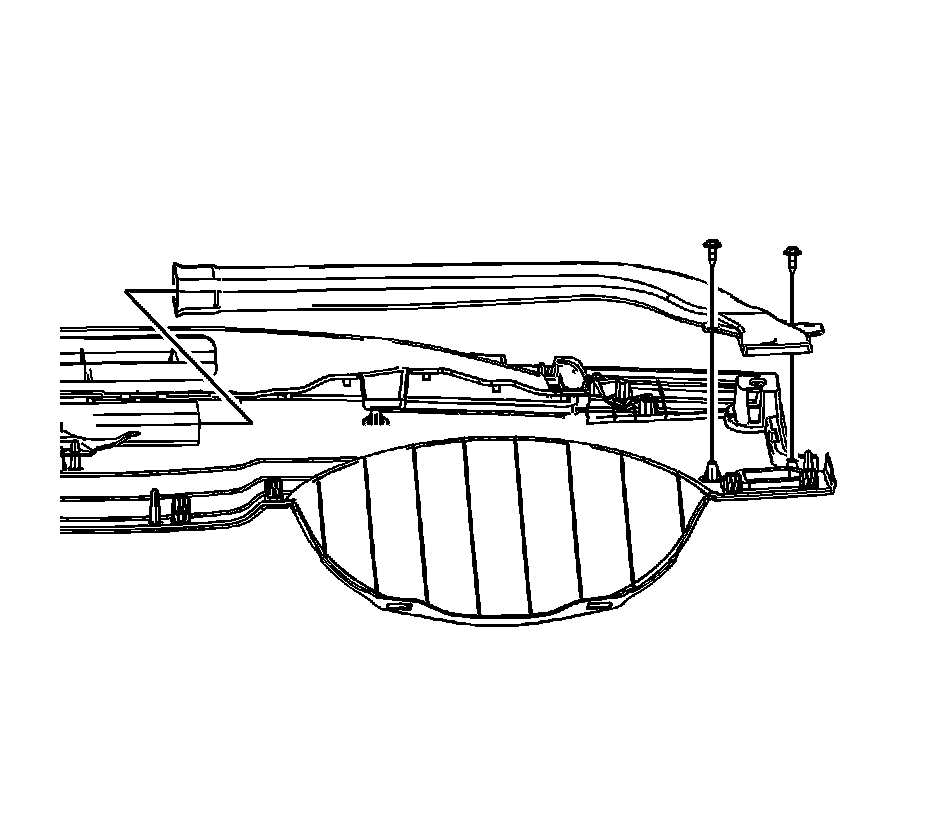

2. Remove the LH defogger duct screws from the I/P upper trim panel.
3. Remove the LH defogger duct from the I/P upper trim panel.

INSTALLATION PROCEDURE
1. Inspect the seals, and replace if damaged, using Kent Industries adhesive backed foam tape P/N 46485 or equivalent.




2. Install the LH defogger duct to the I/P upper trim panel.
3. Install the LH defogger duct screws to the I/P upper trim panel.

Tighten the screws to 1 N.m (9 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the instrument panel upper trim panel
