Equinox FWD V6-3.4L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

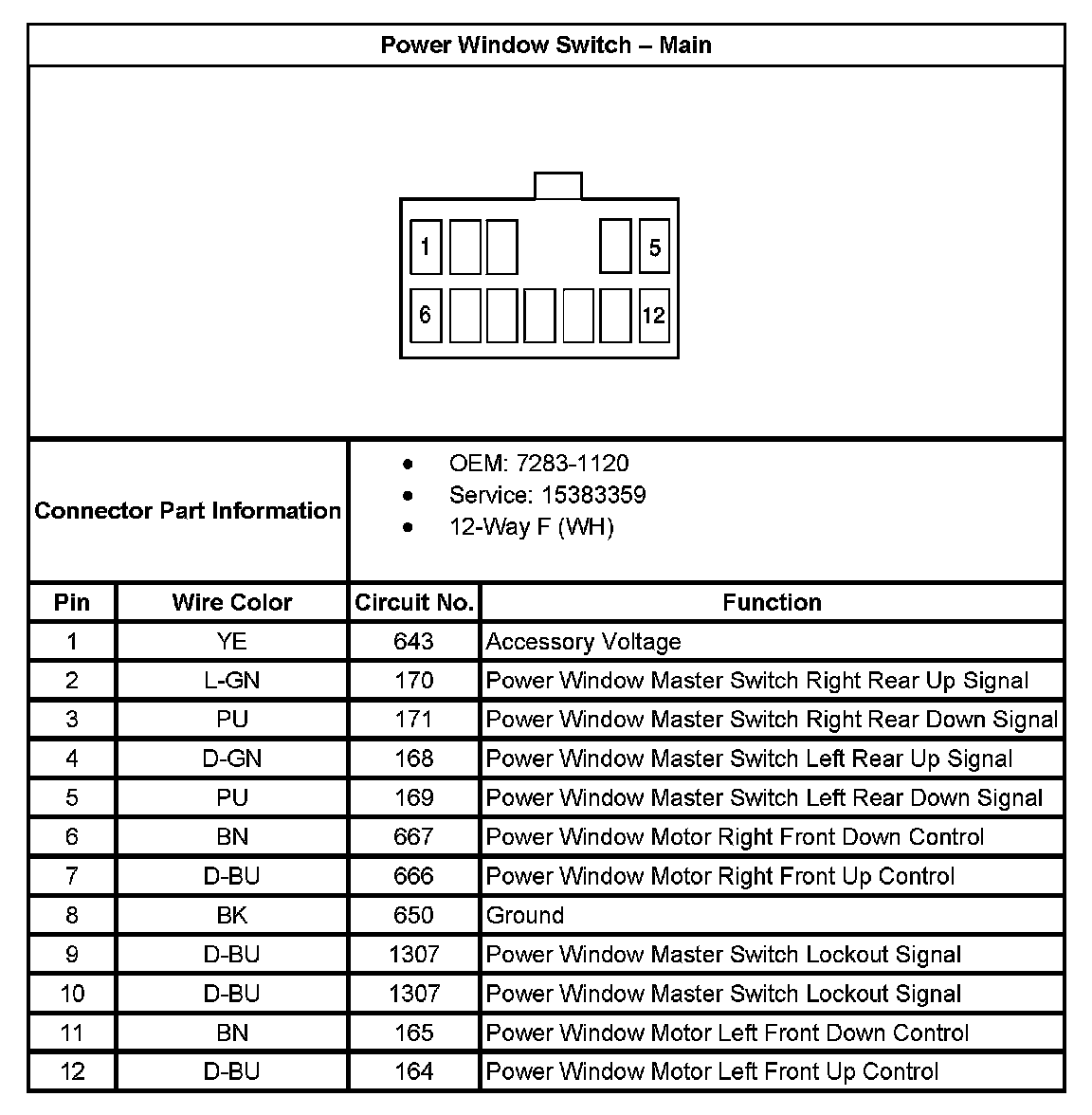

Power Window Switch - Main:
Window Switch - LR:

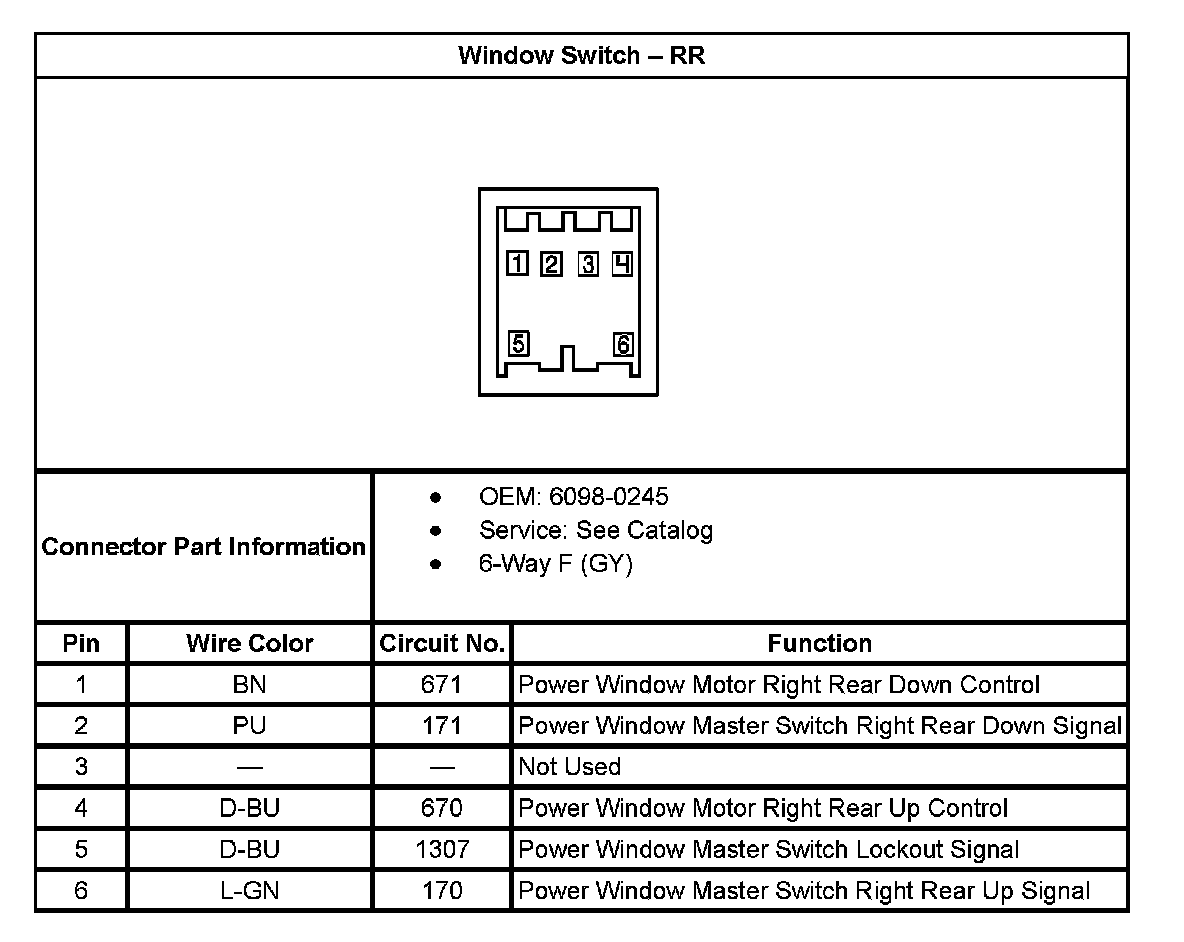

Window Switch - RR:
