Equinox FWD V6-3.4L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
>>
Input Shaft Speed (ISS) Sensor Connector, Wiring Harness Side
Input Shaft Speed (ISS) Sensor Connector, Wiring Harness Side
Input Shaft Speed (ISS) Sensor Connector, Wiring Harness Side

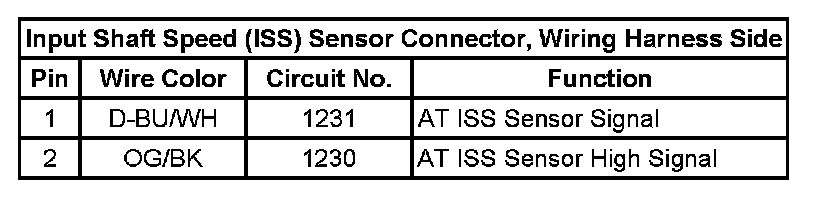

Input Shaft Speed (ISS) Sensor Connector, Wiring Harness Side:
