Exhaust Pipe/Muffler Hanger: Service and Repair

Exhaust System Insulator, Hanger, Bracket Replacement
Service the exhaust hangers individually in order to retain the support of the exhaust system.

Removal Procedure

Caution: Refer to Exhaust Service Caution in Service Precautions.

Caution: Refer to Protective Goggles and Glove Caution in Service Precautions.





1. Raise and support the vehicle.

Important: Do not use oil base lubricants.

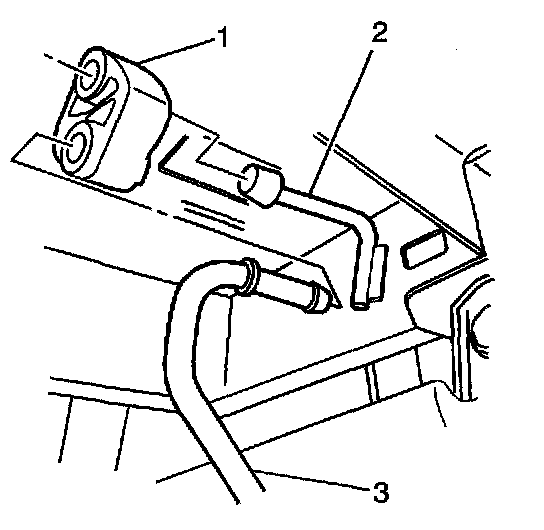

2. Apply a soapy solution to the following in order to ease the removal of the hanger (1):
^ The frame support bracket rod (2)
^ The exhaust pipe hanger rod (3)
3. Pry the exhaust pipe hanger (1) free from the following:
^ The frame support bracket rod (2)
^ The exhaust pipe hanger rod (3)

Installation Procedure

Important: Do not use oil base lubricants.

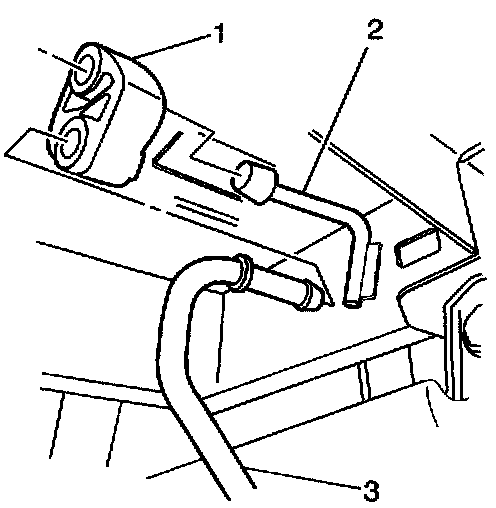

1. Apply a soapy solution to the following in order to ease the installation of the hanger (1):
^ The frame support bracket rod (2)
^ The inner diameter of the exhaust pipe hanger (1)
^ The exhaust pipe hanger rod (3)
2. Press the exhaust pipe hanger (1) over the following:
^ The frame support bracket rod (2)
^ The exhaust pipe hanger rod (3)
3. Lower the vehicle.
