Chevy Truck
>>
2006
>>
Colorado 2WD L5-3.5L VIN 6
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Engine Compartment Views
>>

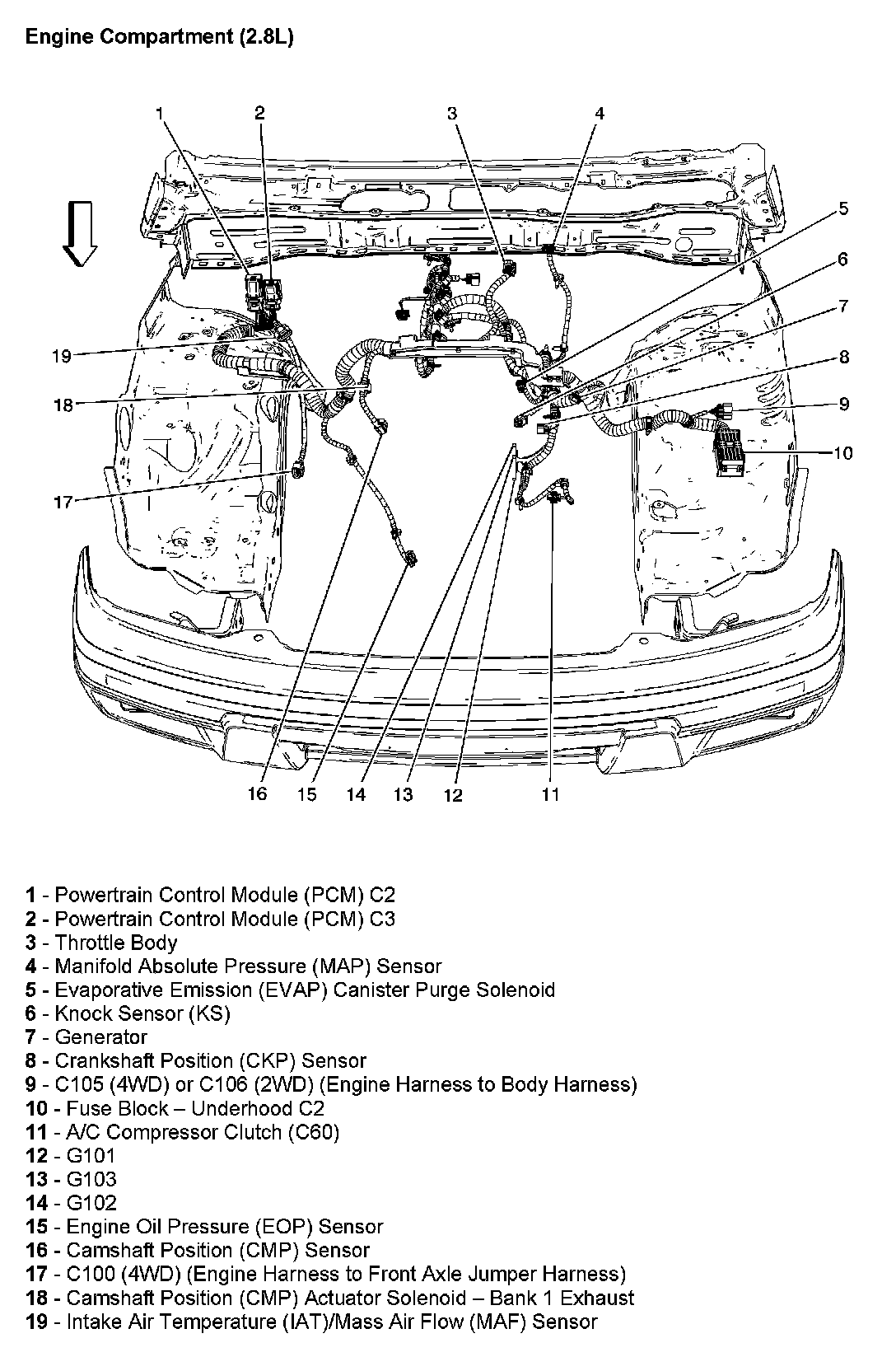

Engine Compartment
Engine Compartment
Engine Compartment:
Engine Compartment:
