Instrument Panel Vent - Center

AIR OUTLET REPLACEMENT - INSTRUMENT PANEL - CENTER

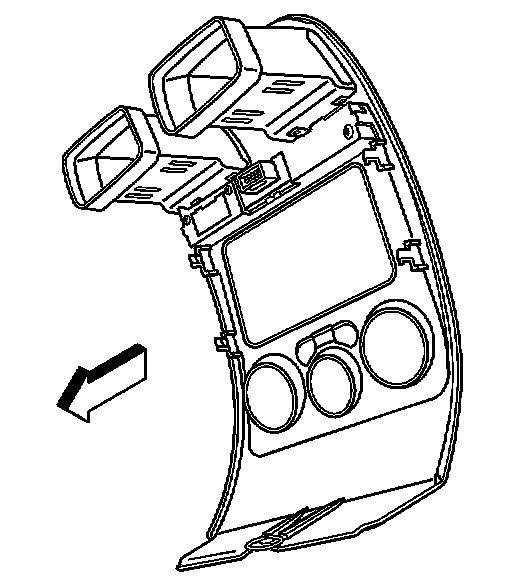

REMOVAL PROCEDURE




1. Remove the instrument panel (I/P) accessory trim plate.
2. Remove the right air outlet assembly from the trim plate.
3. Remove the left air outlet assembly from the trim plate.

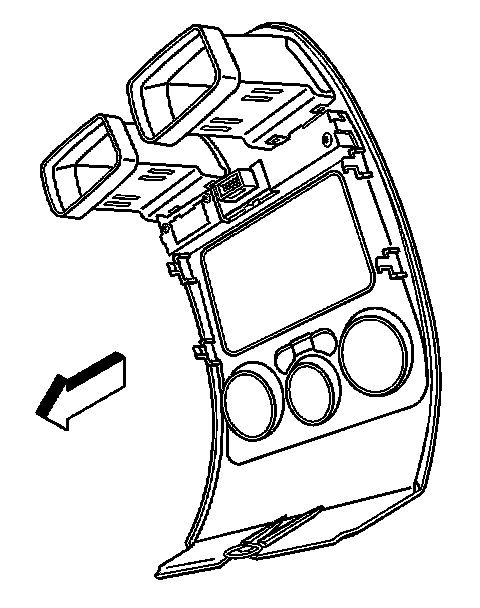

INSTALLATION PROCEDURE




1. Install the left air outlet assembly to the trim plate.
2. Install the right air outlet assembly to the trim plate.
3. Install the accessory trim plate.
