Exhaust Pipe Heat Shield Replacement

Exhaust Pipe Heat Shield Replacement

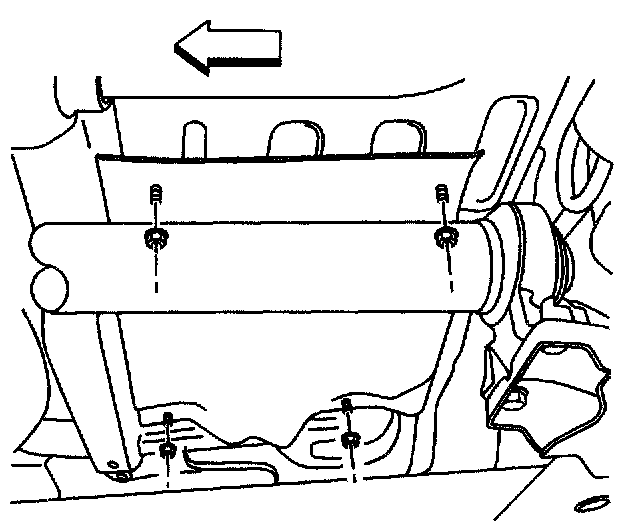

Removal Procedure

Caution: Refer to Exhaust Service Caution in Service Precautions.

Caution: Refer to Protective Goggles and Glove Caution in Service Precautions.





1. Raise and support the vehicle.
2. Remove the 4 nuts securing the heat shield to the floor panel.
3. Remove the exhaust pipe heat shield from the floor panel.

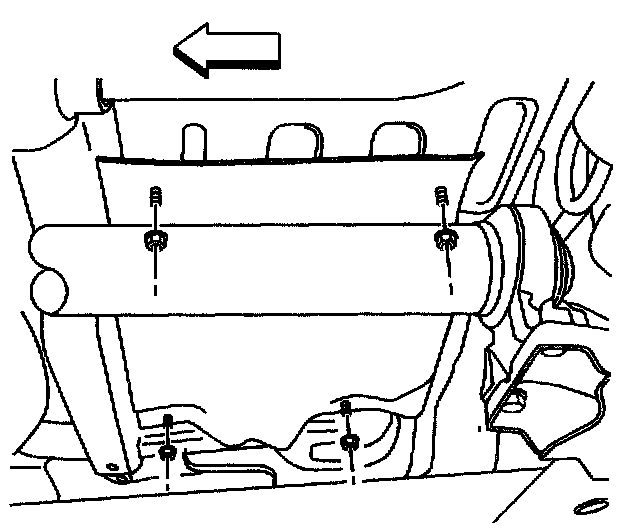

Installation Procedure





1. Position the exhaust pipe heat shield to the floor panel studs.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the 4 nuts securing the heat shield to the floor panel.
^ Tighten the heat shield nuts to 9 Nm (80 inch lbs.).
3. Lower the vehicle.
