Park Brake Cable Replacement - Front
Park Brake Cable Replacement - FrontRemoval Procedure

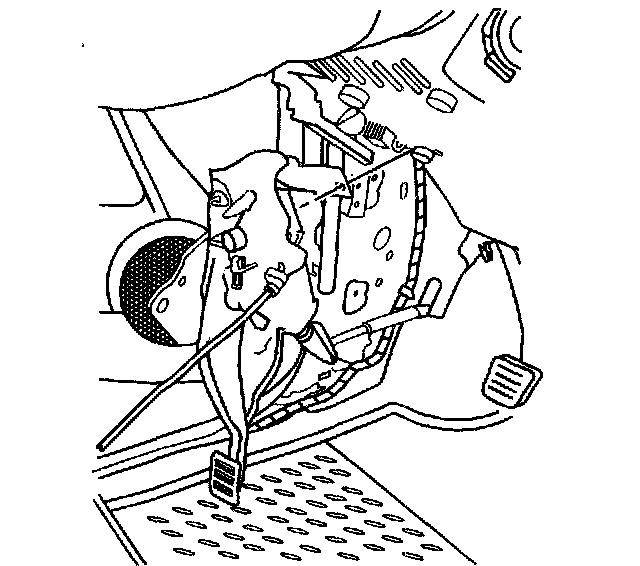

1. Remove the park brake pedal assembly.

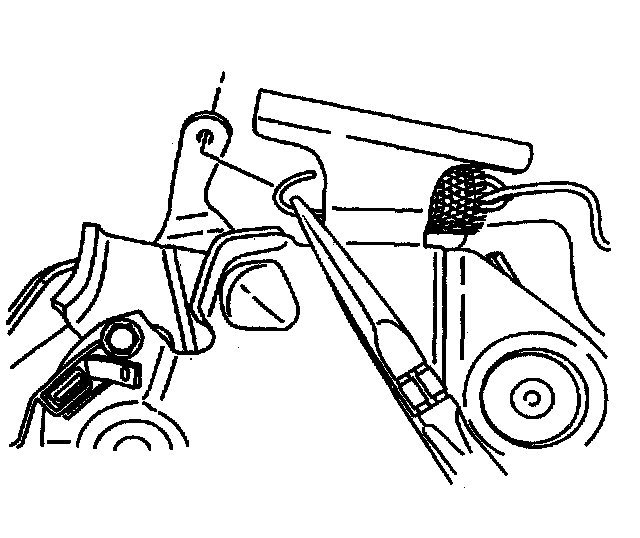

2. Remove the park brake pedal return spring.

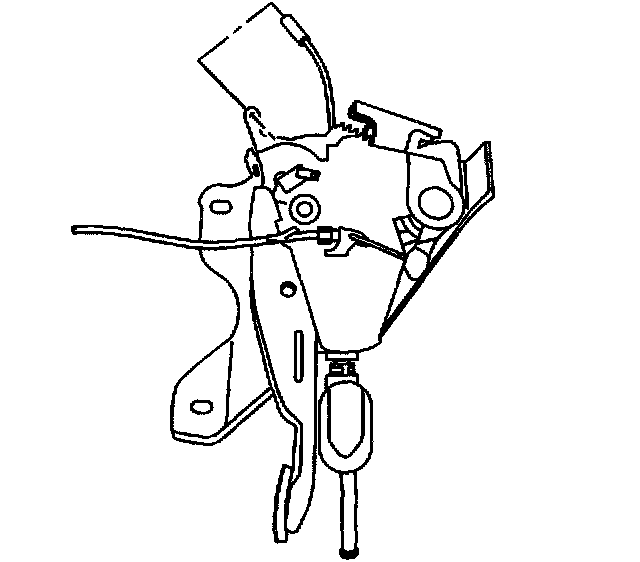

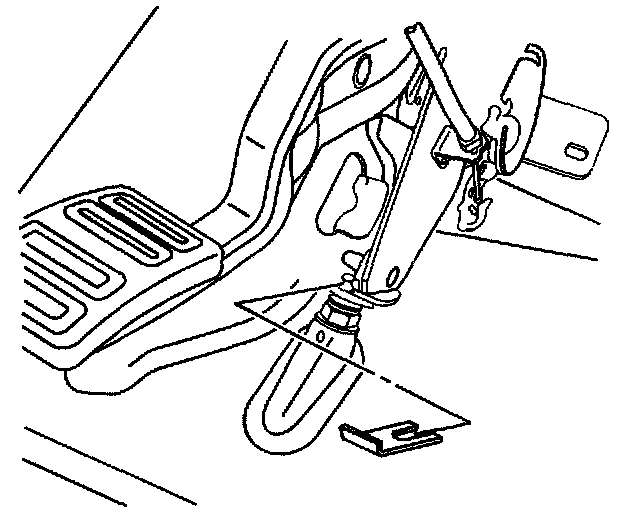

3. Remove the retaining clip for the front park brake cable.
4. Push the inner park brake cable up as far as it will go.
5. Remove the inner cable from the actuator cam.
6. Remove the park brake cable from the pedal assembly.
Installation Procedure
1. Install the park brake cable in the pedal assembly.
2. Install the retaining clip.

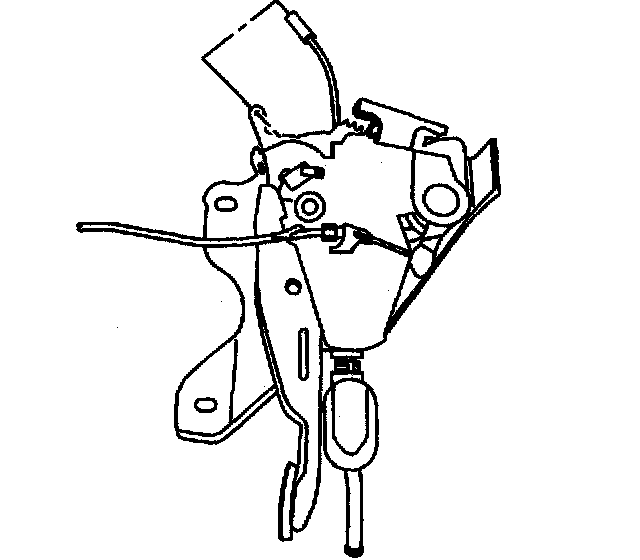

3. Install the inner cable in the actuator cam.

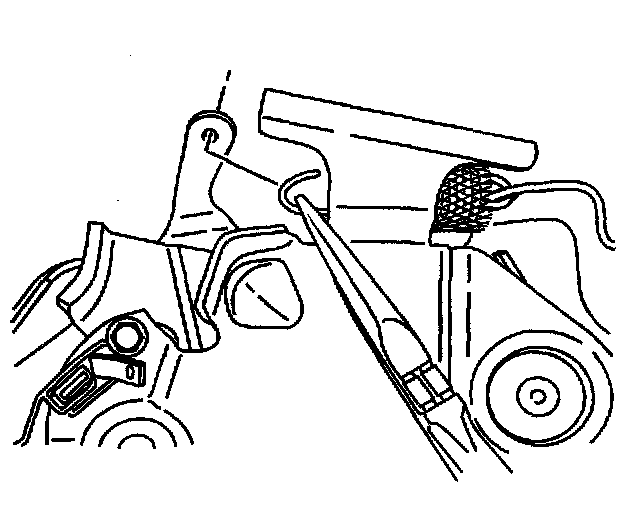

4. Install the park brake pedal return spring.
5. Install the park brake pedal assembly.
