Brake Hose Replacement - Rear

Brake Hose Replacement - Rear

Removal Procedure

Caution: Refer to Brake Fluid Irritant Caution in Service Precautions.,





1. Raise the vehicle. Refer to Vehicle Lifting.

Important Inspect the condition of the retaining clip. If the retaining clip is flatten or damaged, discard and replace with new.

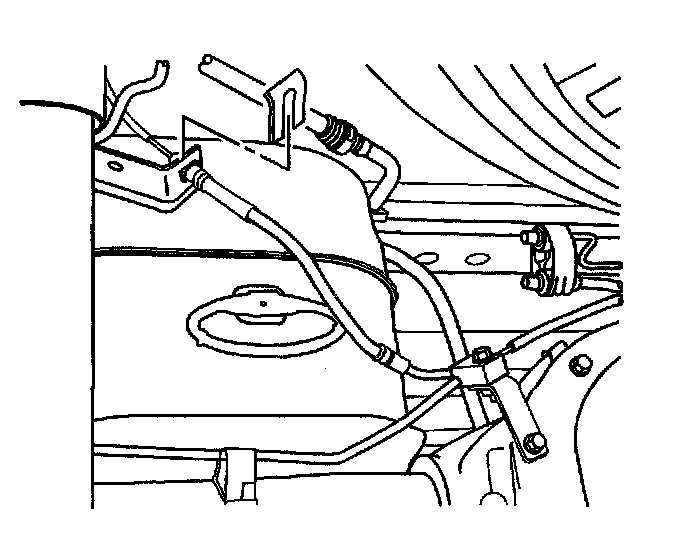

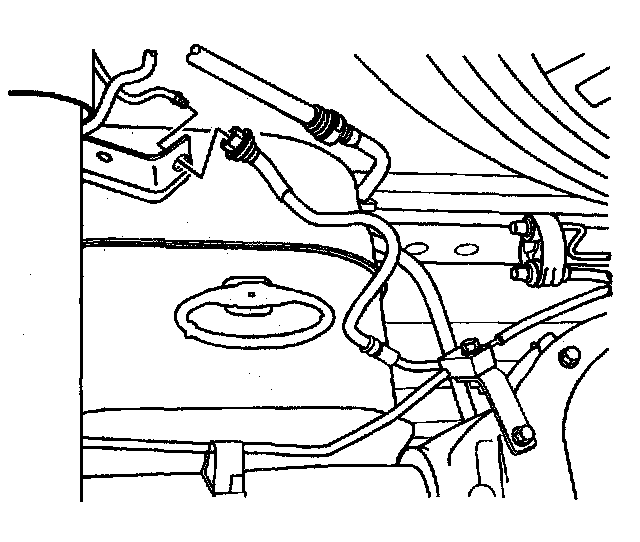

2. Remove the retaining clip from the mounting bracket.





3. Using a backup wrench, remove the brake line from the brake hose.

Important Install a rubber cap or plug to the exposed brake pipe fitting in order to prevent brake fluid loss and contamination.

4. Install a rubber cap or plug in the brake line.

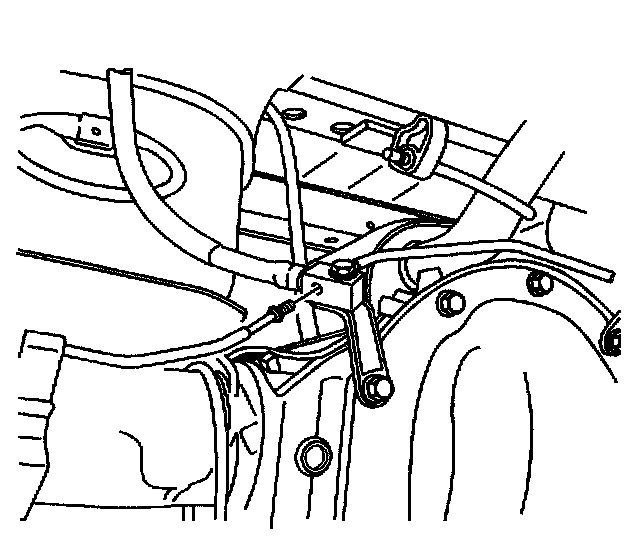

5. Remove the brake line to the left wheel cylinder.

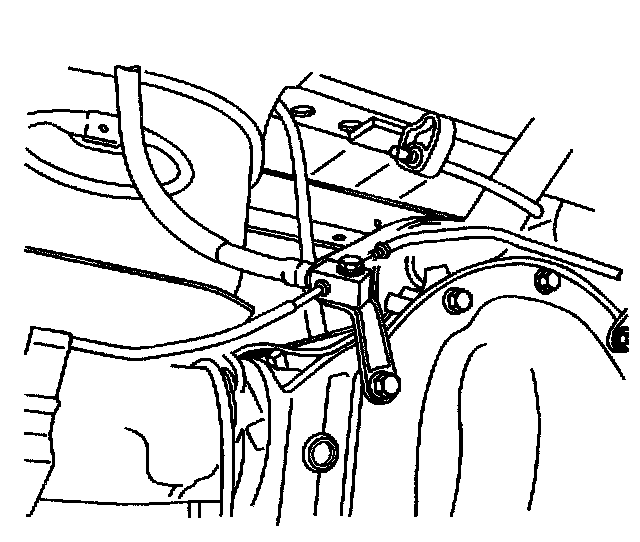

6. Remove the brake line to the right wheel cylinder.
7. Install a rubber cap or plug in the brake lines.

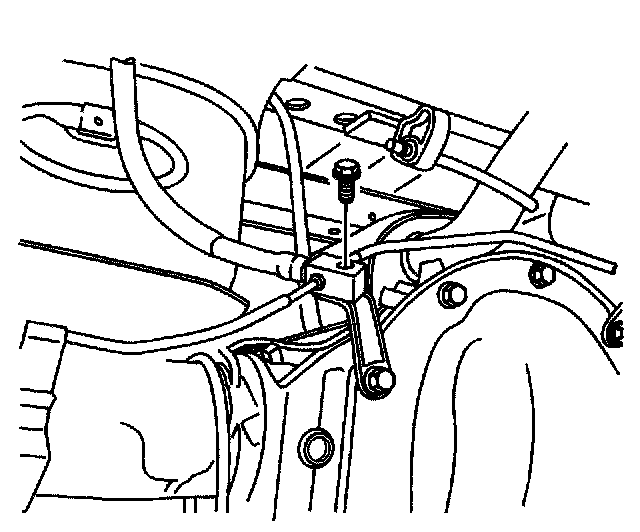

8. Remove the mounting bolt for the brake hose.
9. Remove the rear brake hose.

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

Important When installing the mounting bolt to the brake hose or brake lines, always finger-tighten the bolt before tightening to specification.





1. Install the brake line to the brake hose.
^ Tighten the mounting bolt to 19 Nm (14 ft. lbs.).

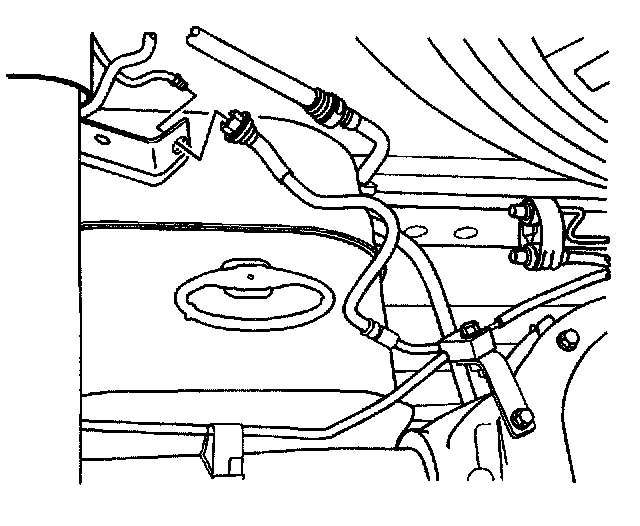

2. Install the new retaining clip for the rear brake hose.





3. Position the rear brake hose on the mounting bracket.

Important When installing the mounting bolt to the brake hose or brake lines, always finger-tighten the bolt before tightening to specification.

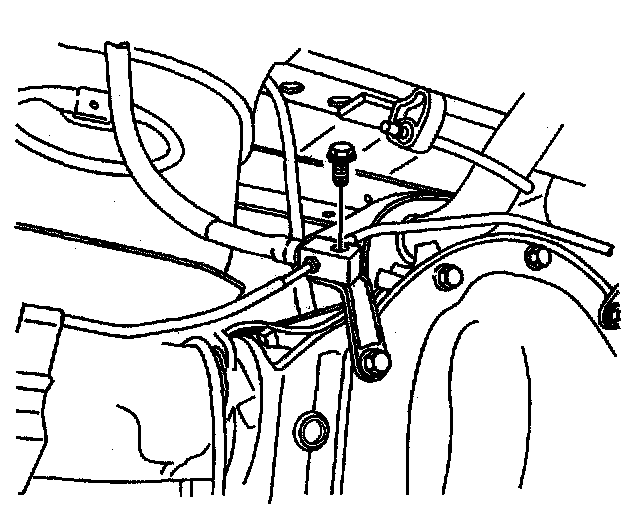

4. Install the mounting bolt.
^ Tighten the mounting bolt to 19 Nm (14 ft. lbs.).
5. Remove the rubber plug or cap from the left brake line to the brake hose.

Important When installing the brake hose or brake line fittings, always finger-tighten the fitting before tightening to specification.

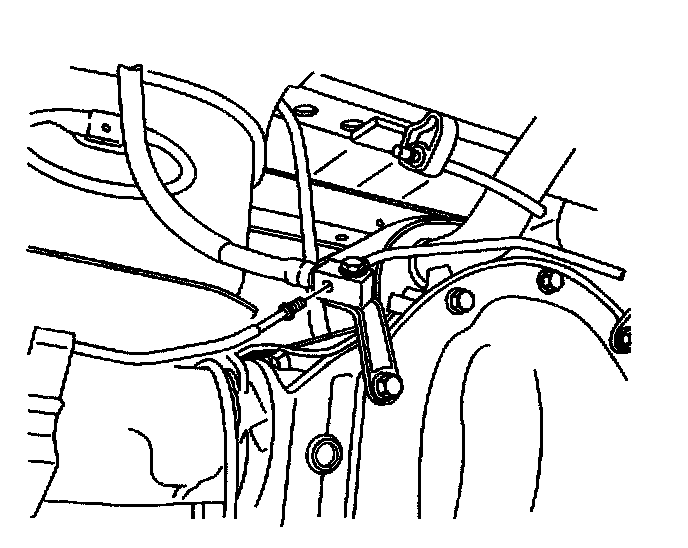

6. Install the left brake line to the brake hose.
^ Tighten the fitting to 19 Nm (14 ft. lbs.).
7. Remove the rubber cap or plug from the right brake line.

Important When installing the brake hose or brake line fittings, always finger-tighten the fitting before tightening to specification.

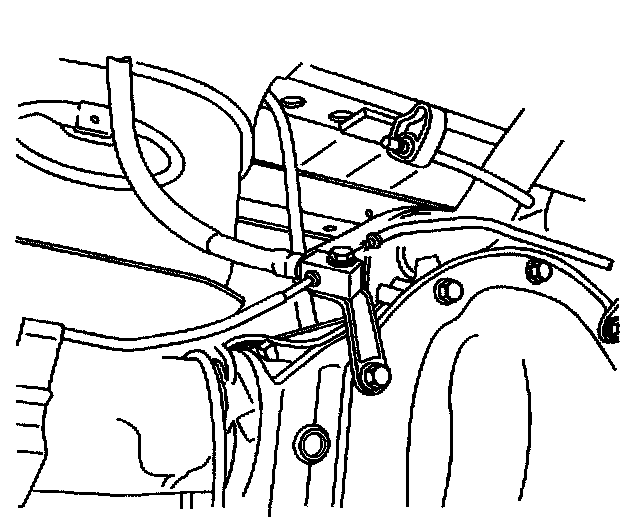

8. Install the right brake line to the brake hose.
^ Tighten the fitting to 19 Nm (14 ft. lbs.).
9. Fill the master cylinder reservoir, if needed.
10. Bleed the brake system.
11. Lower the vehicle.
