Home >> Chevy Truck >> 2006 >> Colorado 2WD L5-3.5L VIN 6 >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Locations

Seat Temperature Element: Locations

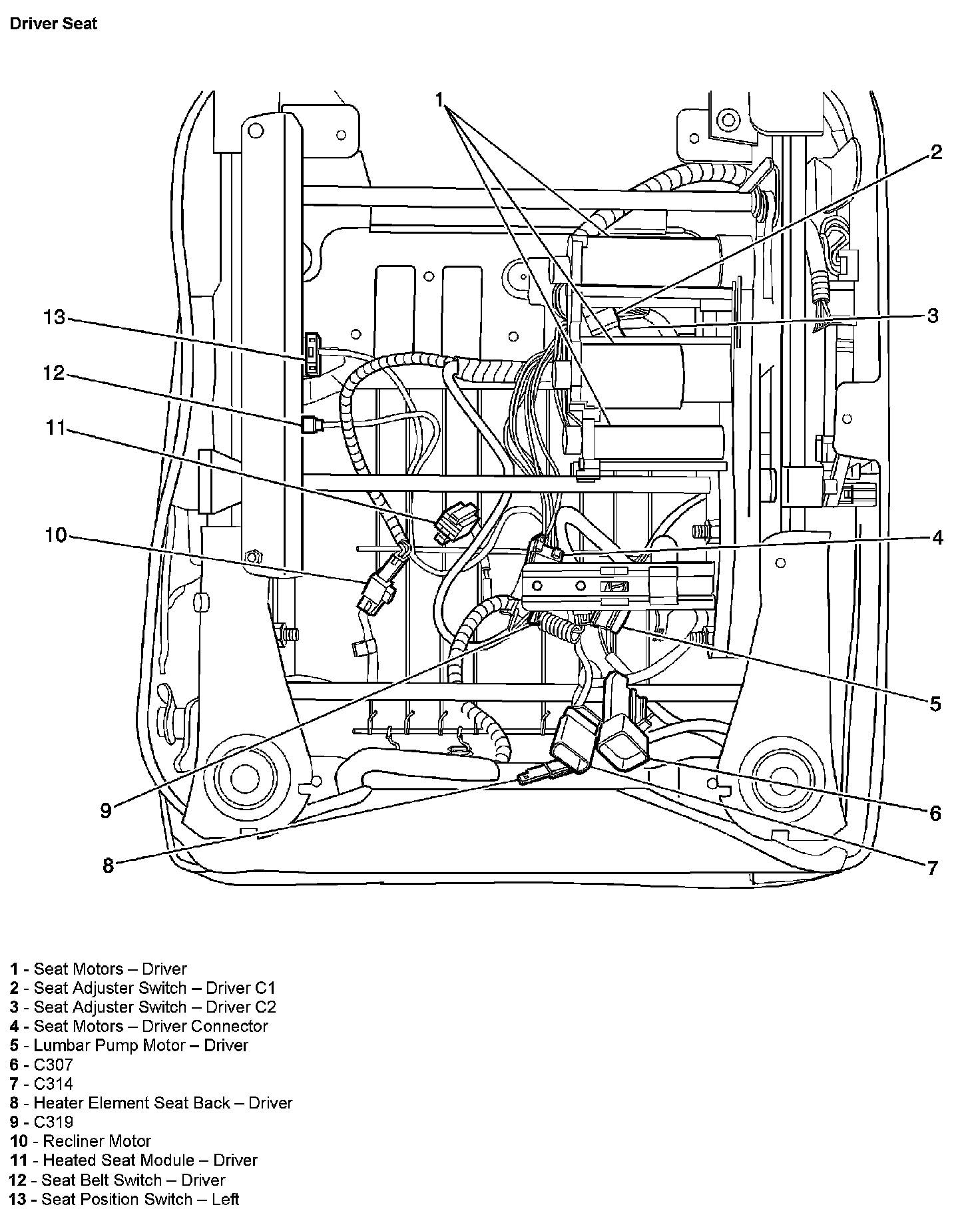

Driver Seat:



Driver Seat Switches:

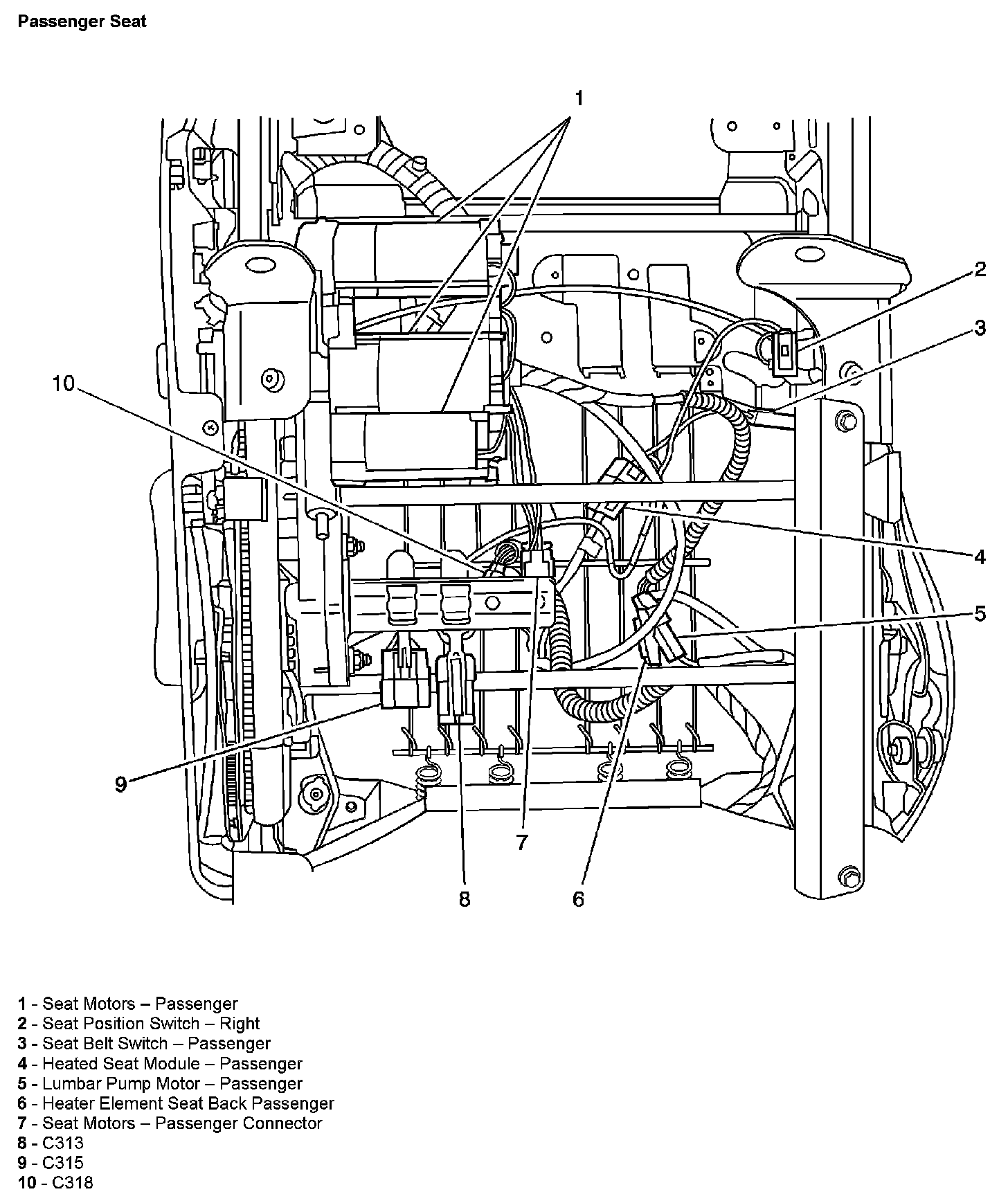

Passenger Seat:

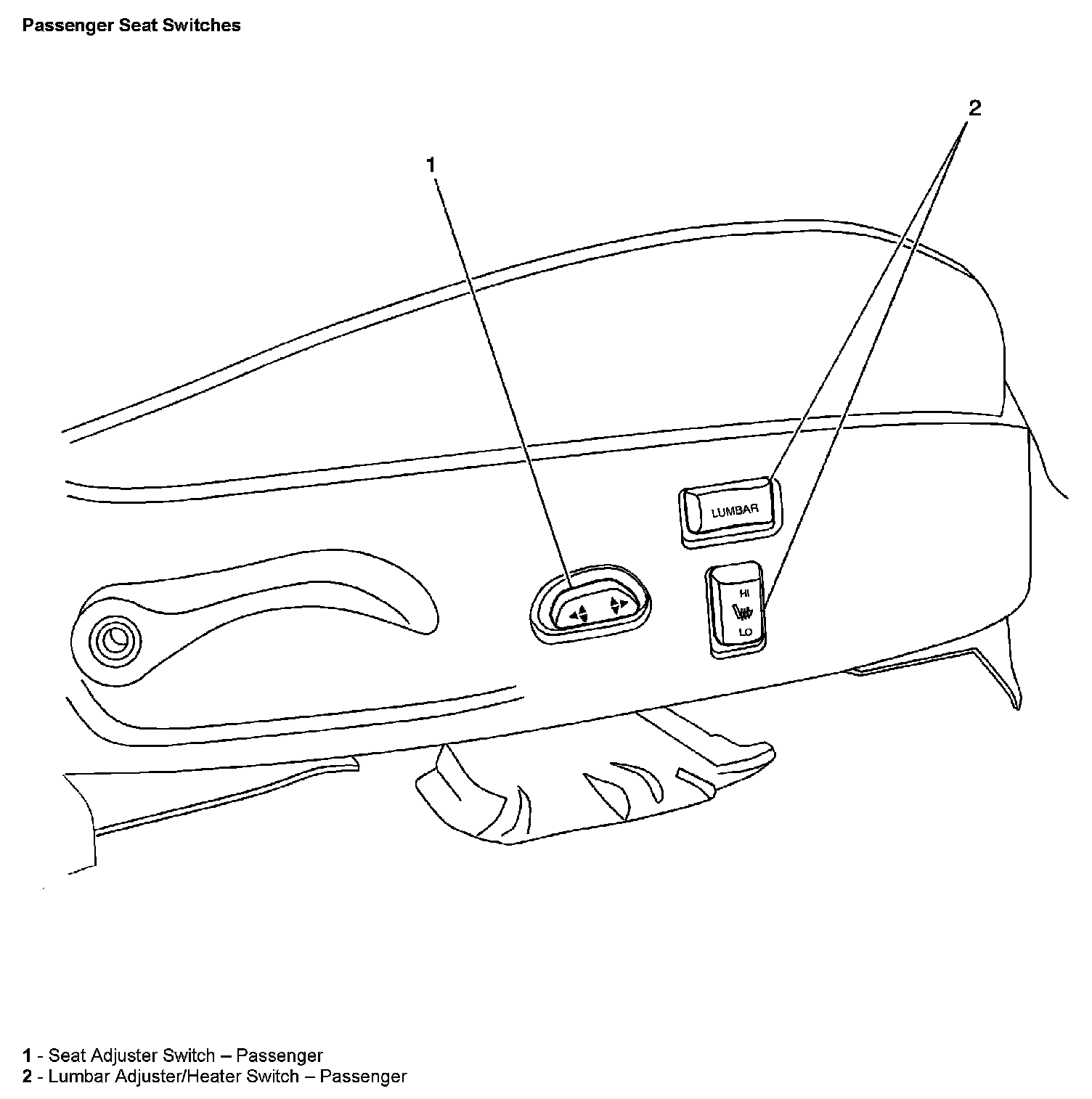

Passenger Seat Switches:
