Flex Plate: Service and Repair

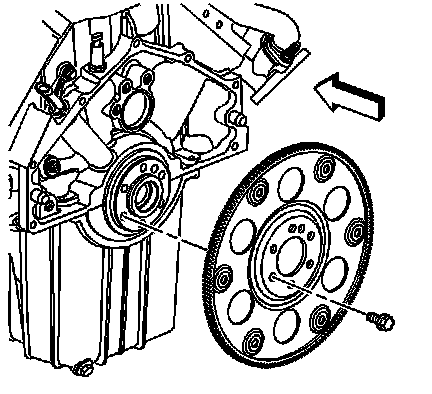

Engine Flywheel Replacement
Removal Procedure





1. Remove the transmission.
2. Remove the flywheel bolts.
3. Remove the flywheel.

Installation Procedure

Important: "Engine Side" stamped on the flywheel is to be positioned toward the engine.





1. Install the flywheel.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the flywheel bolts.
1 Tighten the bolts a first pass to 40 Nm (30 lb ft).
2 Tighten the bolts a second pass to 80 Nm (59 lb ft).
3 Tighten the bolts a final pas to 100 Nm (74 lb ft).
3. Install the transmission.
