Home >> Chevy Truck >> 2006 >> Avalanche 2500 2WD V8-8.1L VIN G >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Parking Assist Control Module >> Locations

Parking Assist Control Module: Locations

Under RR Seat (Short Wheelbase):

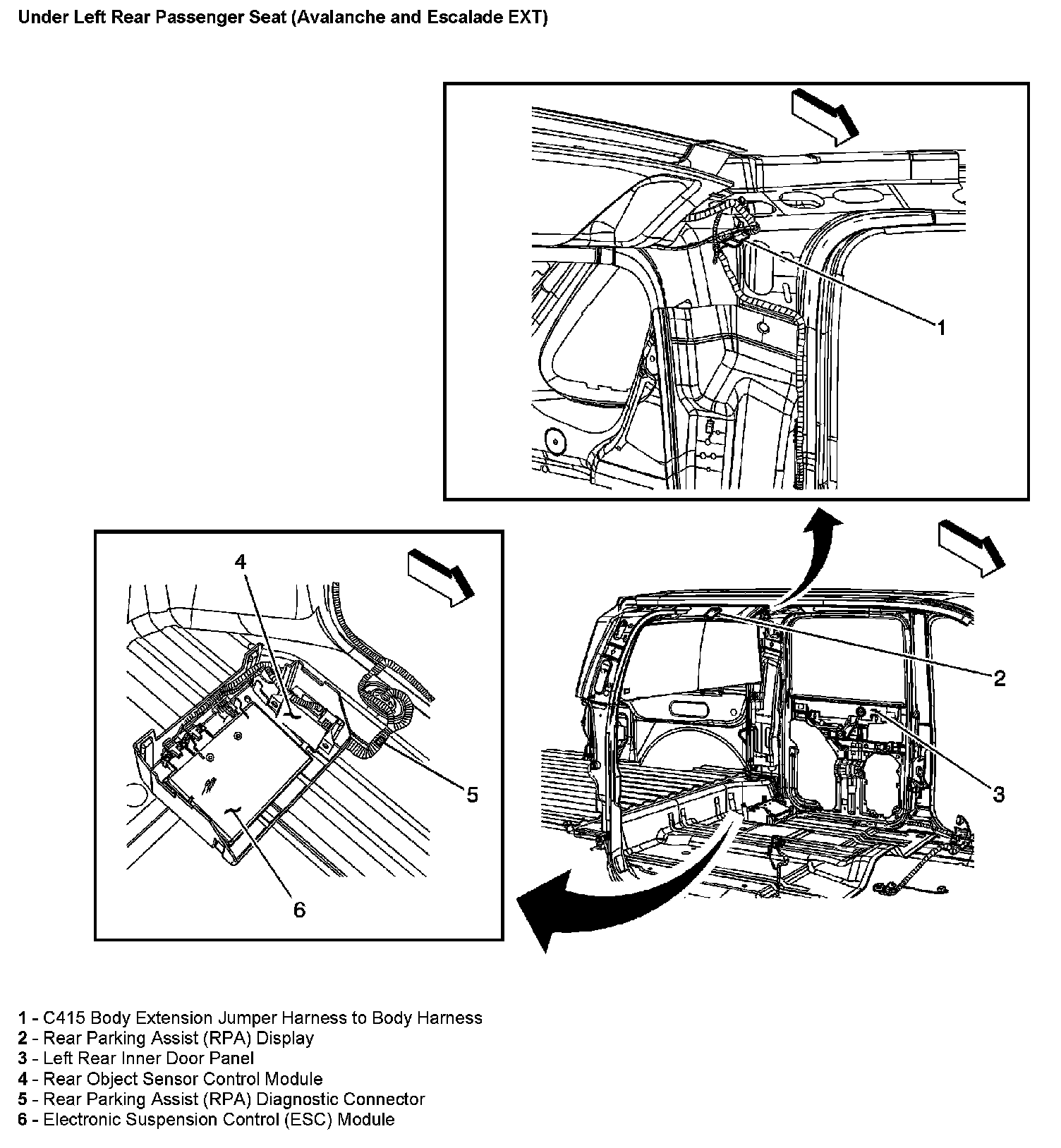

Under Left Rear Passenger Seat:
