Chevy Truck
>>
2006
>>
Avalanche 2500 2WD V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor Position Sensor
>>
Seat Bolster Motor Position Sensor
Seat Bolster Motor Position Sensor

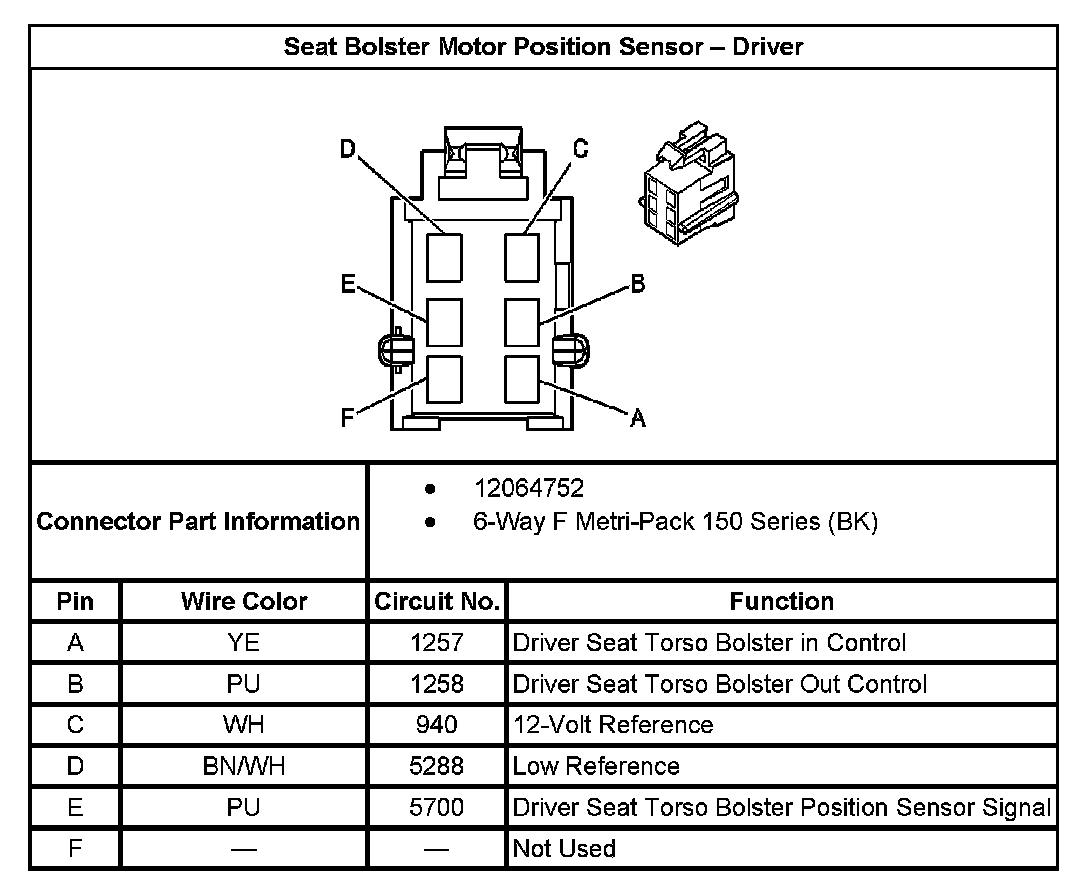

Seat Bolster Motor Position Sensor - Driver:
