Transmission Pressure Test Port: Service and Repair

Oil Pressure Test Plug Replacement

Removal Procedure
1. Remove the throttle body air inlet duct.

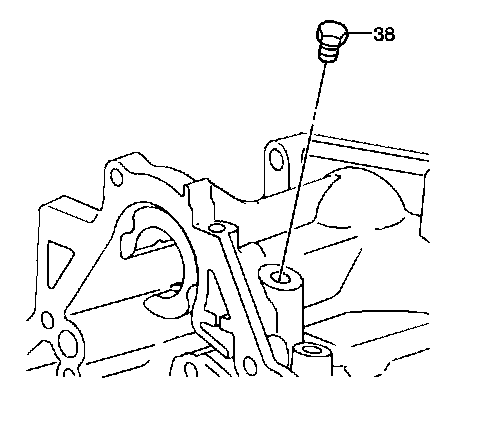

2. Remove the pressure test hole plug (38).

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the pressure test hole plug (38).
^ Tighten the plug (38) to 12 Nm (106 lb in).
2. Install the throttle body air inlet duct.
