Chevy Truck
>>
2005
>>
Venture FWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
Power Control Module (PCM) C1
Power Control Module (PCM) C1

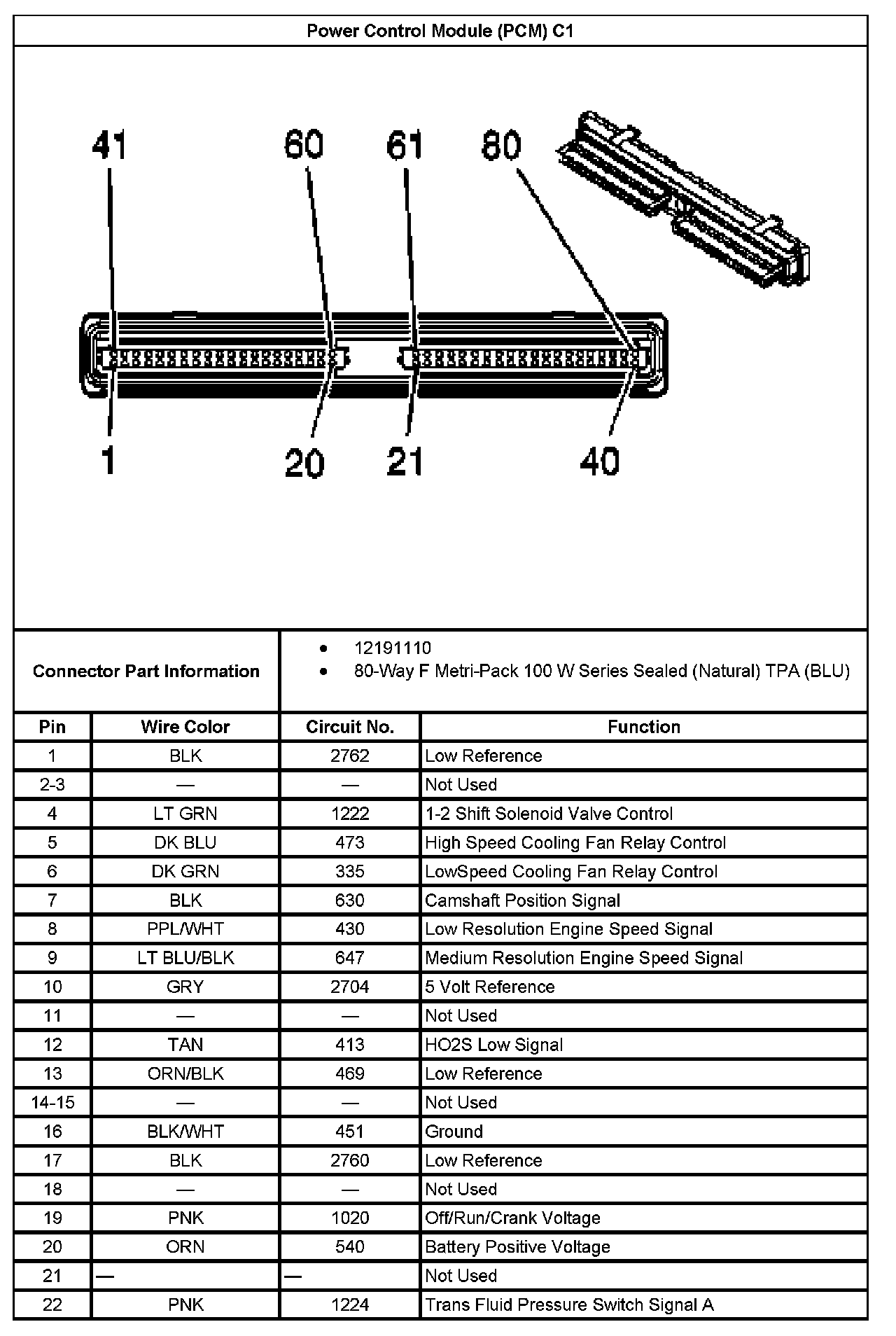

Power Control Module (PCM) C1 Part 1:
Power Control Module (PCM) C1 Part 2:

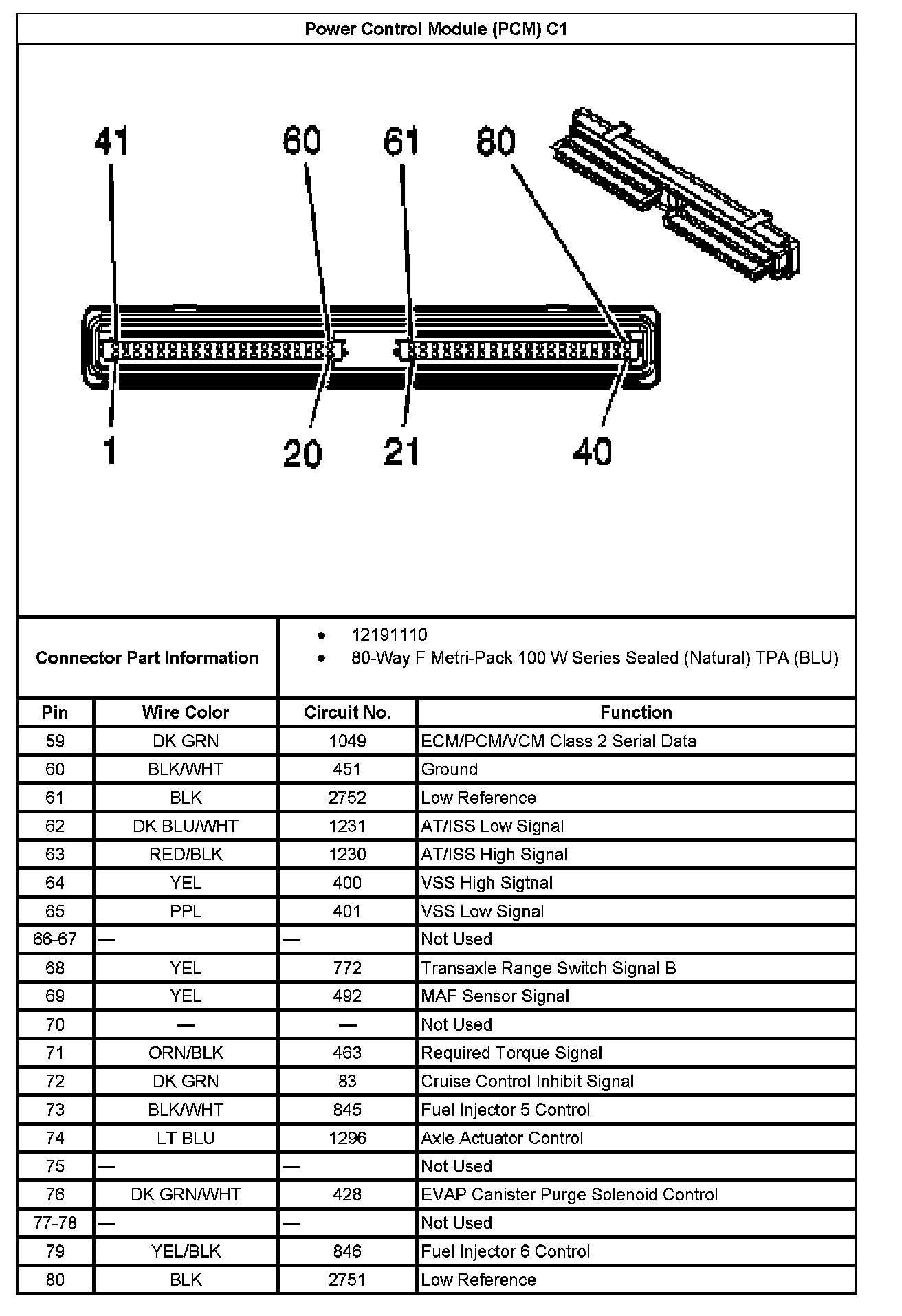

Power Control Module (PCM) C1 Part 3:
