1-2 Shift Solenoid Valve Connector
1-2 Shift Solenoid Valve Connector

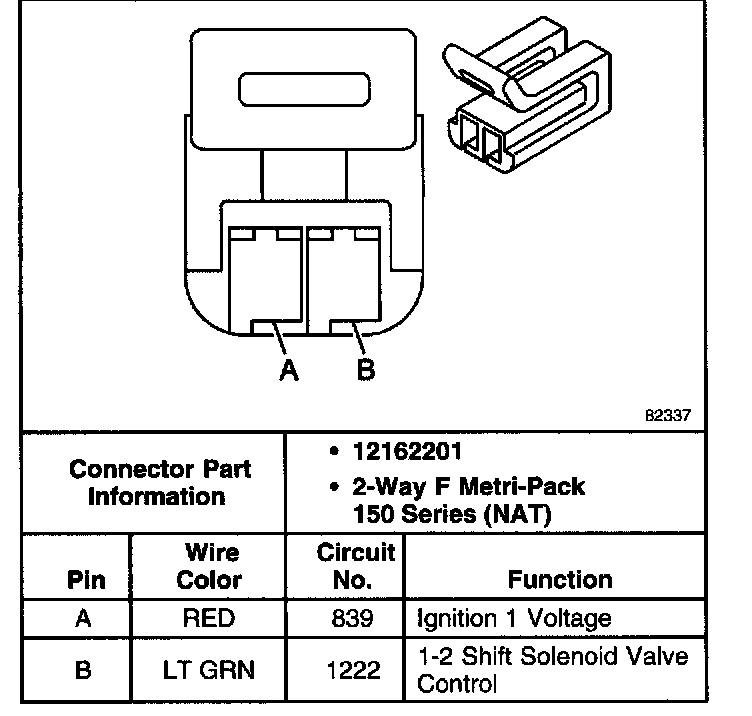

1-2 Shift Solenoid Valve Connector, Wiring Harness Side:
