Child Restraint Belt Tether Location (Outboard-Third Row)

CHILD RESTRAINT BELT TETHER LOCATION (OUTBOARD-THIRD ROW SEAT)

REMOVAL PROCEDURE

IMPORTANT: The child seat tether attaches or anchors in two different ways. The tether strap attaches to the third row outboard lower seat belt anchor bracket or the third row seat rise depending on the seat configurations. Use the child seat tether strap only in the second row.

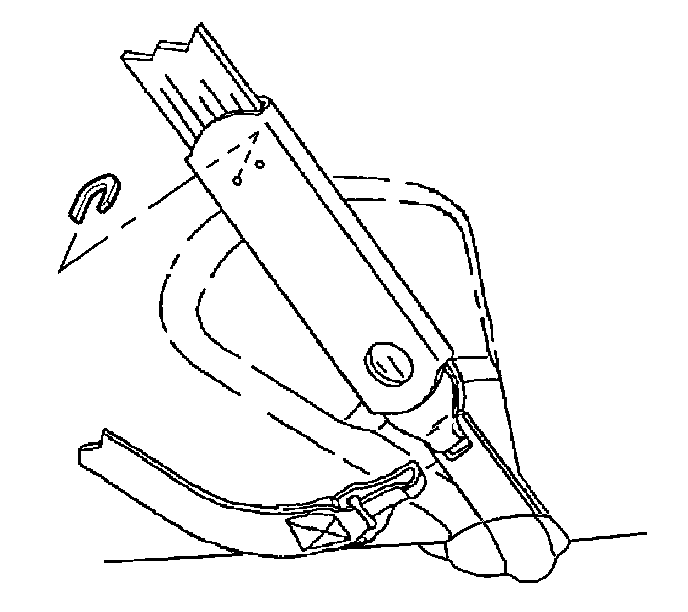

1. Slide the rear seat belt sleeve to the upward position in order to expose the tether strap anchor.
2. Remove the tether strap spring clip from the seat belt anchor plate.

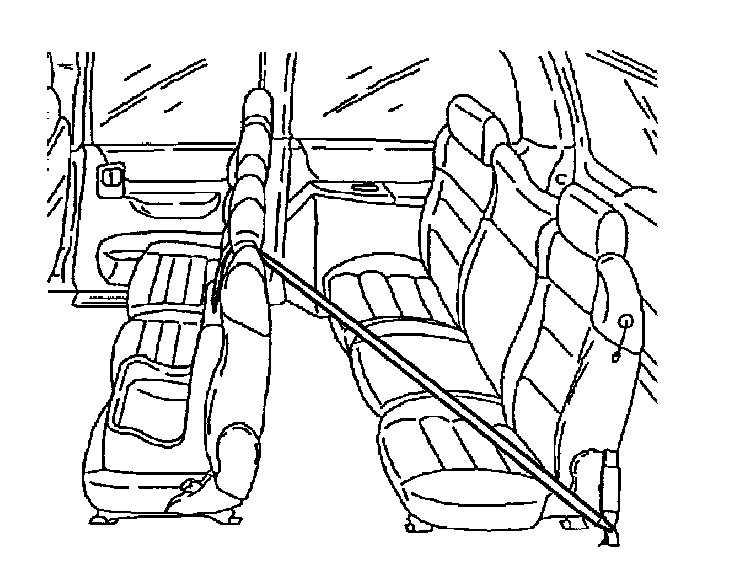

3. Remove the tether strap from underneath the head restraint if equipped.
4. Remove the tether strap from the vehicle.

INSTALLATION PROCEDURE

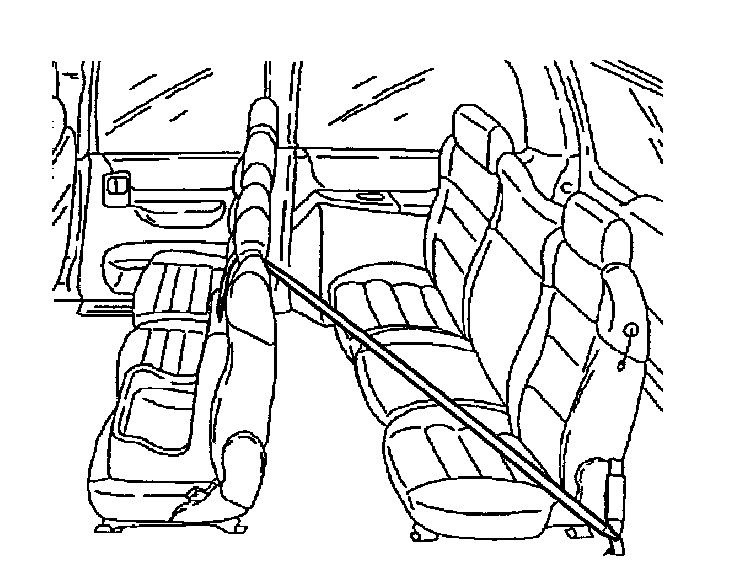

1. Install the tether strap underneath the second row seat head restraint if equipped.




2. Remove the staple from the seat belt anchor sleeve. Then discard the staple.
3. Slide the sleeve to the upward position in order to expose the seat belt anchor.
4. Install the tether strap spring clip to the anchor plate. Verify that the spring clip end closes once the tether strap spring clip is attached to the anchor plate.
