RPO Code C60 (HVAC Front Manual Controls)

Compressor Pressure Relief Valve Replacement (w/C60)

Tools Required
J 39400-A Halogen Leak Detector

Removal Procedure

1. Recover the refrigerant from the A/C system.






2. Raise and support the vehicle.

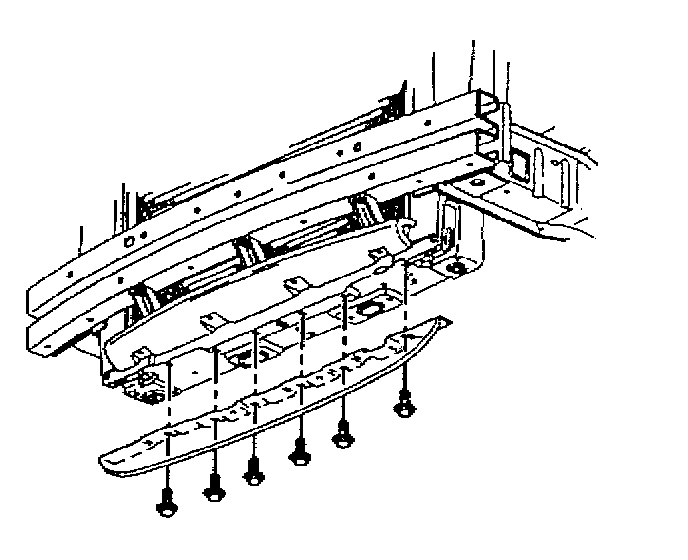

3. Remove the air baffle bolts.
4. Remove the air baffle

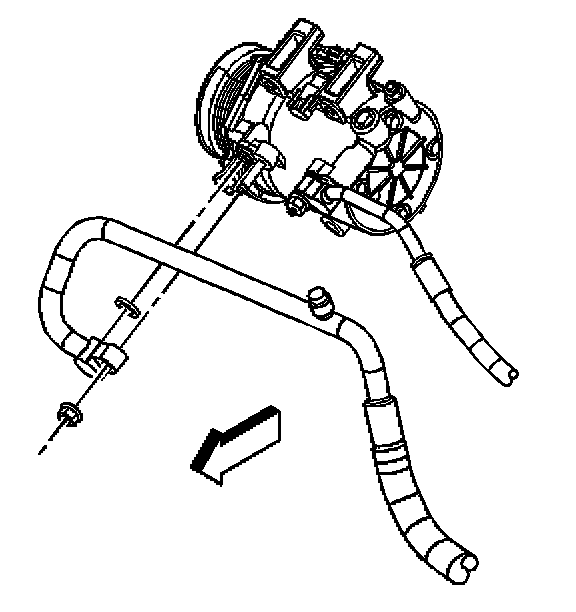

5. Remove the suction hose to A/C compressor nut.

Important: Immediately cap or tape the open A/C components immediately in order to prevent contamination.

6. Disconnect the suction hose from the A/C compressor.
7. Remove and discard the seal washer and position the suction hose aside.
8. Cap or tape the A/C compressor suction port and suction hose end fitting.
9. Lower the vehicle.

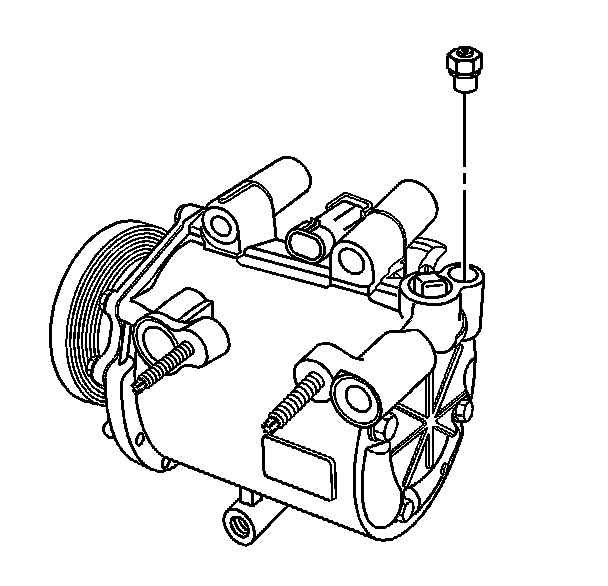

10. Remove the high pressure relief valve from the A/C compressor.

Installation Procedure

1. Lubricate the high pressure relief valve O-ring.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.






2. Install the high pressure relief valve to the A/C compressor.

Tighten
Tighten the valve to 12 Nm (9 lb ft).

3. Raise and support the vehicle.
4. Remove the cap or tape from the A/C compressor suction port and suction hose end fitting.
5. Install a new seal washer to the suction hose end fitting.

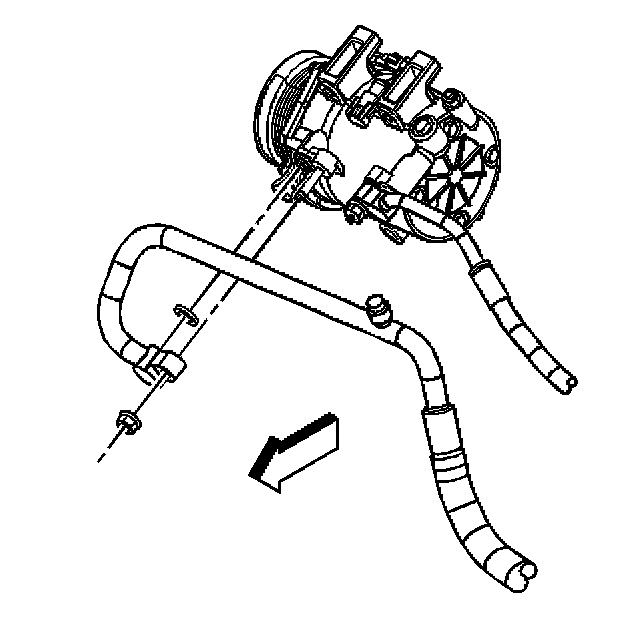

6. Connect the suction hose to the A/C compressor.
7. Install the suction hose to A/C compressor nut.

Tighten
Tighten the nut to 16 Nm (12 lb ft).

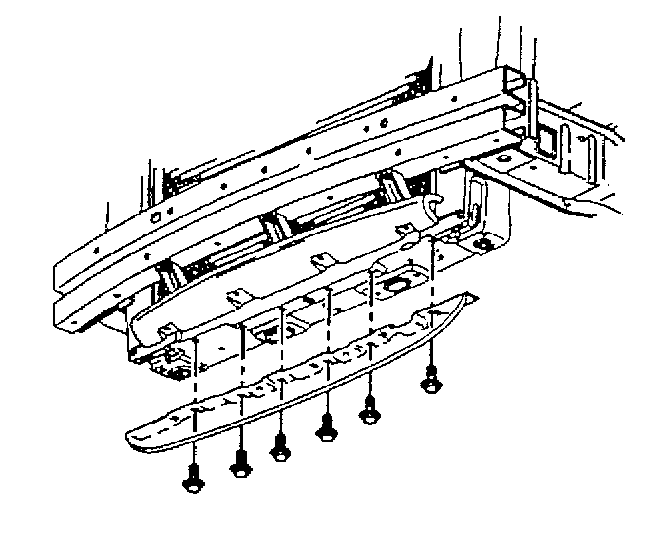

8. Install the air baffle.






9. Install the air baffle bolts.

Tighten
Tighten the bolts to 20 Nm (15 lb ft).

10. Lower the vehicle.
11. Evacuate and recharge the A/C system.
12. Leak test the fittings of the component using J 39400-A.
