Chevy Truck
>>
2005
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Motor
>>
Seat Adjuster Motor Assembly
Seat Adjuster Motor Assembly
Seat Adjuster Motor Assembly - Driver:

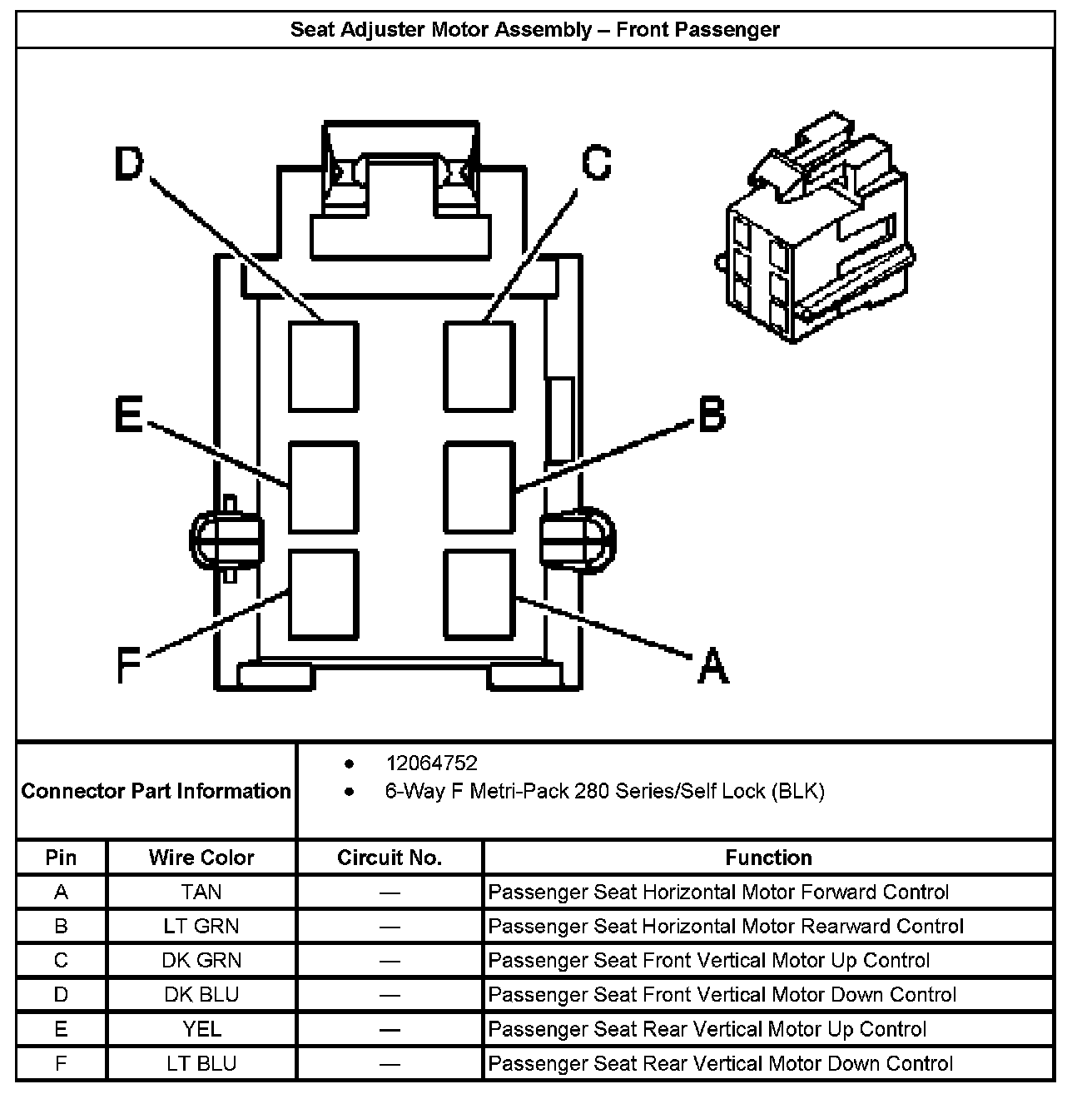

Seat Adjuster Motor Assembly - Front Passenger:
