Chevy Truck
>>
2005
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Glove Compartment
Glove Compartment

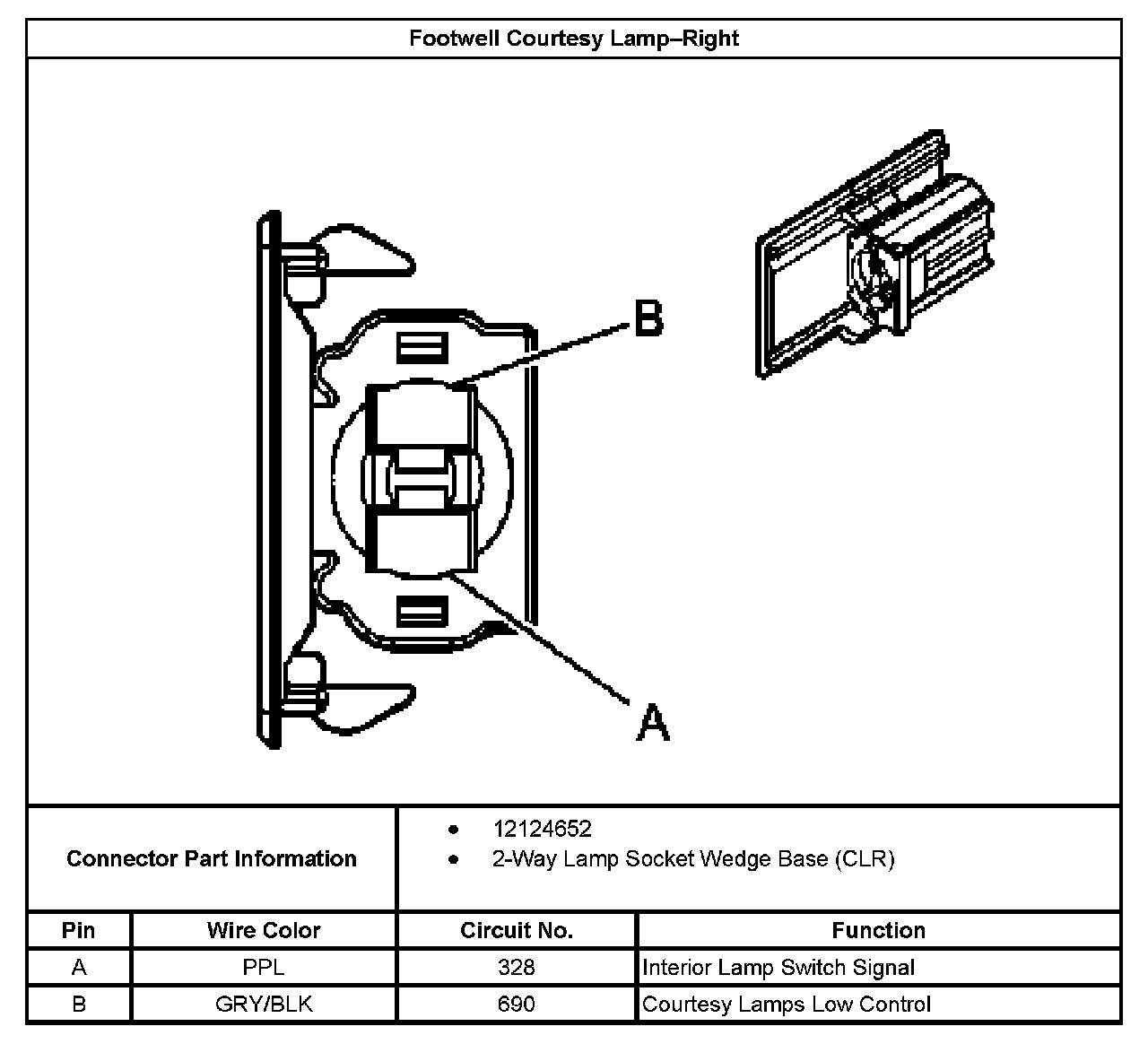

Footwell Courtesy Lamp - Right:
