Home
>>
Chevy Truck
>>
2005
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C200 - C299
>>
C215
C215

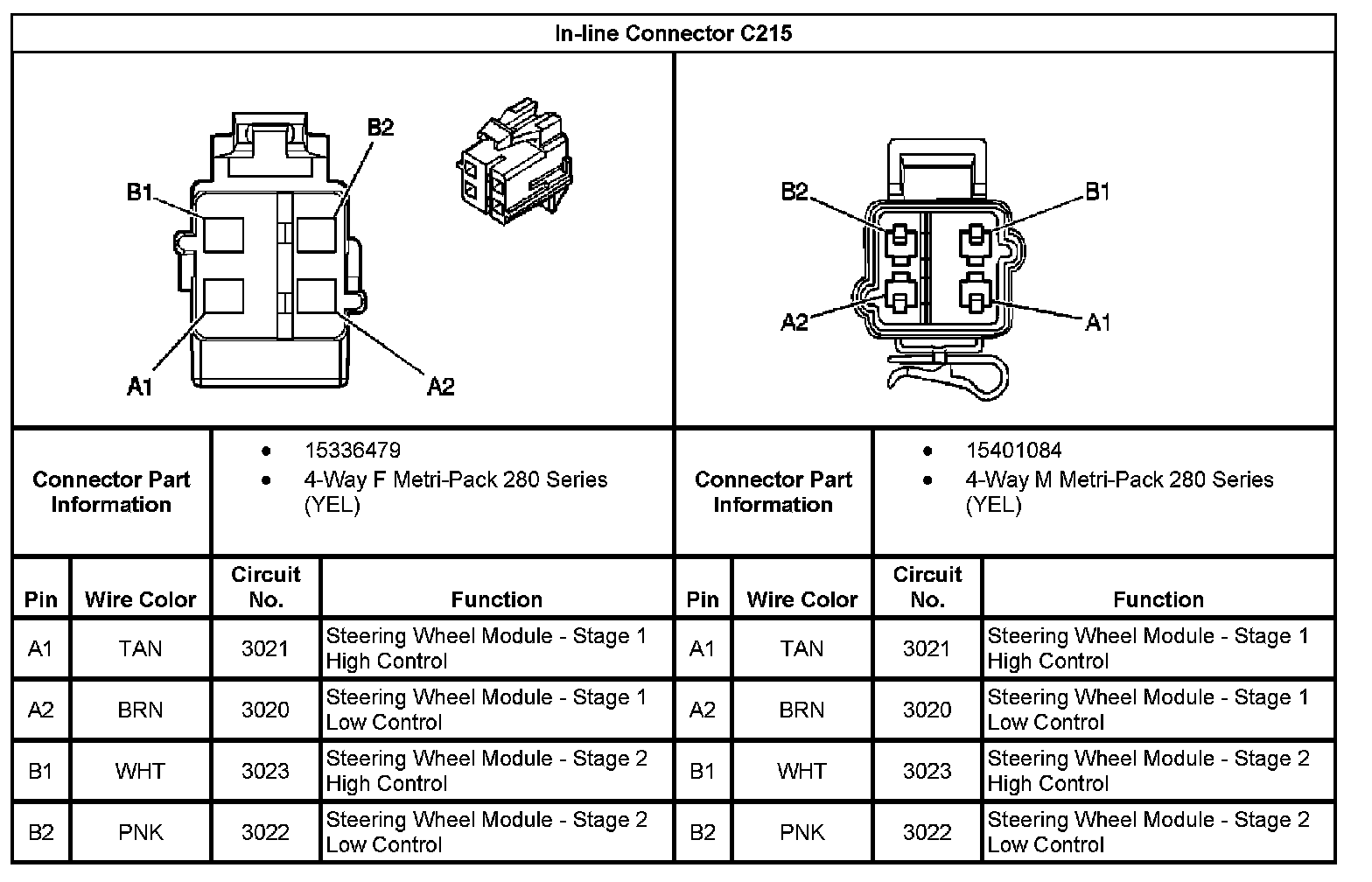

In - line Connector C215:
