C201
C201

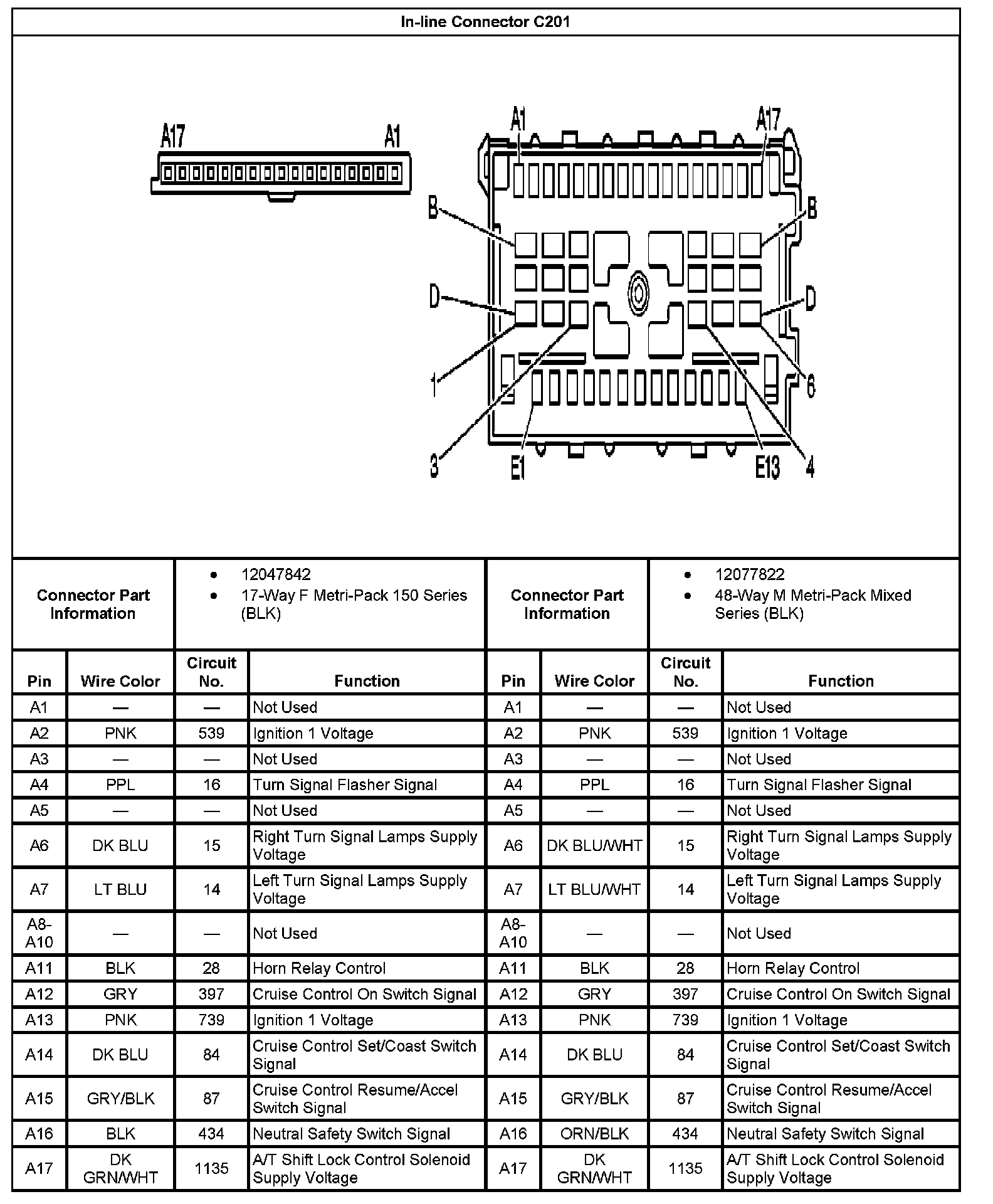

In - line Connector C201 Part 1:

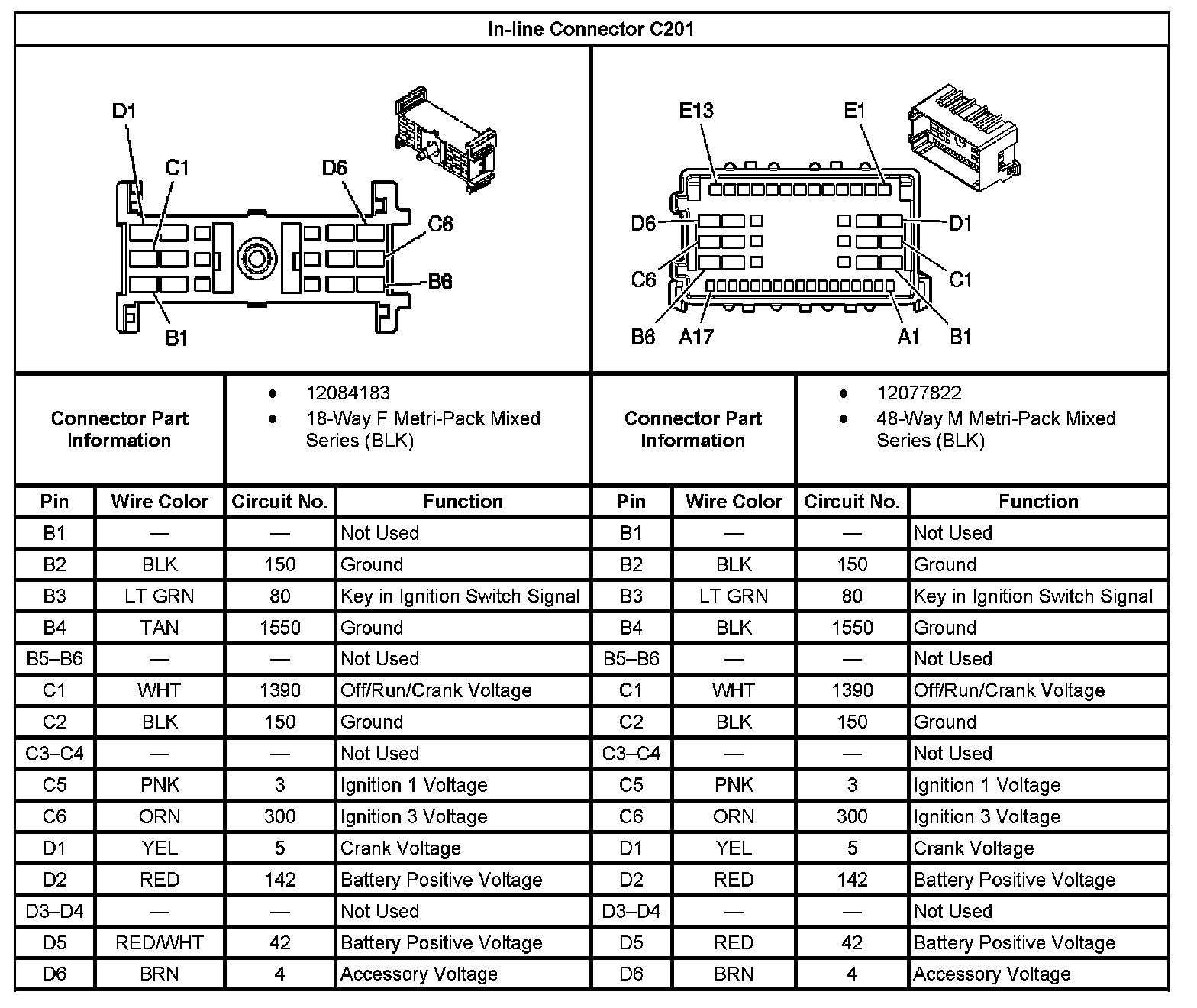

In - line Connector C201 Part 2:

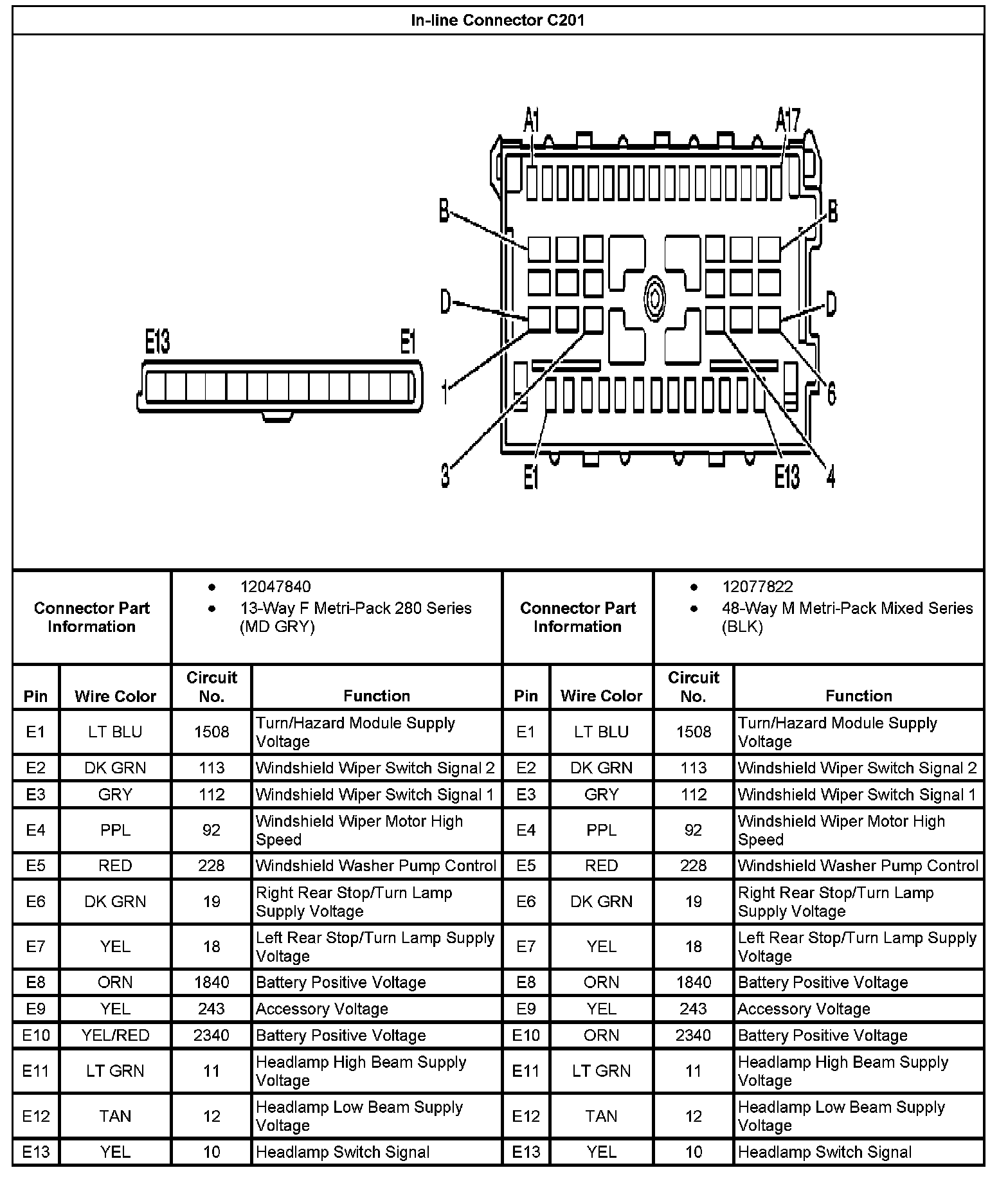

In - line Connector C201 Part 3:
