Chevy Truck
>>
2005
>>
Venture AWD V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C199
>>
C171
C171

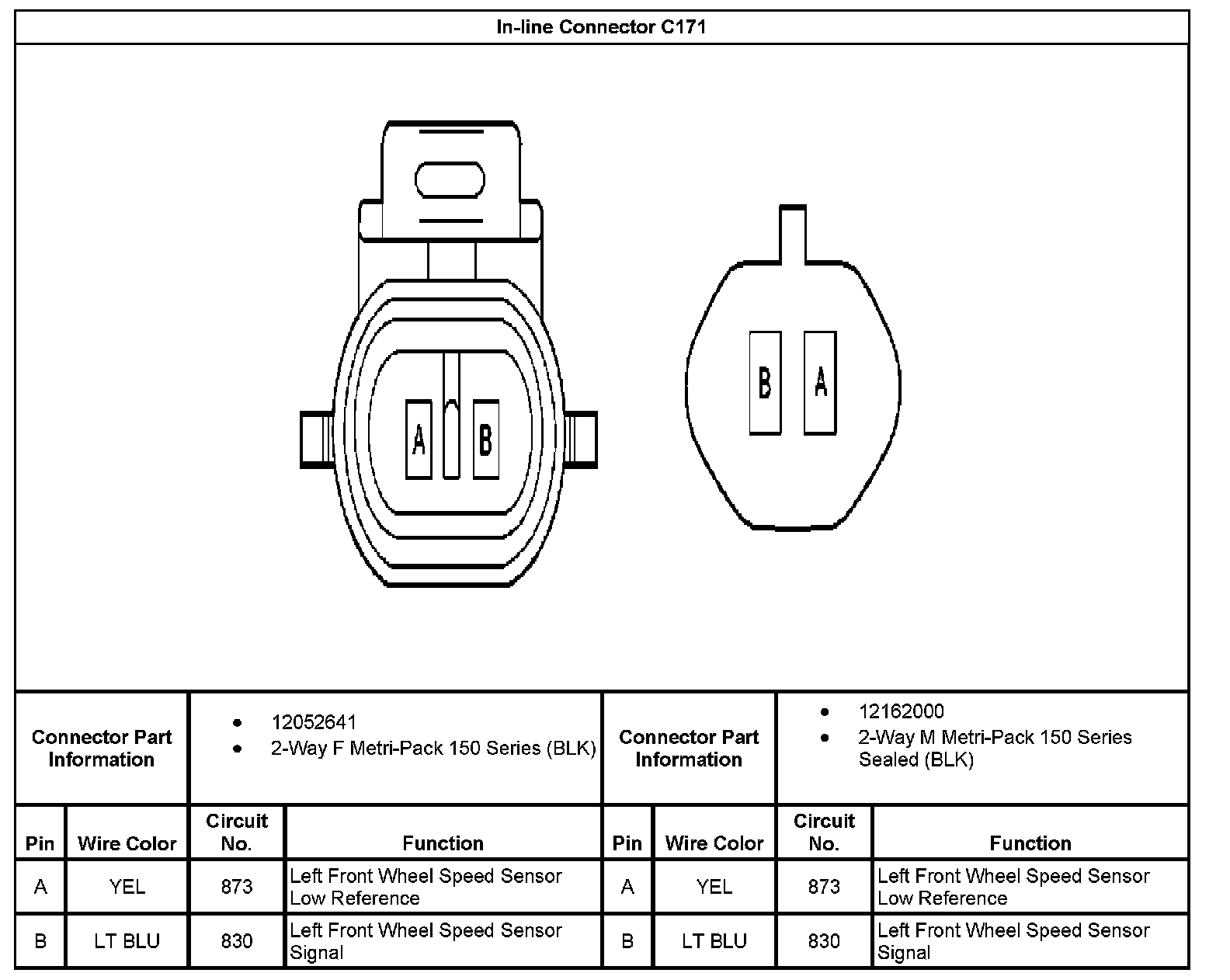

In - line Connector C171:
