Front

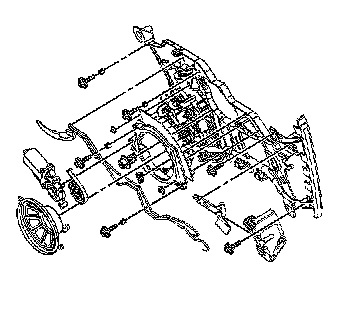

SPEAKER REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Remove the front door trim panel.
2. Remove the front door water deflector.
3. Disconnect the electrical connector.




4. Unsnap the speaker from the lock module.

INSTALLATION PROCEDURE




1. Snap the speaker into the lock module.
2. Connect the electrical connector.
3. Install the front door water deflector.
4. Install the front door trim panel.
