Home
>>
Chevy Truck
>>
2005
>>
TrailBlazer 4WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case Actuator
Transfer Case Actuator

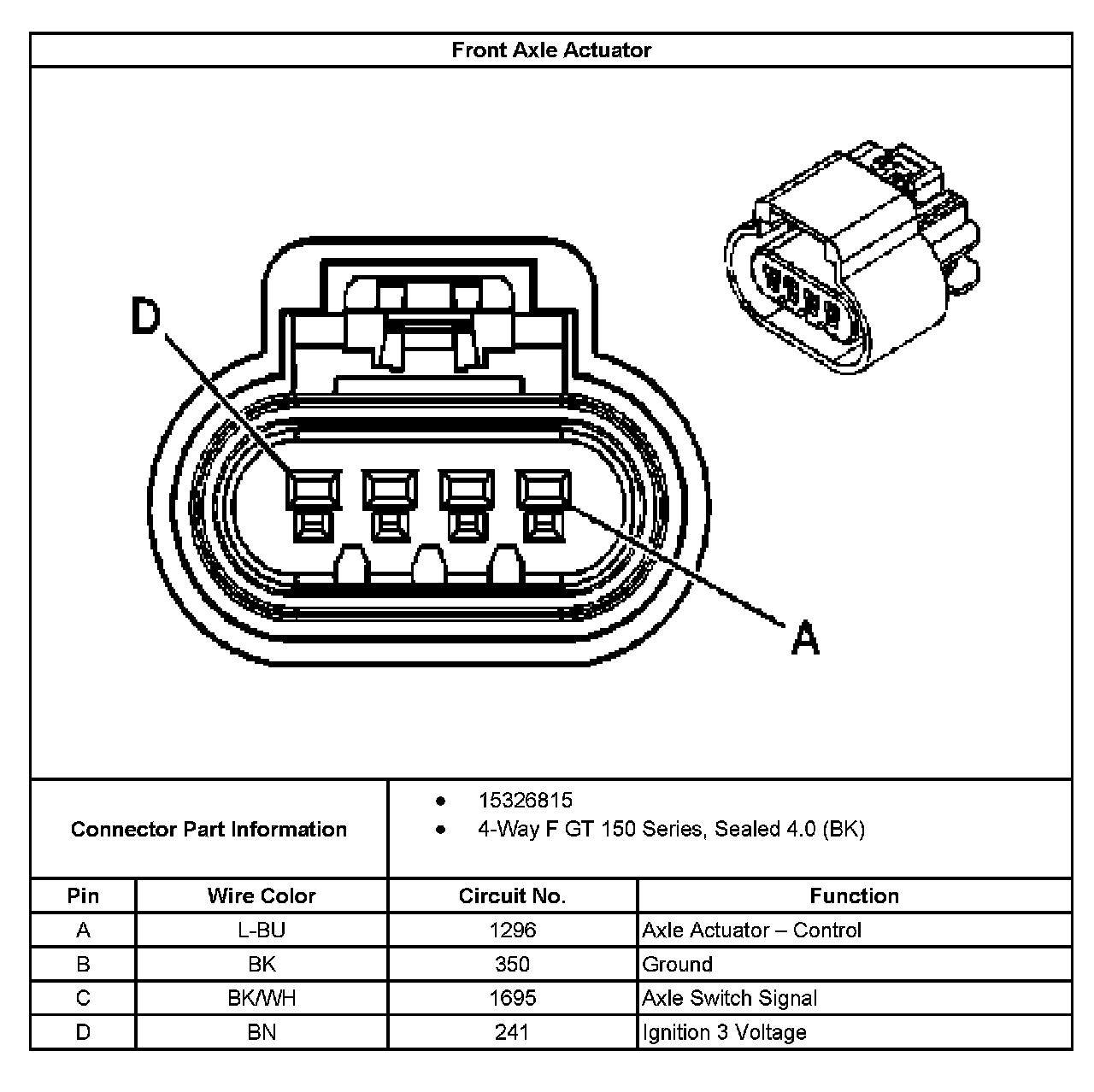

Front Axle Actuator:
