Exhaust Manifold Heat Shield Replacement - Left

Exhaust Manifold Heat Shield Replacement - Left

Removal Procedure

1. Remove the spark plugs.

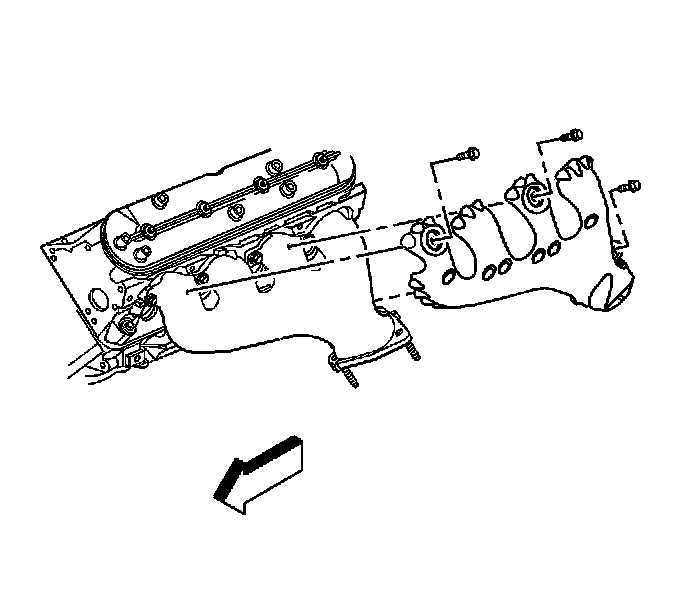

2. Remove the heat shield bolts and the shield from the exhaust manifold.

Installation Procedure





1. Install the heat shield and the bolts to the exhaust manifold.

Tighten
Tighten the bolts to 9 Nm (80 inch lbs.).

2. Install the spark plugs.
