Instruments - Gauges Difficult to Read
Bulletin No.: 04-08-49-028Date: October 29, 2004
TECHNICAL
Subject:
IP Gauges Difficult to Read (Replace IP Cluster)
Models:
2005 Chevrolet TrailBlazer, TrailBlazer EXT
Attention:
This bulletin only applies to vehicles built on or before October 12, 2004 with a white IP cluster background.
Condition
Some customers may comment that the IP gauges are difficult to read during certain sunlight conditions usually at dusk or dawn.
Cause
The white background of the IP cluster may reflect sunlight resulting in the gauges being difficult to read.
Correction
Important:
These new clusters will have a black background, please make sure the customer is aware of this before replacing the cluster.
Replace the IP cluster using the part numbers listed below. Refer to Instrument Panel Cluster (IPC) Replacement procedure in the Instrument Panel and Console sub-section of the Service Manual.

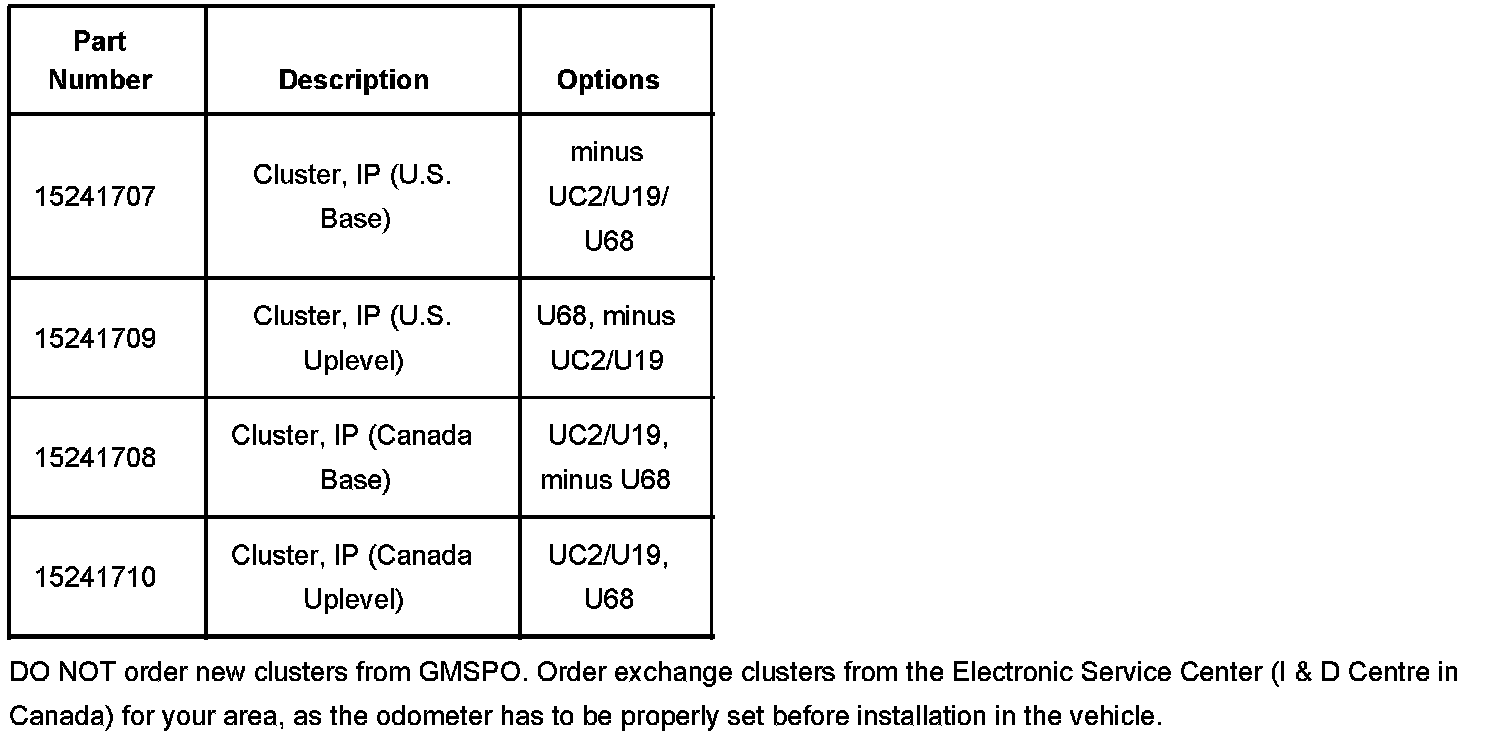

Parts Information

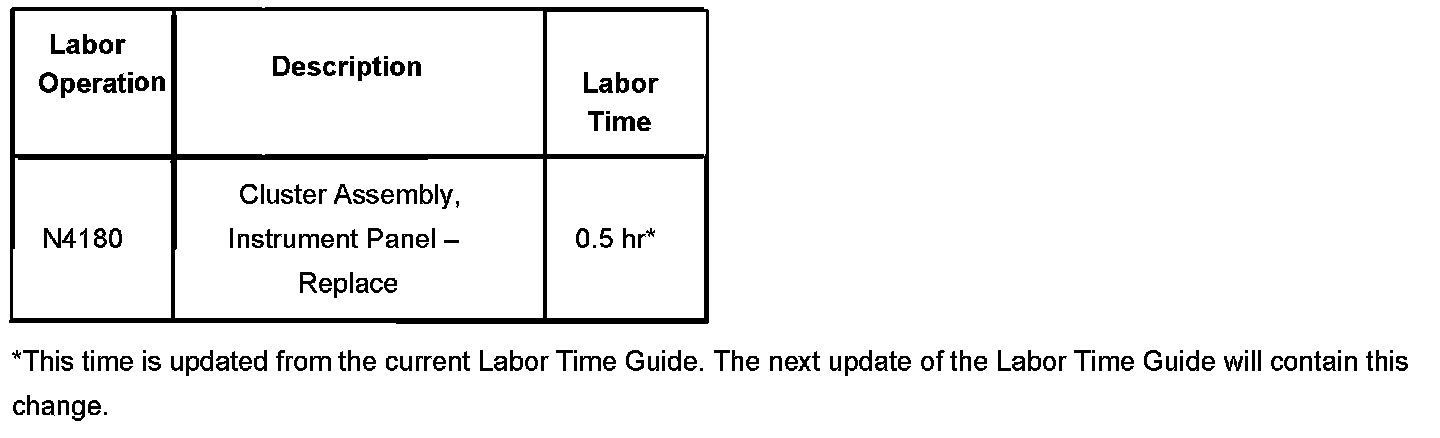

Warranty Information
For vehicles repaired under warranty, use the table.
Disclaimer
