Rear

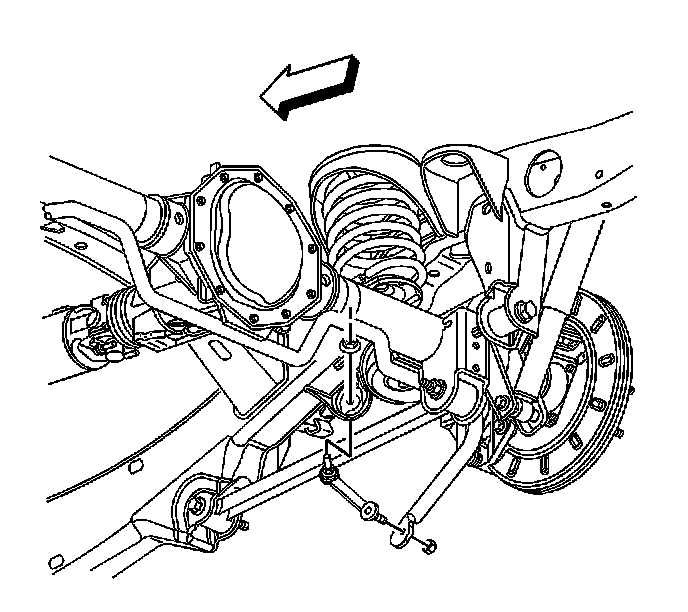

Stabilizer Shaft Link Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.





2. Remove the stabilizer shaft link retaining nuts.
3. Disconnect the stabilizer shaft link from the frame.

Notice: Do not pry on the stabilizer shaft link. Use care when removing or installing the stabilizer shaft link in order to avoid tearing or puncturing the stabilizer shaft link boot. Damage to the stabilizer shaft link boot will lead to damage to the stabilizer shaft link.

4. Disconnect the stabilizer shaft link from the stabilizer shaft and remove the stabilizer shaft link.

Installation Procedure





1. Connect the stabilizer shaft link to the stabilizer shaft and to the frame.
2. Install the stabilizer shaft link retaining nuts.

Tighten
Tighten the stabilizer shaft nuts to 100 Nm (74 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

3. Lower the vehicle.
