Front

Stabilizer Shaft Link Replacement

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.

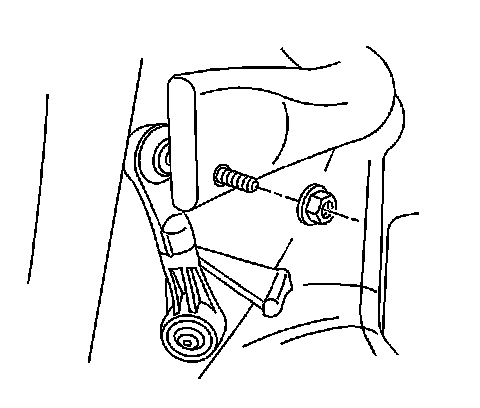

2. Remove the stabilizer shaft link to stabilizer shaft retaining nut.





3. Remove the stabilizer shaft link to lower control arm retaining nut.
4. Remove the stabilizer shaft link.

Notice: Do not pry on the stabilizer shaft link. Use care when removing or installing the stabilizer shaft link in order to avoid tearing or puncturing the stabilizer shaft link boot. Damage to the stabilizer shaft link boot will lead to damage to the stabilizer shaft link.


Installation Procedure





1. Install the stabilizer shaft link to the lower control arm.
2. Install the stabilizer shaft link to lower control arm retaining nut.





3. Install the stabilizer shaft link to the stabilizer shaft.
4. Install the stabilizer shaft link to stabilizer shaft retaining nut.

Tighten
Tighten the nuts to 145 Nm (107 ft. lbs.).

Notice: Refer to Fastener in Service Precautions.

5. Lower the vehicle.
