SIR Disabling and Enabling Zone 2

SIR DISABLING AND ENABLING ZONE 2

DISABLING PROCEDURE
1. Turn the steering wheel until the vehicle wheels are pointing straight ahead.

IMPORTANT: Refer to SIR Disabling and Enabling Zones before disabling the SIR system.

2. Turn OFF the ignition.
3. Remove the key from the ignition.

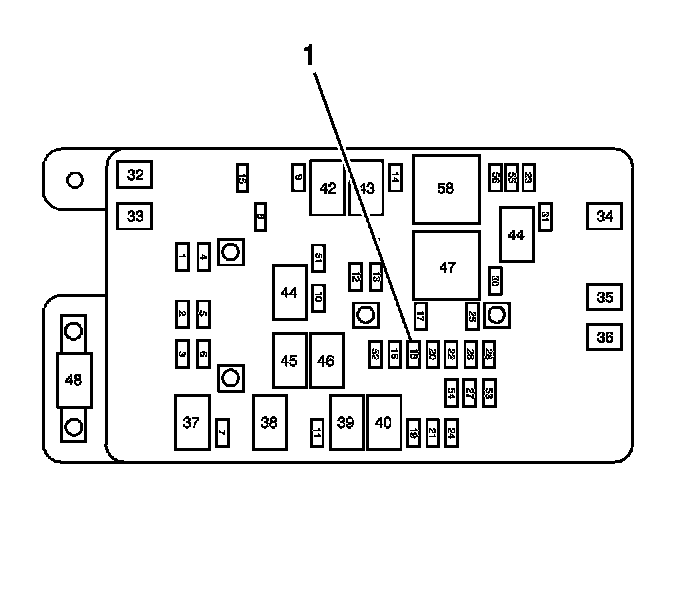

4. Remove the SIR fuse from the fuse block (1) located in the underhood fuse block.

IMPORTANT: With the SIR fuse removed and the ignition ON, the AIR BAG indicator illuminates. This is normal operation and does not indicate an SIR system malfunction.

5. Remove the left door trim panel.




6. Remove the connector position assurance (CPA) (3) from the side impact sensor yellow 2-way connector (5) located near the middle of the door.
7. Disconnect the side impact sensor yellow 2-way connector (5) located near the middle of the door.

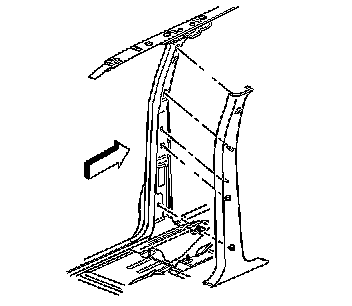

8. Remove the garnish molding.
9. Remove the CPA from the inflatable restraint roof rail module - left yellow 2-way inline connector.
10. Disconnect the inflatable restraint roof rail module - left yellow 2-way inline connector from the vehicle harness connector.

ENABLING PROCEDURE
1. Remove the key from the ignition.




2. Connect the inflatable restraint roof rail module - left yellow 2-way inline connector and install the CPA.
3. Install the garnish molding.




4. Connect the side impact sensor yellow 2-way connector (5) located near the middle of the door.
5. Install the CPA (3) to the side impact sensor yellow 2-way connector (5) located near the middle of the door.
6. Install the left door trim panel.




7. Install the SIR fuse to the fuse block (1) located in the underhood fuse block.
8. Staying well away from all air bags, turn ON the ignition, with the engine OFF.
1. The AIR BAG indicator will flash 7 times.
2. The AIR BAG indicator will then turn OFF.
9. Perform the Diagnostic System Check - Vehicle in Vehicle DTC Information, if the AIR BAG indicator does not operate as described.
