Chevy Truck
>>
2005
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Splice/Splice Packs By Number
>>
S300 - S399
>>
S312
S312

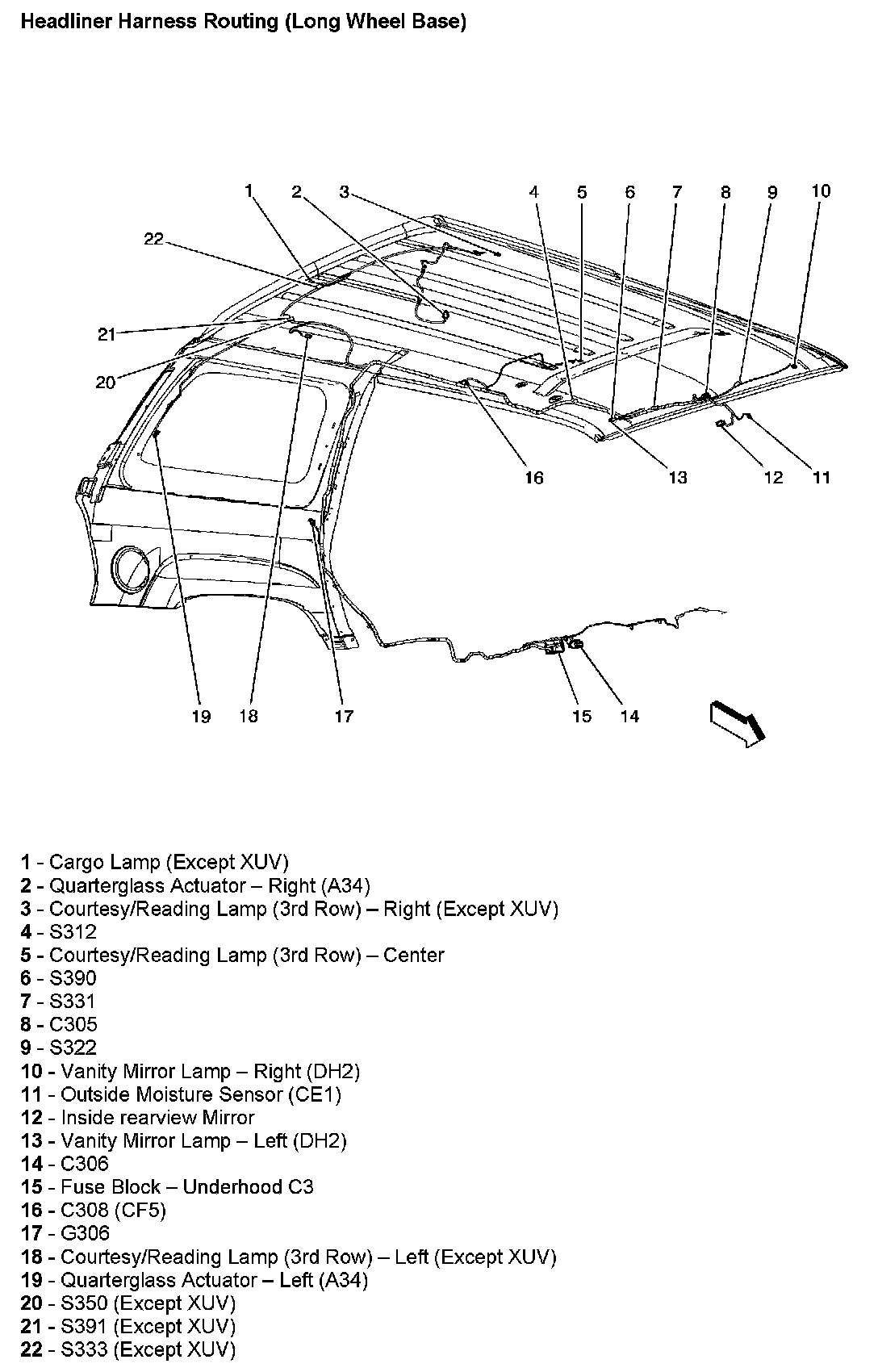

Headliner Harness Routing (Long Wheel Base):
