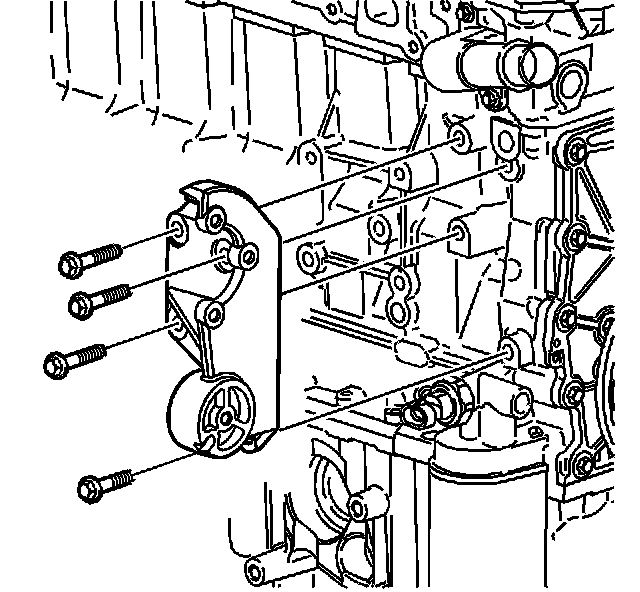

88. Power Steering Pump Bracket Installation



Power Steering Pump Bracket Installation





1. Install the power steering pump bracket.
2. Install the power steering pump bracket bolts.
Tighten the power steering pump bracket bolts to 50 Nm (37 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.
