Oil Pan: Service and Repair

OIL PAN REPLACEMENT

Removal Procedure

1. Disconnect the negative battery cable.

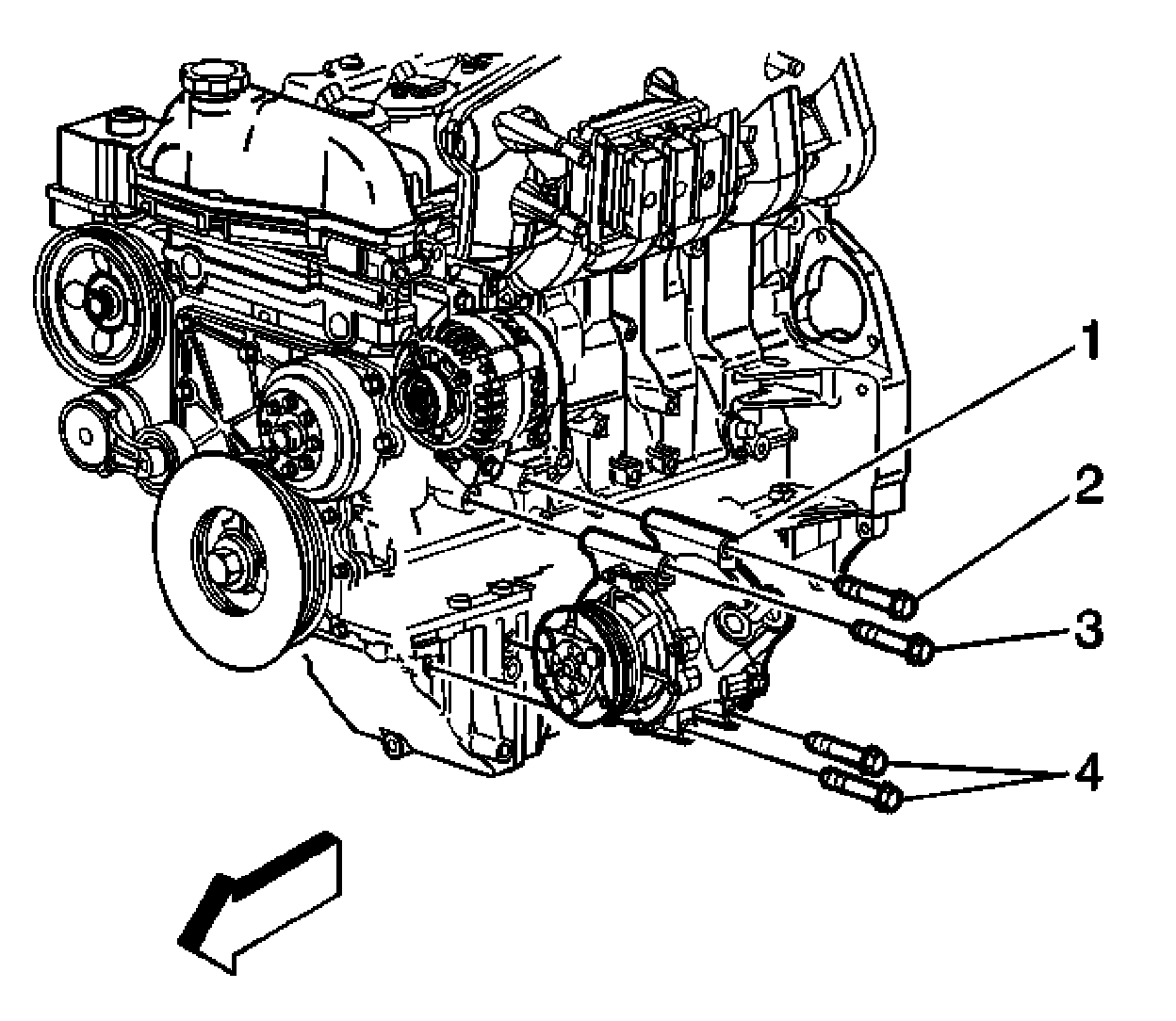

2. Remove the A/C compressor bottom bolts (4) and loosen the top bolts (2, 3).
3. Remove the oil level indicator and tube. Service and Repair
4. Remove the stabilizer shaft. Service and Repair






5. Remove the front differential and secure to the frame.

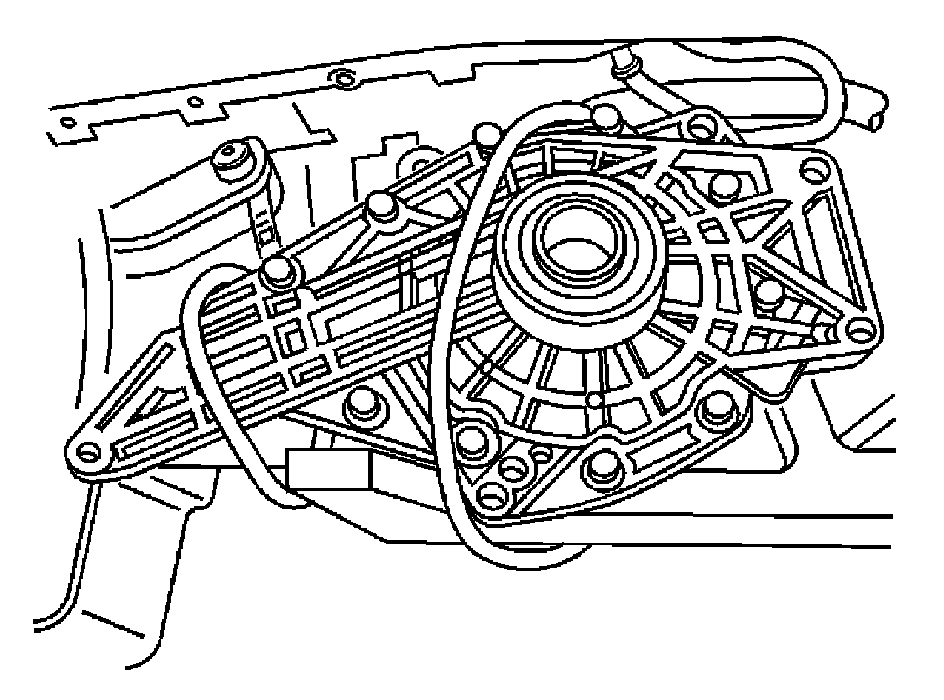

6. Remove the front drive axle intermediate shaft bearing assembly.
With 4WD
With AWD
7. Drain the engine oil.

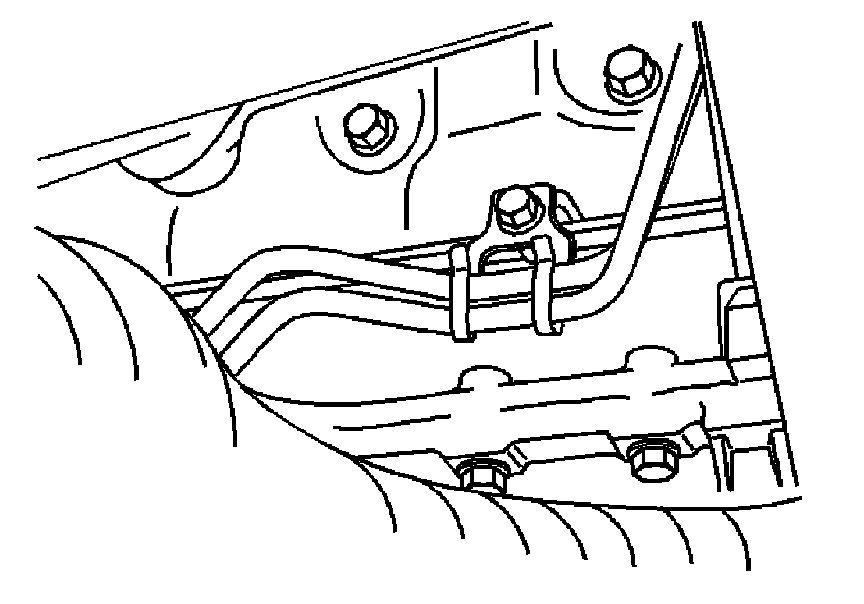

8. Unclip the transmission cooler lines from the engine block.
9. Remove 4 transmission bell housing bolts that are attached to the oil pan.

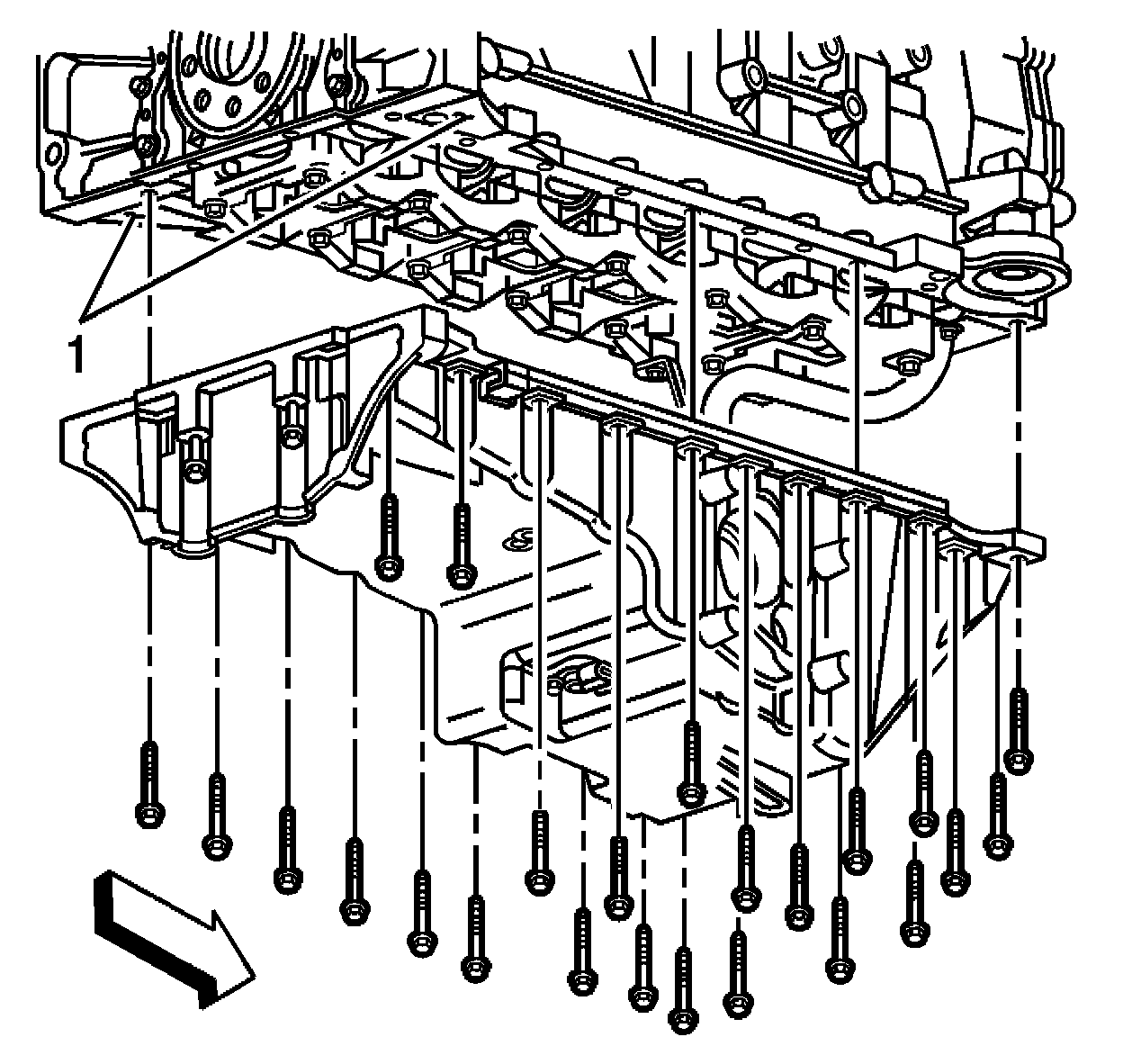

10. Remove the remaining oil pan bolts.
11. Place 2 oil pan bolts in the jack screws on the oil pan and tighten evenly to release the oil pan from the engine (1).
12. Clean and inspect the oil pan.

Installation Procedure






Important: The oil pan must be installed within 10 minutes from when sealer was applied.

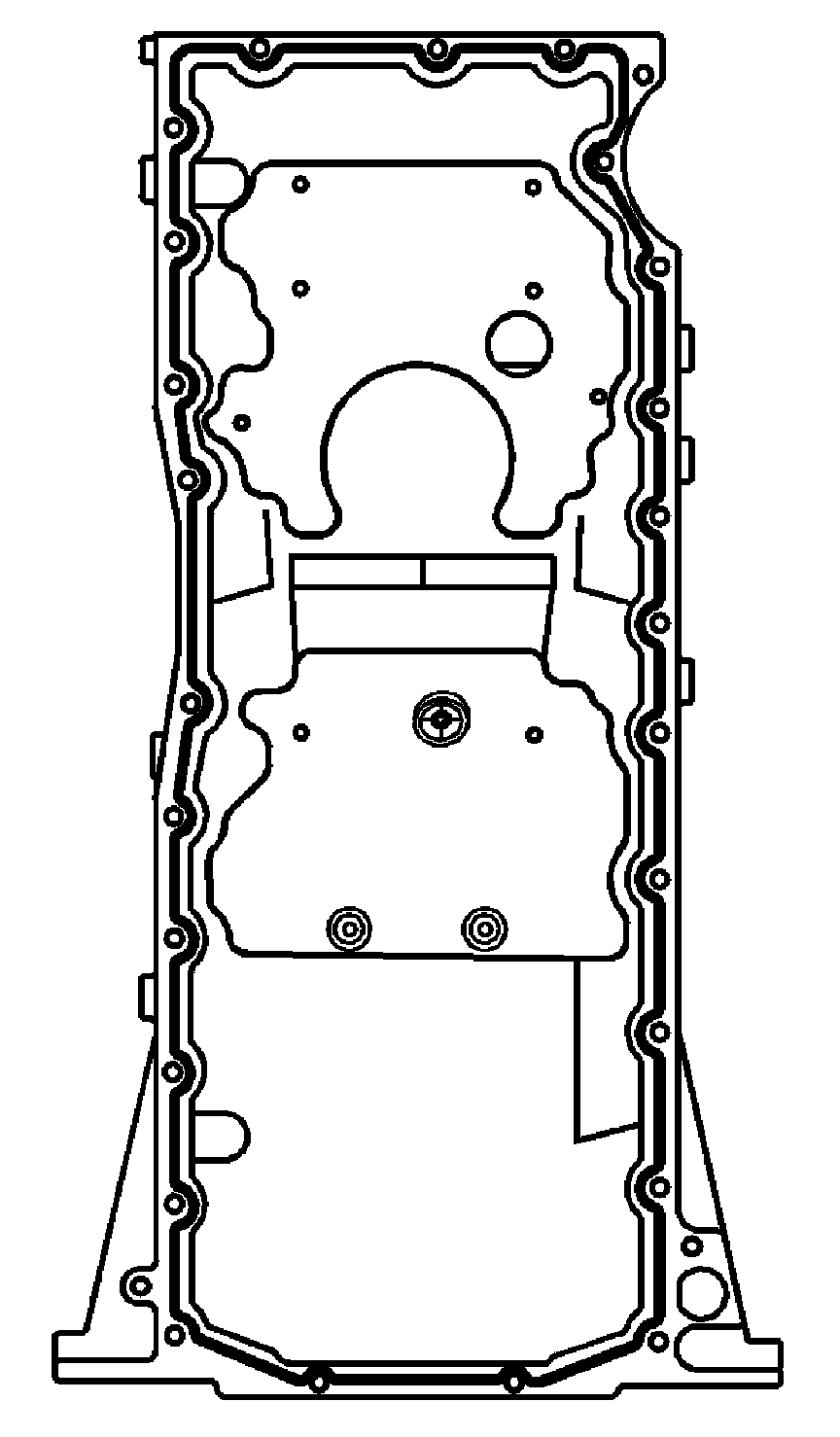

1. Apply a 3 mm (0.12 in) bead of sealer to the block, rather than the oil pan.

Important: When you install the oil pan, it could be shifted front or back a little which could cause a transmission alignment problem. The back of the oil pan needs to be flush with the block.

2. Install the oil pan, maneuvering the oil pan to clear the oil pump and screen assembly.

3. Install the oil pan bolts.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

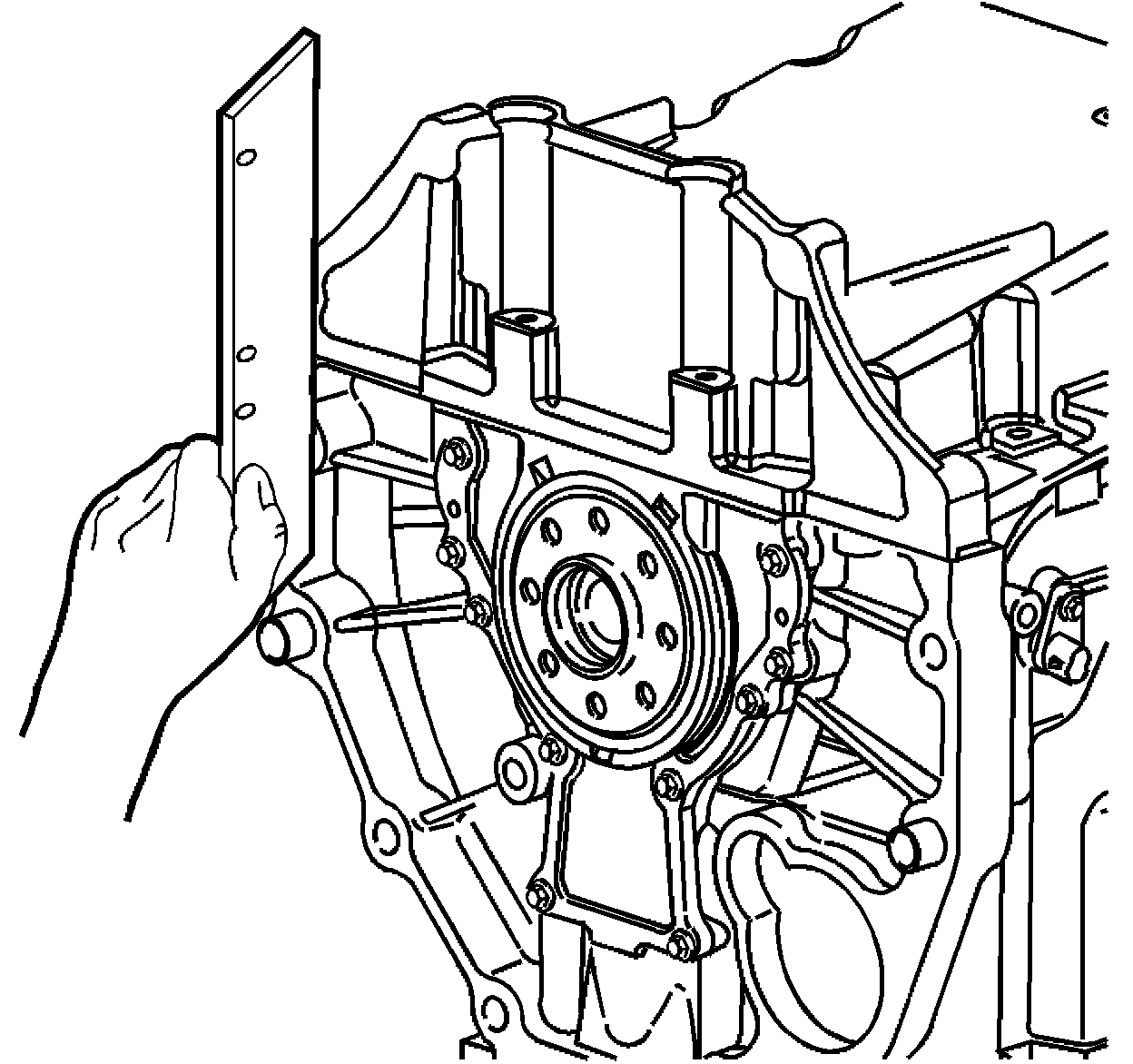

4. Inspect the oil pan alignment. Use a straight edge on the back of the block and the oil pan transmission mounting surface.

Tighten
Oil pan side bolts to 25 Nm (18 lb ft).
Oil pan end bolts to 10 Nm (89 lb in).

5. Install the 4 transmission bell housing bolts that attach to the oil pan.

Tighten
Bolts to 47 Nm (35 lb ft).






6. Clip transmission cooler lines to the engine block.
7. Install the front drive axle intermediate shaft bearing assembly.
8. Install the oil drain plug and filter.






9. Install the front differential to the engine.
10. Install the stabilizer shaft.






11. Install the A/C compressor 2 bottom bolts (4).

Tighten
All 4 bolts (2, 3, 4) to 50 Nm (37 lb ft).

12. Install the oil level indicator and tube.
13. Connect the negative battery cable.

Important: Inspect the engine for oil leaks in order to ensure all sealing surfaces are sealed.

14. Fill the engine with oil.
